CT3206W
CT3206W Series
Active CatalogStacking Banana Plug Set
Do It Yourself, 4 mm Stacking Sheathed Banana Plugs, Solderless - with Allen Wrench, Black and Red Pair
$13.001 Year Warranty
Overview

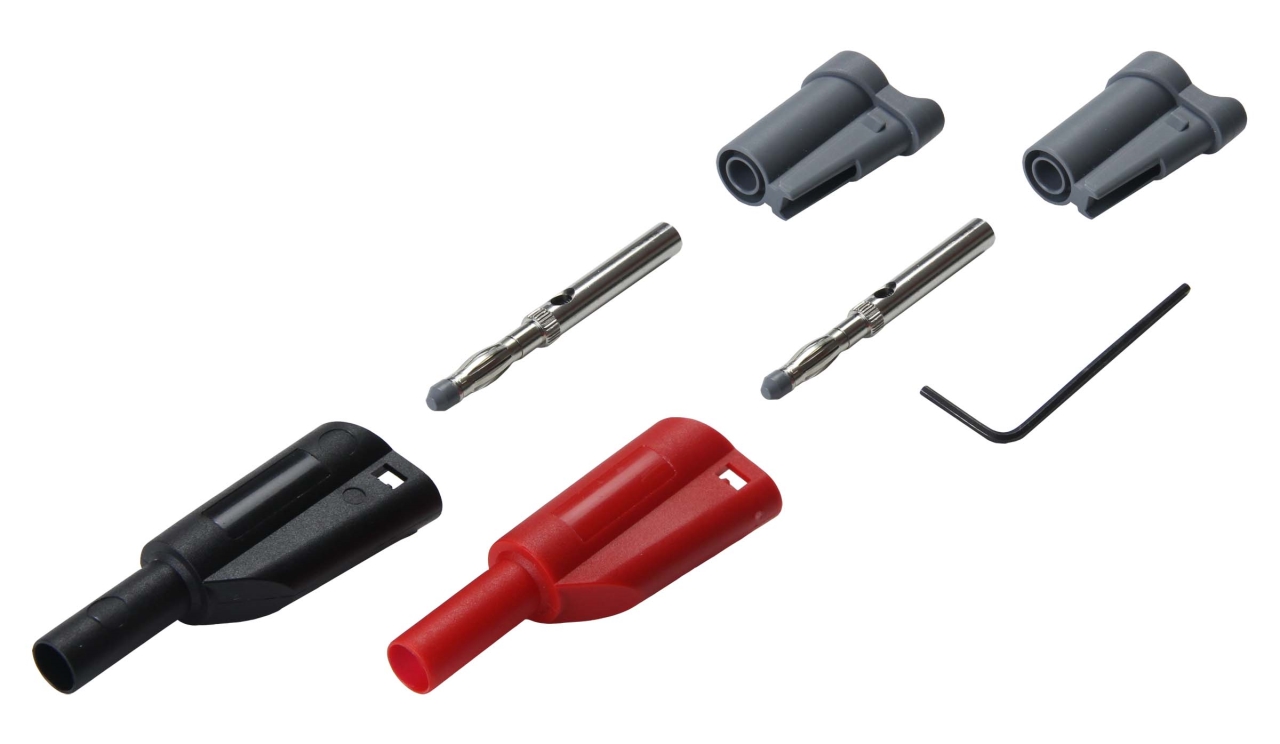

Pair of (R & B) 4 mm Do-it-Yourself (DIY) stacking sheathed banana plugs allow you to build your own test leads and meet the latest safety standards. Solderless set screw wire connection and snap together housing for easy field assembly.
* IEC rating when using equally rated lead wire.
- Convenient black and red package pair
- Package includes 1.5 mm allen wrench
- *IEC Voltage rating - 600 V CAT IV / 1000 V CAT III
- Three (3) piece assembly
Kit Contents
Specifications
- Type
- Sheathed
- Rated Voltage
- 1000 V CAT III / 600 V CAT IV
- Color
- Black/Red Pair
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
