CT3204
CT3204 Series
Active CatalogRight Angle Banana Plug Set

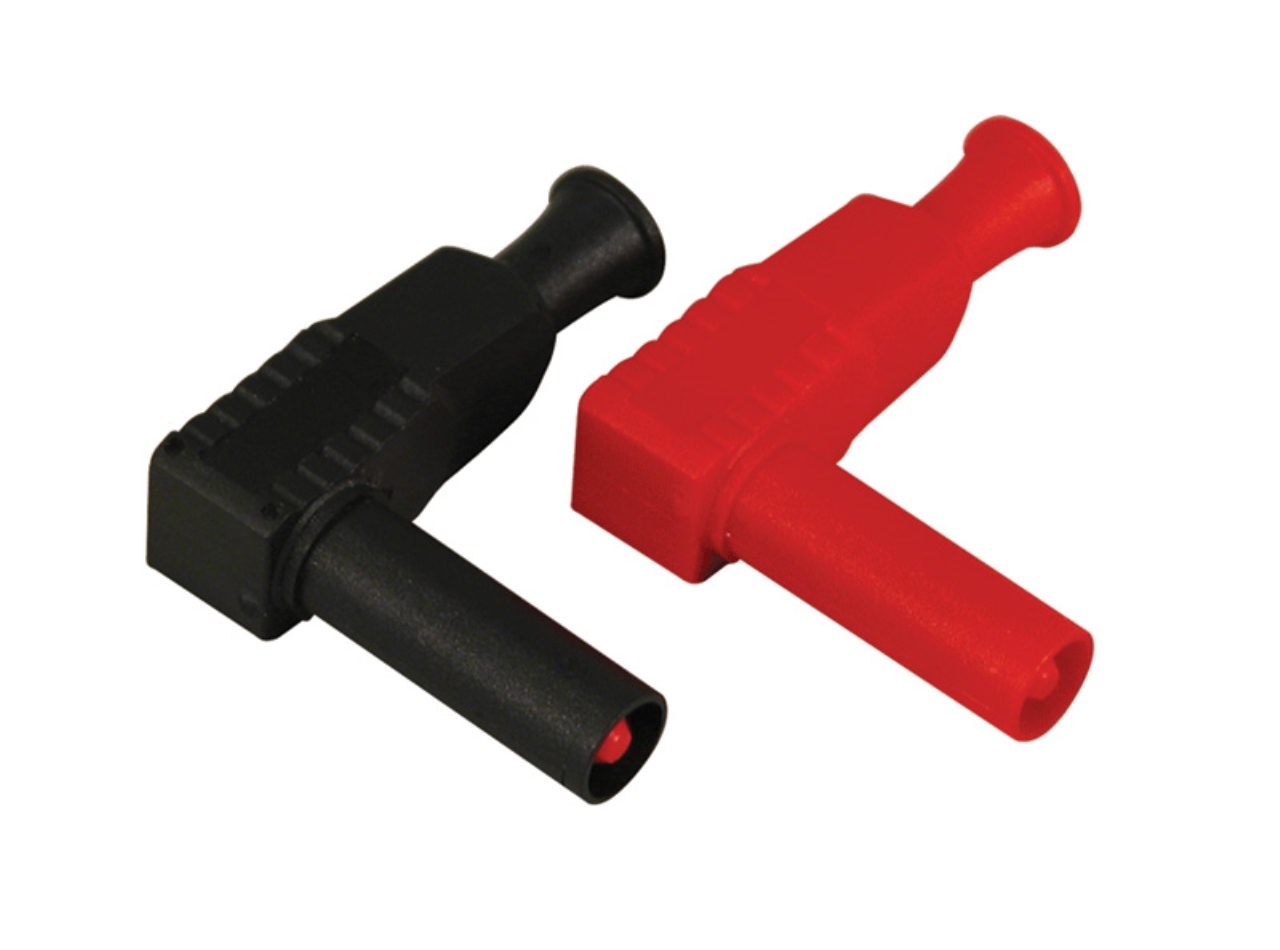

Do It Yourself, 4 mm Right-Angle Sheathed Banana Plugs, Solderless - Black and Red Pair
$10.001 Year Warranty
Overview
Pair of (R & B) 4 mm Do-it-Yourself (DIY) right-angle, sheathed, banana plugs allows one to build their own test leads that meet the latest safety standards. Solderless set screw wire connection and snap together housing allows for easy field assembly.
* IEC rating when using equally rated lead wire.
- Convenient black and red packaged pair
- *IEC Voltage rating - 1000 V CAT III
- Three (3) piece assembly
- Requires 1.5 mm allen wrench for assembly
Kit Contents
Specifications
- Type
- Sheathed
- Rated Voltage
- 1000 V CAT III
- Color
- Black/Red Pair
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 20
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
