CT3203-6
CT3203 Series
Active CatalogRight Angle Banana Plug

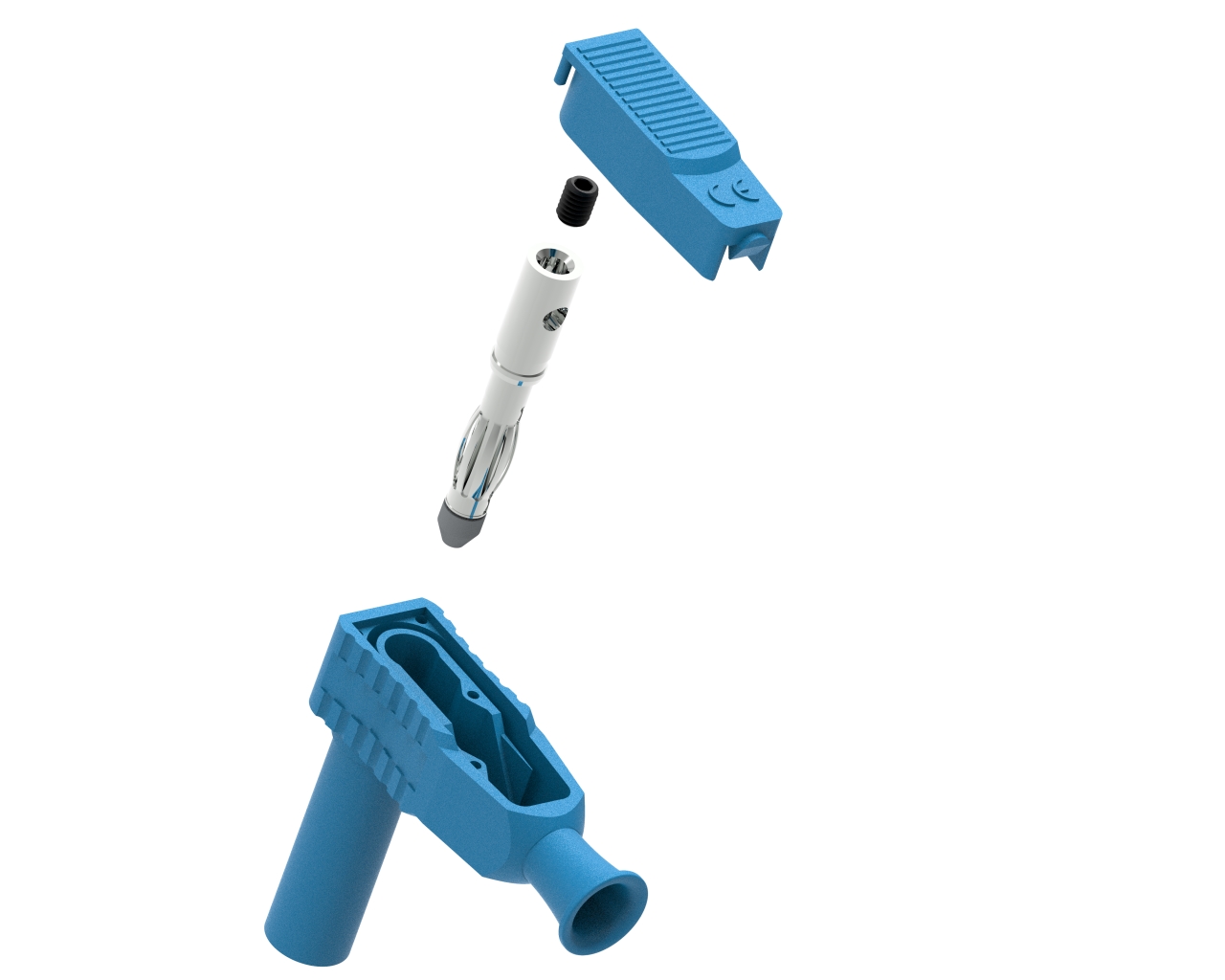

Do It Yourself, 4 mm Right-Angle Sheathed Banana Plug, Solderless - Blue
$5.001 Year Warranty
Where to Buy
Overview
Individual, fully insulated 4 mm Do-it-Yourself (DIY) fixed sheathed right-angle banana plug allows you to build your own test leads that meet the latest safety standards. Both solder and solderless versions with easy snap together assembly.
CT3203-# - Solderless version
- Set screw connection
Requires 1.5 mm allen wrench for assembly, CT2919
CT3203-S-# - Solder version
- Quick solder assembly
Features:
- IEC Voltage rating - 1000 V CAT III (*when using equally rated lead wire)
- Insulated tip on plug
- Three (3) piece assembly
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3203-0 | DIY 4mm Shth RA Plug, Solderless - Black | $5.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Black | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-2 | DIY 4mm Shth RA Plug, Solderless - Red | $5.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Red | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-4 | DIY 4mm Shth RA Plug, Solderless - Yellow | $5.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-5 | DIY 4mm Shth RA Plug, Solderless - Green | $5.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Green | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-6 | DIY 4mm Shth RA Plug, Solderless - Blue | $5.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Blue | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-9 | DIY 4mm Shth RA Plug, Solderless - White | $5.50 | Special Order | 1 Year | Sheathed | 1000 V CAT III | White | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-S-0 | DIY 4mm Shth RA Plug, Solder - Black | $4.80 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Black | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-S-2 | DIY 4mm Shth RA Plug, Solder - Red | $4.80 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Red | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-S-4 | DIY 4mm Shth RA Plug, Solder - Yellow | $4.80 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-S-5 | DIY 4mm Shth RA Plug, Solder - Green | $4.80 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Green | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-S-6 | DIY 4mm Shth RA Plug, Solder - Blue | $4.80 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Blue | Brass, Nickel Plated | Polypropylene | 20 | EA |
 |
CT3203-S-9 | DIY 4mm Shth RA Plug, Solder - White | $5.30 | Special Order | 1 Year | Sheathed | 1000 V CAT III | White | Brass, Nickel Plated | Polypropylene | 20 | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 1000 V CAT III
- Color
- Blue
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 20
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
