Product resources
CT3202W
CT3202W Series

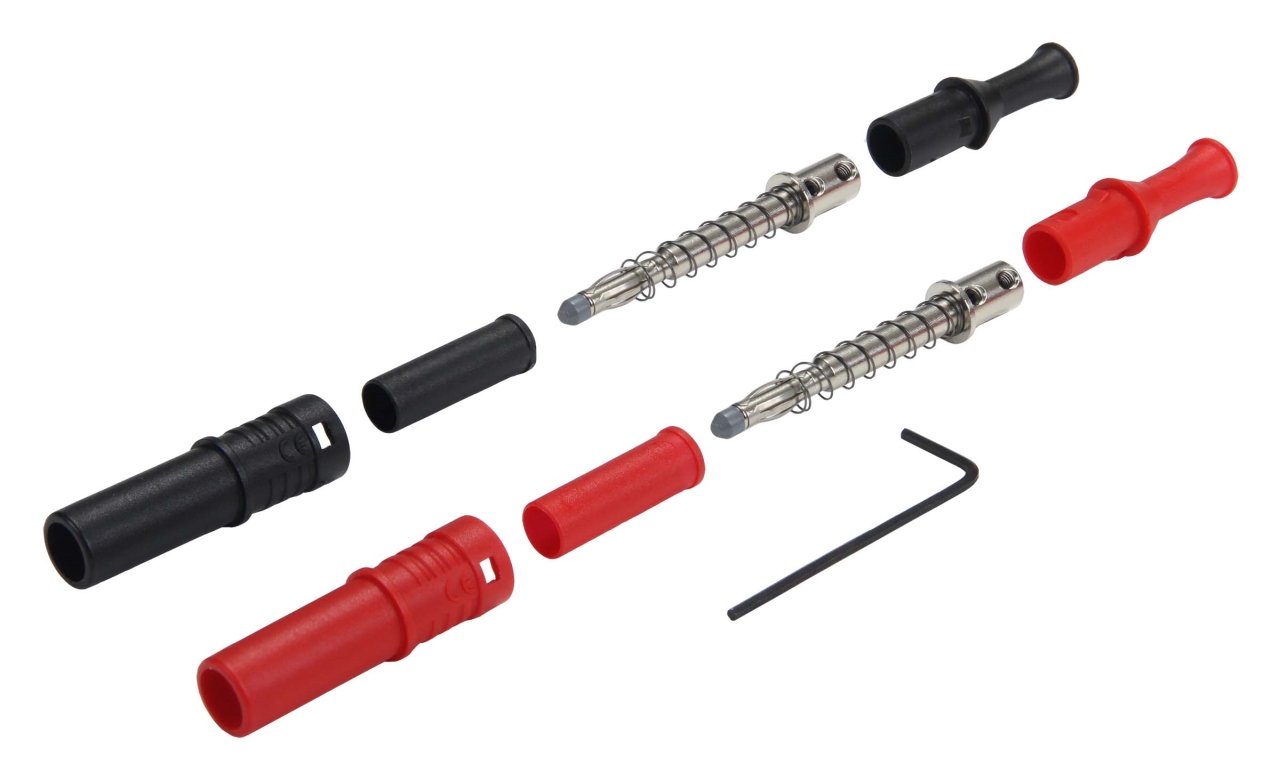

Active CatalogRetractable Sheathed Banana Plug Set
Do It Yourself, 4 mm Retractable Sheathed Banana Plugs, Solderless with Allen Wrench, Black and Red Pair
$18.501 Year Warranty
Overview
Pair of (R & B) 4 mm Do-it-Yourself (DIY) straight, retractable sleeve banana plugs allows you to build your own test leads that meet the latest international safety standards. Solderless set screw wire connection and snap together housing for easy field assembly.
*IEC rated when using equally rated test lead wire.
- Convenient black and red packaged pair
- Includes 1.5 mm Allen wrench
- *IEC voltage rating - 600 V CAT II
- Five (5) piece snap-together assembly
Kit Contents
Specifications
- Type
- Sheathed
- Rated Voltage
- 600 V CAT II
- Color
- Black/Red Pair
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
