CT3202
CT3202 Series
Active CatalogRetractable Sheathed Banana Plug Set
Do It Yourself, 4 mm Retractable Sheathed Banana Plugs, Solderless - Black and Red Pair
$17.501 Year Warranty
Overview
Pair (R & B) 4 mm Do-it-Yourself (DIY) straight, retractable sleeve banana plugs allows you to build your own test leads that meet the latest international safety standards. Solderless set screw wire connection and snap together housing for easy field assembly.
*IEC rated when using equally rated test lead wire.
- Convenient black and red packaged pair
- *IEC voltage rating - 600 V CAT II

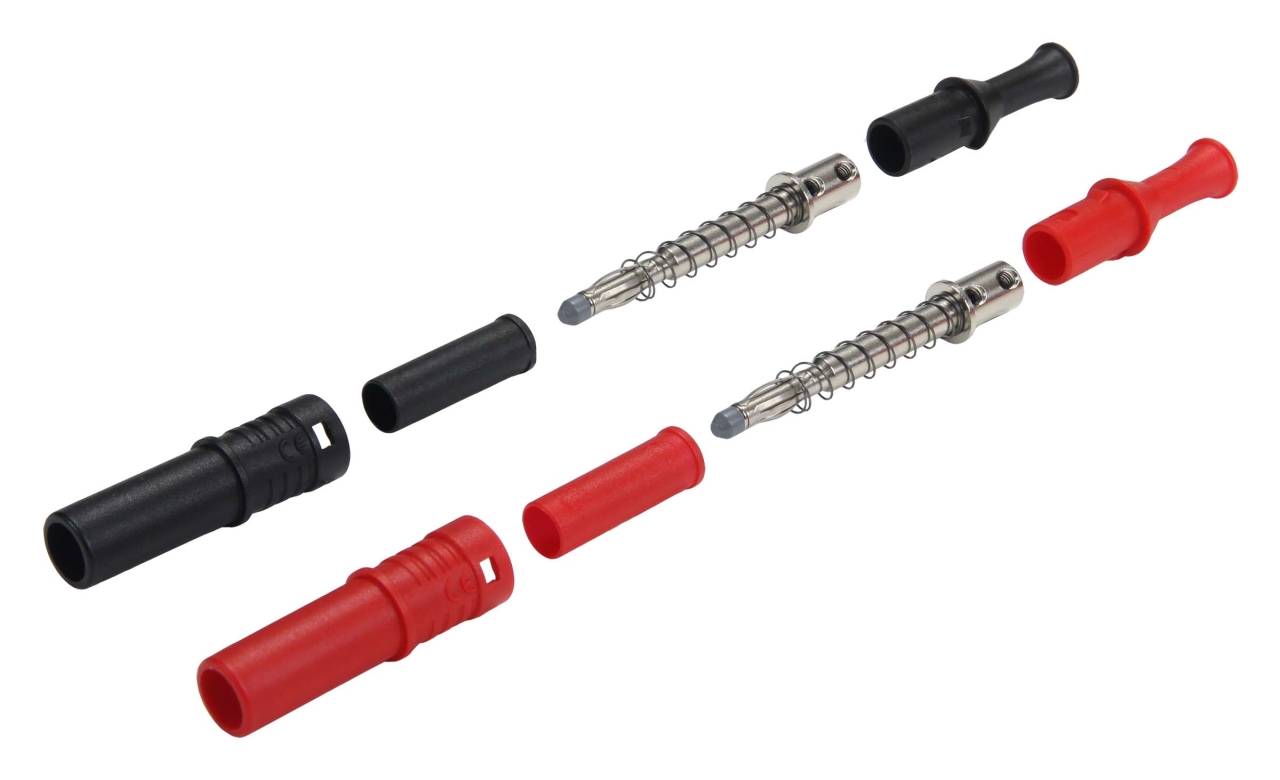

- Five (5) piece snap-together assembly
- Requires 1.5 mm Allen wrench for assembly
Kit Contents
Specifications
- Type
- Sheathed
- Rated Voltage
- 600 V CAT II
- Color
- Black/Red Pair
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
