CT3201-4
CT3201 Series
Active CatalogRetractable Sleeve Banana Plug
Do It Yourself, 4 mm Retractable Sheathed Banana Plug, Solderless - Yellow
$8.751 Year Warranty
Where to Buy
Overview
Individual, fully insulated 4 mm Do-it-Yourself (DIY) retractable sleeve banana plug allows you to build your own test leads that meet the latest international safety standards. Retractable sleeve offers usability with standard banana jacks while improving protection over unprotected plugs. Both solder and solderless versions with easy snap together assembly.
CT3201-# - Solderless version
- Dual set screw connection
Requires 1.5 mm allen wrench for assembly, CT2919
CT3201-S-# - Solder version
- Quick solder assembly
Features:
- IEC Voltage rating - 600 V CAT II (*when using equally rated test lead wire)
- Insulated tip on plug

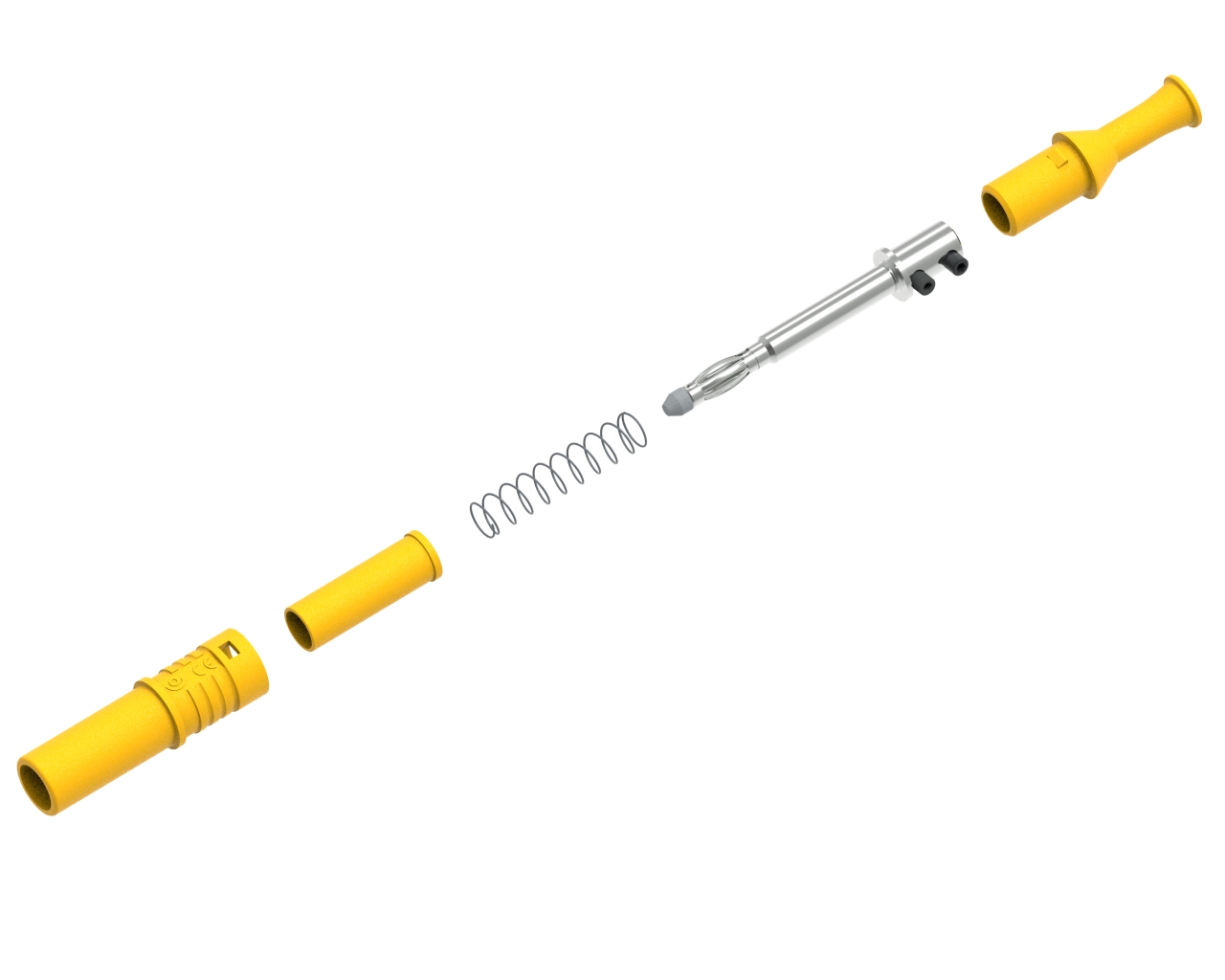

- Five (5) piece assembly
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3201-0 | DIY 4mm Retr Shth Plug, Solderless - Black | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-2 | DIY 4mm Retr Shth Plug, Solderless - Red | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-4 | DIY 4mm Retr Shth Plug, Solderless - Yellow | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-5 | DIY 4mm Retr Shth Plug, Solderless - Green | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-6 | DIY 4mm Retr Shth Plug, Solderless - Blue | $8.75 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-9 | DIY 4mm Retr Shth Plug, Solderless - White | $9.25 | Special Order | 1 Year | Sheathed | 600 V CAT II | White | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-S-0 | DIY 4mm Retr Shth Plug, Solder - Black | $8.60 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-S-2 | DIY 4mm Retr Shth Plug, Solder - Red | $8.60 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-S-4 | DIY 4mm Retr Shth Plug, Solder - Yellow | $8.60 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-S-5 | DIY 4mm Retr Shth Plug, Solder - Green | $8.60 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-S-6 | DIY 4mm Retr Shth Plug, Solder - Blue | $8.60 | Active Catalog | 1 Year | Sheathed | 600 V CAT II | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT3201-S-9 | DIY 4mm Retr Shth Plug, Solder - White | $9.10 | Special Order | 1 Year | Sheathed | 600 V CAT II | White | Brass, Nickel Plated | Polyamide | 36 | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 600 V CAT II
- Color
- Yellow
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
