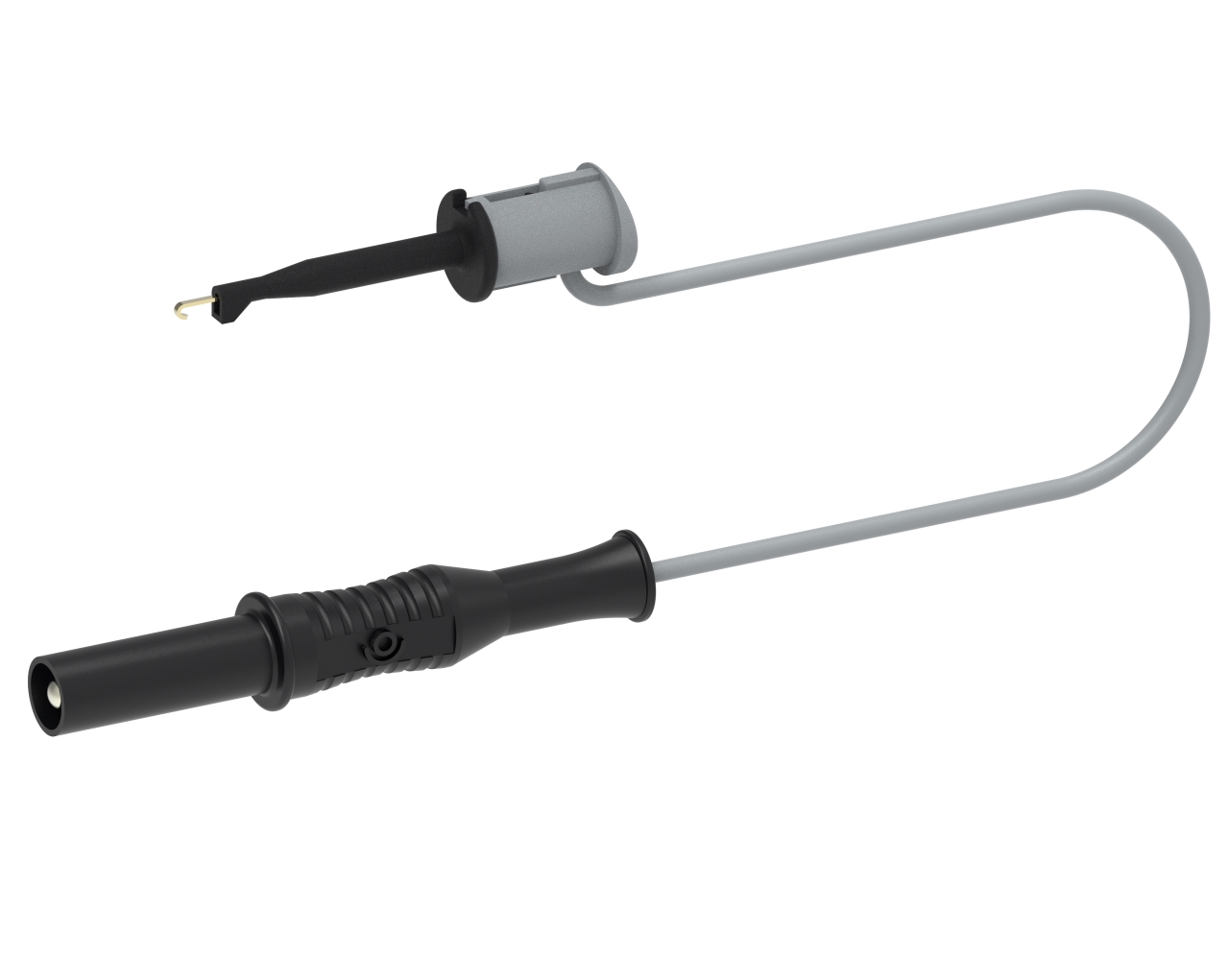

CT3188-10-0
CT3188 Series
Special OrderMiniPro Test Clip to 4mm Sheathed Banana Plug
Lead, MiniPro -ShthP - PVC 0.40, 10cm, Black
$11.001 Year Warranty
Where to Buy
Overview
Connect a MiniPro Test Clip to any standard DMM jack.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Connector B | Length | Color | Rated Voltage | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3188-10-0 | Lead, MiniPro -ShthP - PVC 0.40, 10cm, Black | $11.00 | Special Order | 1 Year | Surface Mount Device (SMD) | Surface Mount Device (SMD) | MiniPro Test Clip | 10 cm | Black | 33 VAC / 70 VDC | 6 A | 21 AWG | EA |
 |
CT3188-10-2 | Lead, MiniPro -ShthP - PVC 0.40, 10cm, Red | $11.00 | Special Order | 1 Year | Surface Mount Device (SMD) | Surface Mount Device (SMD) | MiniPro Test Clip | 10 cm | Red | 33 VAC / 70 VDC | 6 A | 21 AWG | EA |
Specifications
- Type
- Surface Mount Device (SMD)
- Connector A
- Surface Mount Device (SMD)
- Connector B
- MiniPro Test Clip
- Length
- 10 cm
- Color
- Black
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 6 A
- Wire Gauge
- 21 AWG
- Conductor Area
- 0.40 mm²
- Jacket Material
- PVC
- OD
- 2.0mm (0.079")
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
