CT3185
CT3185 Series

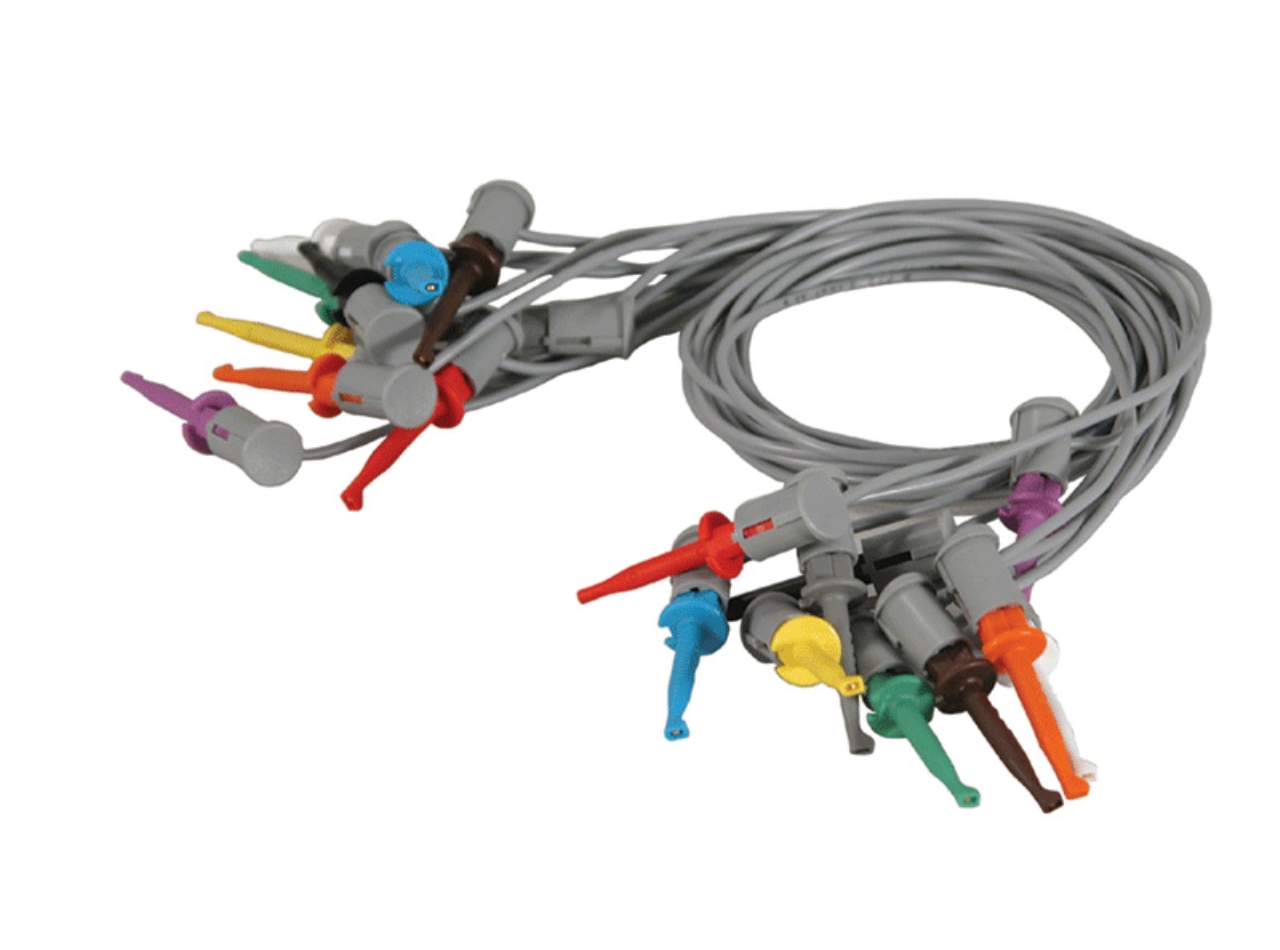

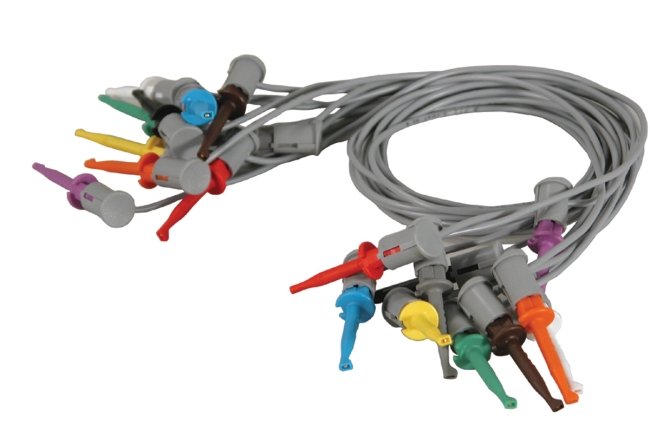

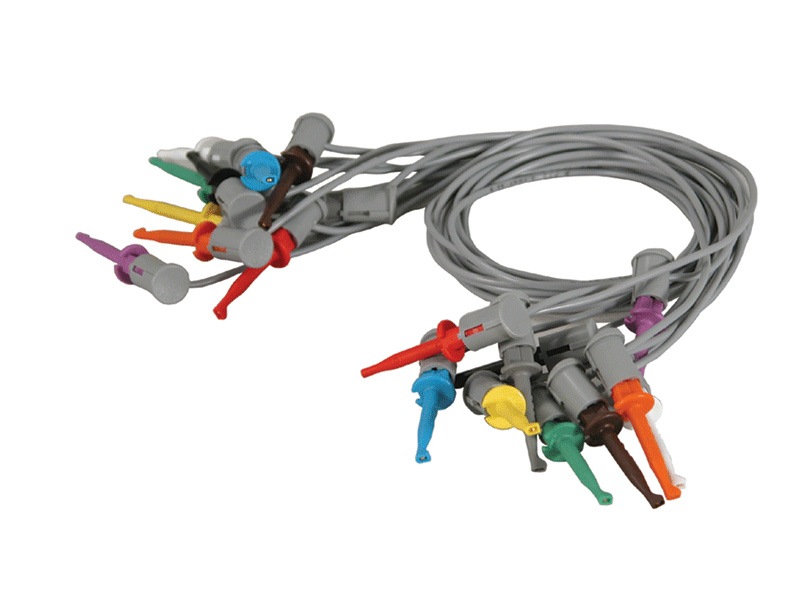

Active CatalogMiniPro Test Clip Lead, Set of 10
Leads, MiniPRO 10pc Kit - PVC 0.40, 50cm, 10 Colors
$45.001 Year Warranty
Where to Buy
Select Variant
Length
Overview
Convenient MiniPro Test Clip Lead Set. 10 leads. Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
Specifications
- Type
- Surface Mount Device (SMD)
- Connector A
- Surface Mount Device (SMD)
- Connector B
- MiniPro Test Clip
- Length
- 50 cm
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 6 A
- Max Voltage
- 150 V
- Wire Gauge
- 21 AWG
- Conductor Area
- 0.40 mm2
- Jacket Material
- PVC
- OD
- 2.0 mm (0.079")
- Operating Temperature
- -20 to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
