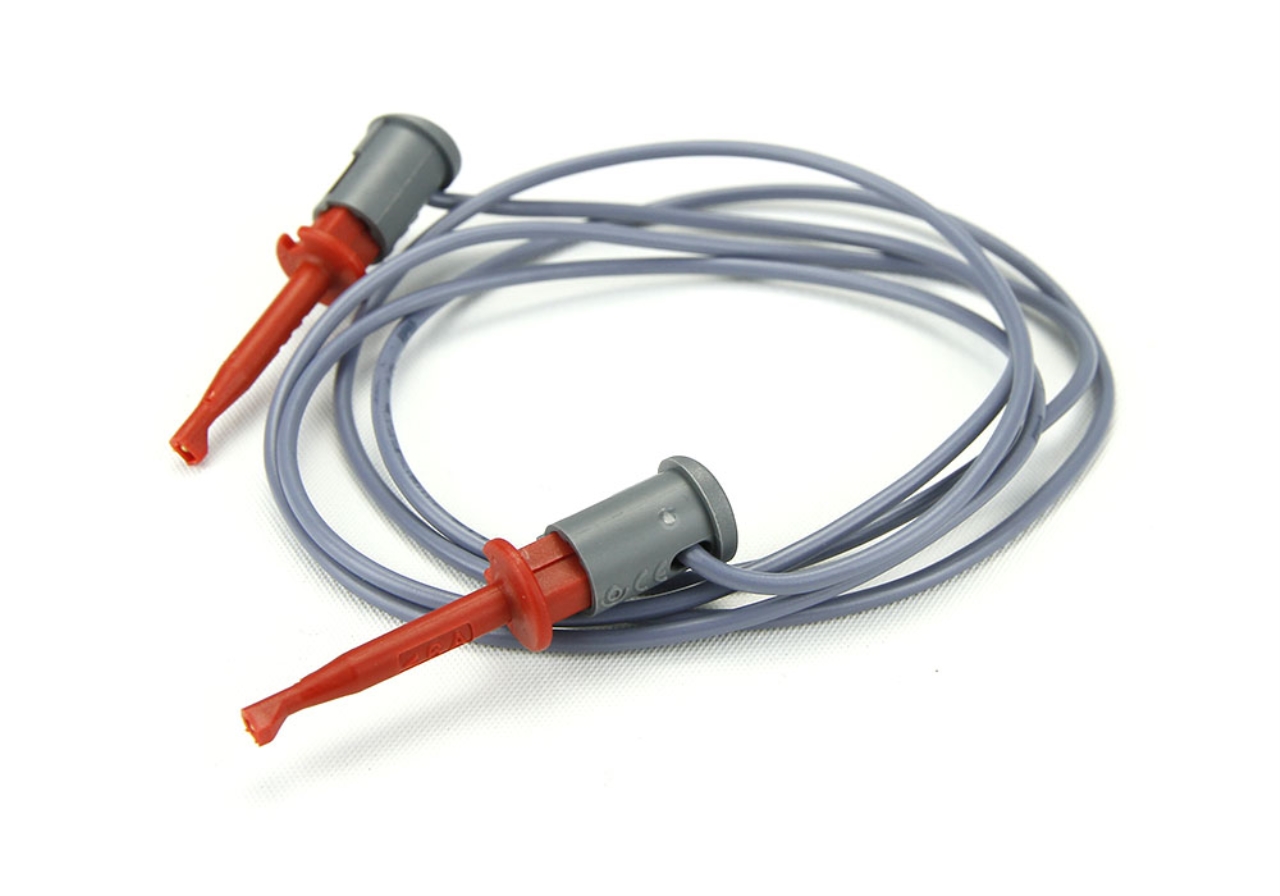

CT3183-100-2
CT3183 Series
Active CatalogMiniPro Test Clip Lead, Each End
Lead, MiniPRO Both Ends - PVC 0.40, 100cm, Red
$9.201 Year Warranty
Where to Buy
Overview
Clip to clip test for interconnection testing.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Connector B | Length | Color | Rated Voltage | Max Current | Max Voltage | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3183-100-0 | Lead, MiniPRO Both Ends - PVC 0.40, 100cm, Black | $9.20 | Active Catalog | 1 Year | Surface Mount Device (SMD) | Surface Mount Device (SMD) | MiniPro Test Clip | 100 cm | Black | 33 VAC / 70 VDC | 6 A | 150 V | 21 AWG | EA |
 |
CT3183-100-2 | Lead, MiniPRO Both Ends - PVC 0.40, 100cm, Red | $9.20 | Active Catalog | 1 Year | Surface Mount Device (SMD) | Surface Mount Device (SMD) | MiniPro Test Clip | 100 cm | Red | 33 VAC / 70 VDC | 6 A | 150 V | 21 AWG | EA |
Specifications
- Type
- Surface Mount Device (SMD)
- Connector A
- Surface Mount Device (SMD)
- Connector B
- MiniPro Test Clip
- Length
- 100 cm
- Color
- Red
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 6 A
- Max Voltage
- 150 V
- Wire Gauge
- 21 AWG
- Conductor Area
- 0.40 mm²
- Jacket Material
- PVC
- OD
- 2.0mm (0.079")
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Datasheet
