CT3180-5
CT3180 Series
Active CatalogMiniPro Test Clip

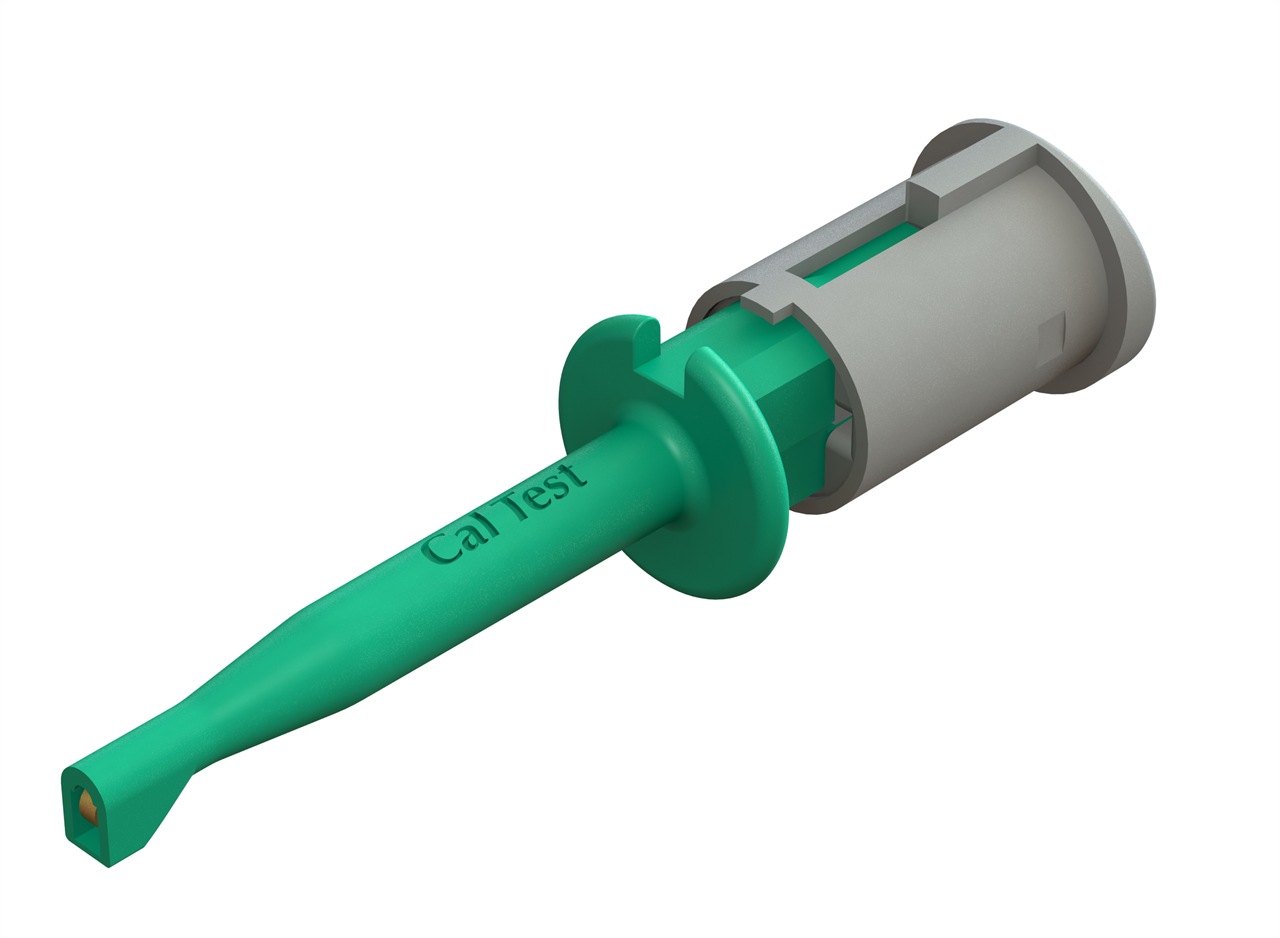

MiniPro Test Clip - Green
$2.851 Year Warranty
Where to Buy
Overview
Do-it-yourself MiniPro hook clip for general purpose electronic testing. With a compact size and easy to solder assembly, the clips are ideally suited for today's tight measurement needs. The clips feature smooth, soft touch actuation with high quality gold plated BeCu equivalent contact hooks and are available in 10 colors for easy circuit identification. The MiniPro clips also feature a snap-lock to securely fix the cap to the body.
- Gold plated BeCu contact hook
- Available in 10 colors
- Fits 21 AWG (0.40 mm2) wire such as CT2883 Series wire
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3180-0 | MiniPro Test Clip - Black | $2.85 | Active Catalog | 1 Year | MiniPro | Black | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-1 | MiniPro Test Clip - Brown | $2.85 | Active Catalog | 1 Year | MiniPro | Brown | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-2 | MiniPro Test Clip - Red | $2.85 | Active Catalog | 1 Year | MiniPro | Red | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-3 | MiniPro Test Clip - Orange | $2.85 | Active Catalog | 1 Year | MiniPro | Orange | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-4 | MiniPro Test Clip - Yellow | $2.85 | Active Catalog | 1 Year | MiniPro | Yellow | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-5 | MiniPro Test Clip - Green | $2.85 | Active Catalog | 1 Year | MiniPro | Green | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-6 | MiniPro Test Clip - Blue | $2.85 | Active Catalog | 1 Year | MiniPro | Blue | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-7 | MiniPro Test Clip - Violet | $2.85 | Active Catalog | 1 Year | MiniPro | Violet | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-8 | MiniPro Test Clip - Grey | $2.85 | Active Catalog | 1 Year | MiniPro | Grey | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
 |
CT3180-9 | MiniPro Test Clip - White | $2.85 | Active Catalog | 1 Year | MiniPro | White | 33 Vac / 70 Vdc | 6 A | -20° to +80° C | EA |
Specifications
- Type
- MiniPro
- Color
- Green
- Rated Voltage
- 33 Vac / 70 Vdc
- Max Current
- 6 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Product Drawing
