CT3160-0
CT3160 Series
Active CatalogDouble Banana Plug

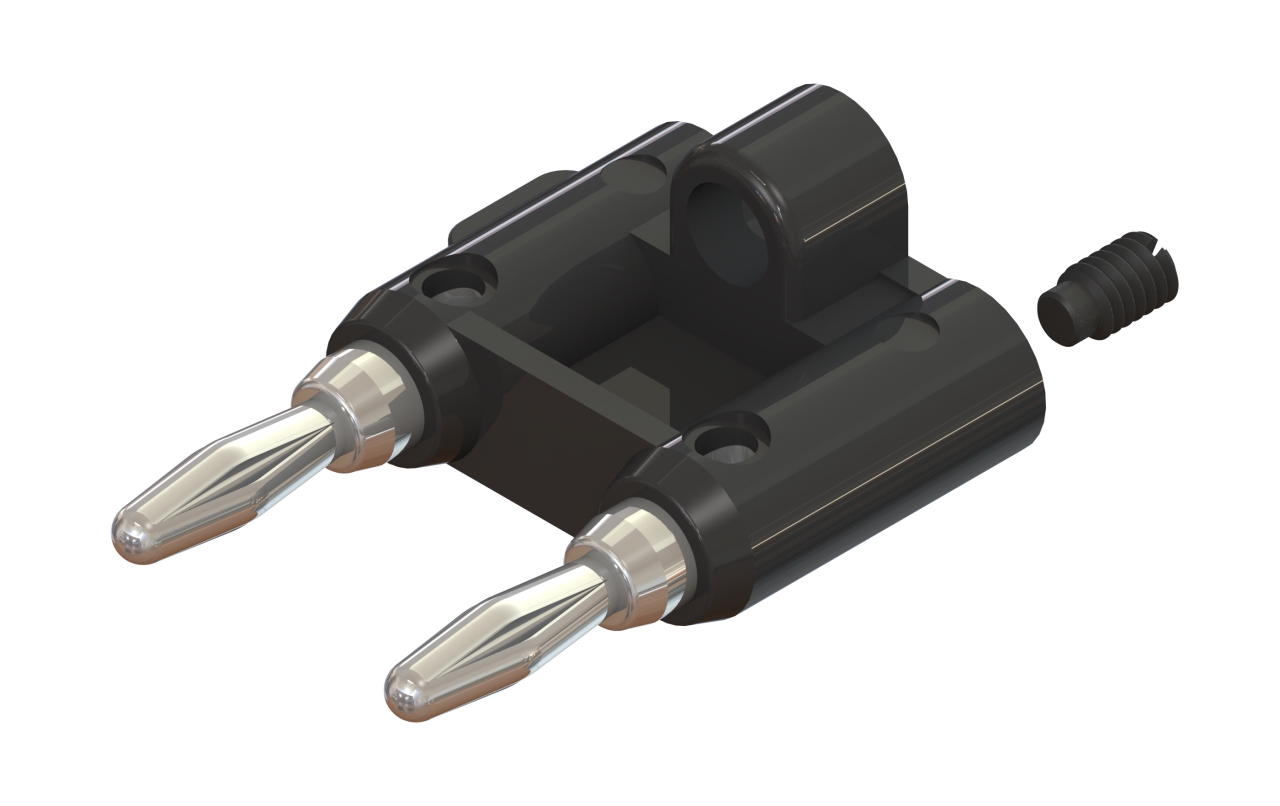

4 mm Double Banana Plugs, Molded - Black
$3.801 Year Warranty
Where to Buy
Overview
Molded 4 mm double banana plug or MDP banana plug. Do-It-Yourself easy to assembly without solder dual banana plug.
- Materials: Body: Polyethylene; Plug: Brass, Nickel Plt; Contact: BeCu, Nickel Plt.
- Cable diameters to 5.5 mm (0.21")
- Wire attachment to 18 - 22 AWG
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3160-0 | 4mm Double Banana Plugs, Molded - Black | $3.80 | Active Catalog | 1 Year | Double | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | ABS | 15 | EA |
 |
CT3160-2 | 4mm Double Banana Plugs, Molded - Red | $3.80 | Active Catalog | 1 Year | Double | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | ABS | 15 | EA |
Specifications
- Type
- Double
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- ABS
- Max Current
- 15
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
