CT3151V3-6
CT3151V3 Series

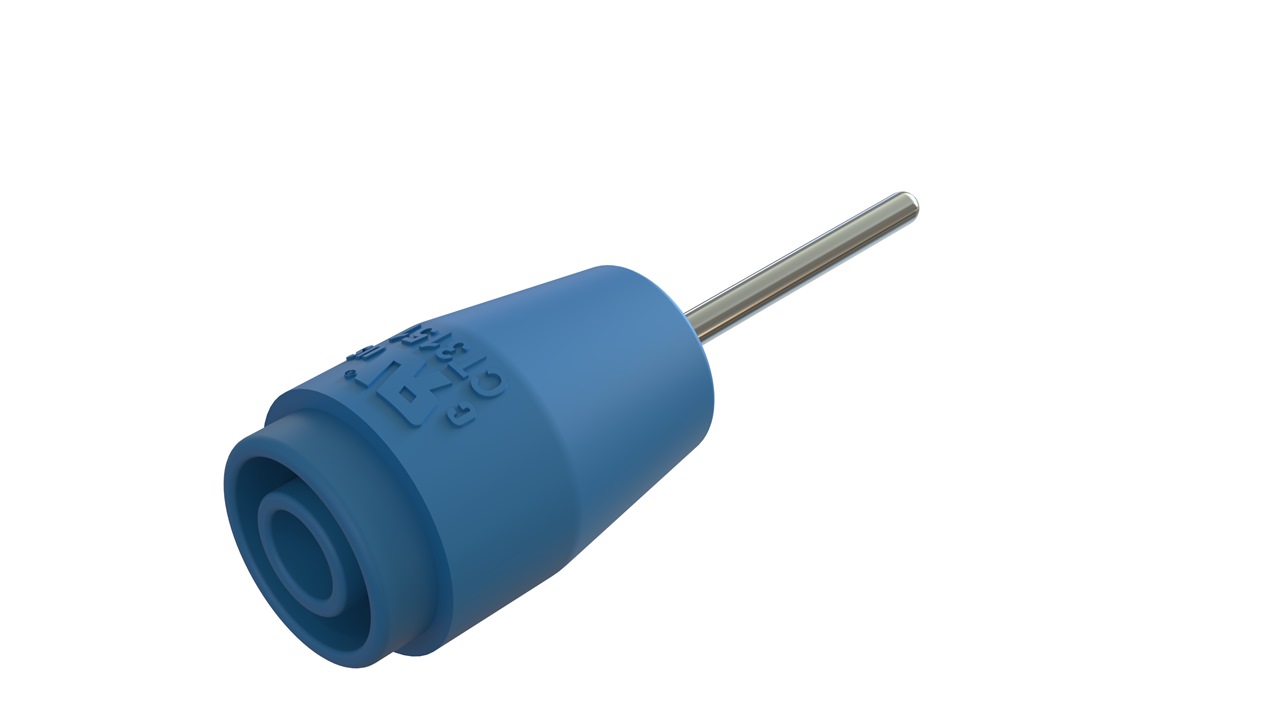

Active CatalogUL 4mm Sheathed (Safety) Jack, PCB Mount, Vertical Long Pin, 1.9x21 mm
Safety Jack, Vertical Long Pin, .827", UL, Blue
$2.551 Year Warranty
Where to Buy
No distributor stock found. View all distributors →
Overview
UL recognized 4 mm Sheathed Banana Jack (socket) that accepts sheathed or shrouded banana plugs and meets international safety standards. Component recognition per UL 61010-1 and CAN/CSA C22.2 No. 61010-1 to 1,000 V CAT III, 25 A. Designed for vertical printed circuit mounting from the rear of the panel.
Mounting is with 1.9mm diameter x 12mm short pin for insertion into a PCB.
Features
- UL Recognized
- Available in 9 colors for easy identification in complex setups
- Vertical PCB pin options for design flexibility
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3151V3-0 | Safety Jack, Vertical Long Pin, .827", UL, Black | $2.55 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III | Black | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-1 | Safety Jack, Vertical Long Pin, .827", UL, Brown | $2.55 | Special Order | 1 Year | Panel Mount | 1000 V CAT III | Brown | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-2 | Safety Jack, Vertical Long Pin, .827", UL, Red | $2.55 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III | Red | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-4 | Safety Jack, Vertical Long Pin, .827", UL, Yellow | $2.55 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-5 | Safety Jack, Vertical Long Pin, .827", UL, Green | $2.55 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III | Green | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-6 | Safety Jack, Vertical Long Pin, .827", UL, Blue | $2.55 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III | Blue | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-7 | Safety Jack, Vertical Long Pin, .827", UL, Violet | $2.55 | Special Order | 1 Year | Panel Mount | 1000 V CAT III | Violet | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-8 | Safety Jack, Vertical Long Pin, .827", UL, Grey | $2.55 | Special Order | 1 Year | Panel Mount | 1000 V CAT III | Grey | Brass, Nickel Plated | Polyamide | 25 A | EA |
 |
CT3151V3-9 | Safety Jack, Vertical Long Pin, .827", UL, White | $2.55 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III | White | Brass, Nickel Plated | Polyamide | 25 A | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 1000 V CAT III
- Color
- Blue
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 25 A
- Operating Temperature
- -20C TO +65C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
