CT3151V1-4
CT3151V1 Series

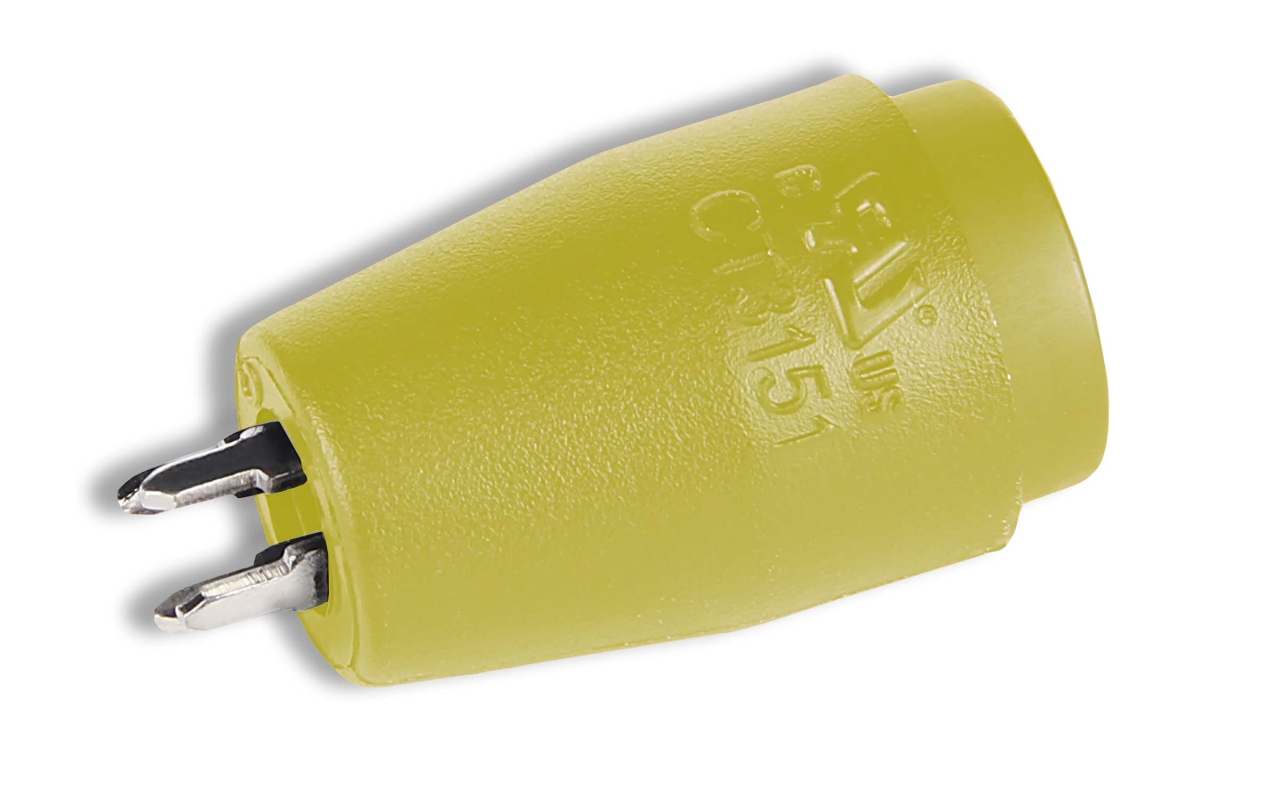

Active CatalogUL 4mm Sheathed (Safety) Jack, PCB Mount, Vertical, .750" (19mm) Height
Safety Jack, Vertical PCB Mount, .750", UL, Yellow
$2.551 Year Warranty
Where to Buy
Overview
UL recognized 4 mm Sheathed Banana Jack (socket) that accepts sheathed or shrouded banana plugs and meets international safety standards. Component recognition per UL 61010-1 and CAN/CSA C22.2 No. 61010-1 to 1,000 V CAT III, 25 A. Designed for vertical printed circuit mounting from the rear of the panel.
Mounting is with 4 terminals into a PCB pad.
Features:
- UL recognized per File No. E315929, PICQ2 and PICQ8
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
- Height: .750" (19 mm) above PCB surface
- Panel Thickness: .118" (3 mm)
- Available in 9 colors
- Sells in packages of 100
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3151V1-0 | Safety Jack, Vertical PCB Mount, .750", UL, Black | $2.55 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Black | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-1 | Safety Jack, Vertical PCB Mount, .750", UL, Brown | $2.55 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Brown | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-2 | Safety Jack, Vertical PCB Mount, .750", UL, Red | $2.55 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Red | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-4 | Safety Jack, Vertical PCB Mount, .750", UL, Yellow | $2.55 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-5 | Safety Jack, Vertical PCB Mount, .750", UL, Green | $2.55 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Green | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-6 | Safety Jack, Vertical PCB Mount, .750", UL, Blue | $2.55 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Blue | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-7 | Safety Jack, Vertical PCB Mount, .750", UL, Violet | $2.55 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Violet | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-8 | Safety Jack, Vertical PCB Mount, .750", UL, Grey | $2.55 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Grey | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3151V1-9 | Safety Jack, Vertical PCB Mount, .750", UL, White | $2.55 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | White | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
Specifications
- Type
- PCB Mount
- Rated Voltage
- 1000 V CAT III
- Color
- Yellow
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 25 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
