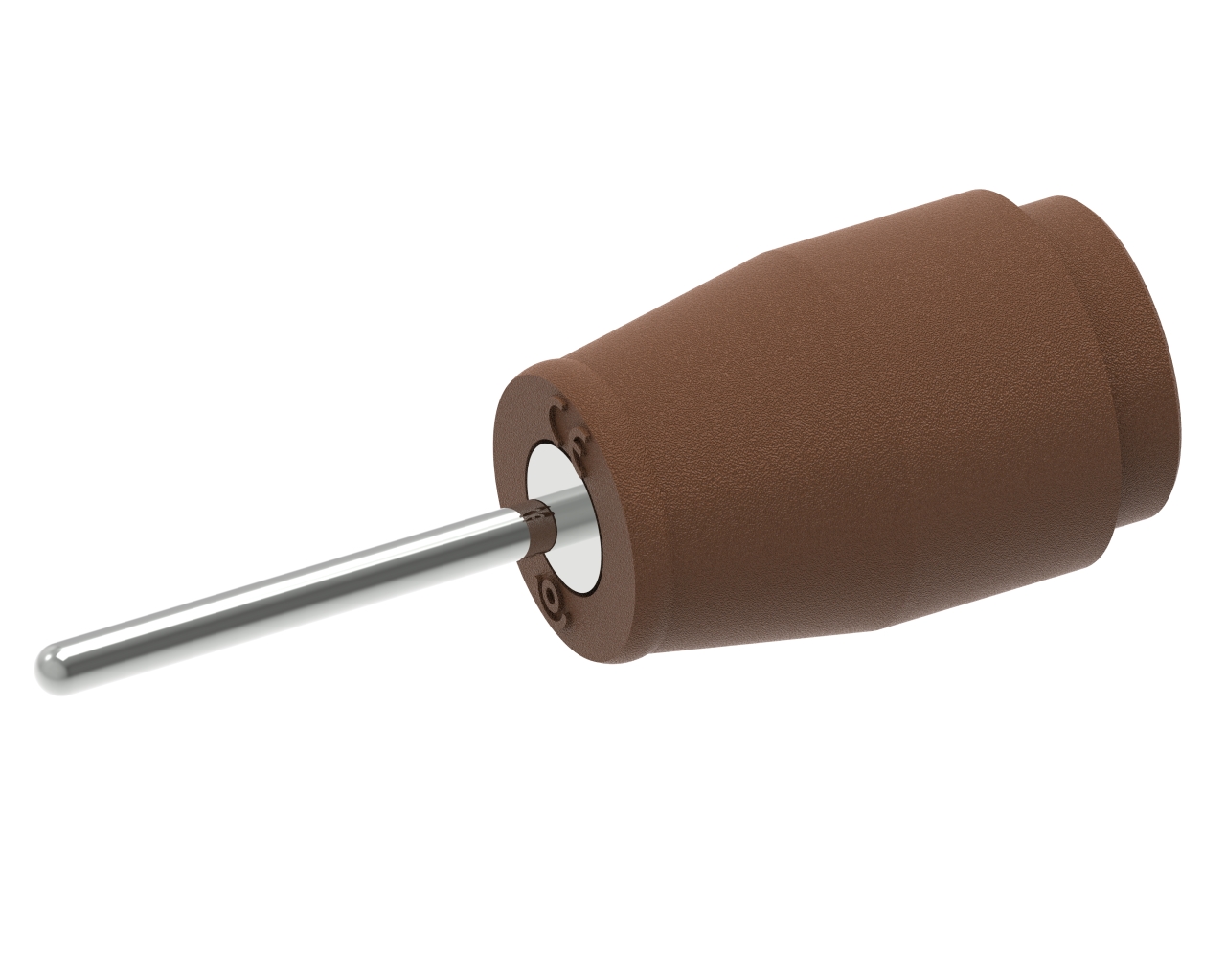

CT3150-1
CT3150 Series
Special OrderBanana Jack PCB Mount
Safety Jack, Long Pin - Vert PCB Mount, Brown
$2.451 Year Warranty
Where to Buy
Overview
4mm Sheathed Banana Jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III. Designed for vertical printed circuit mounting from the rear of the panel.
Mounting is with 1.9mm diameter x 21mm long pin for insertion into a PCB.
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
- Panel Thickness: .118" (3mm)
- Available in 9 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3150-0 | Safety Jack, Long Pin - Vert PCB Mount, Black | $2.45 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Black | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-1 | Safety Jack, Long Pin - Vert PCB Mount, Brown | $2.45 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Brown | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-2 | Safety Jack, Long Pin - Vert PCB Mount, Red | $2.45 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Red | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-4 | Safety Jack, Long Pin - Vert PCB Mount, Yellow | $2.45 | Active Catalog | 1 Year | PCB Mount | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-5 | Safety Jack, Long Pin - Vert PCB Mount, Green | $2.45 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Green | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-6 | Safety Jack, Long Pin - Vert PCB Mount, Blue | $2.45 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Blue | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-7 | Safety Jack, Long Pin - Vert PCB Mount, Violet | $2.85 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | Violet | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT3150-8 | Safety Jack, Long Pin - Vert PCB Mount, Grey | Discontinued | 1 Year | PCB Mount | 1000 V CAT III | Grey | Brass, Nickel Plated | Polyamide | 25 A | - | EA | |
 |
CT3150-9 | Safety Jack, Long Pin - Vert PCB Mount, White | $2.95 | Special Order | 1 Year | PCB Mount | 1000 V CAT III | White | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
Specifications
- Type
- PCB Mount
- Rated Voltage
- 1000 V CAT III
- Color
- Brown
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 25 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
