Overview

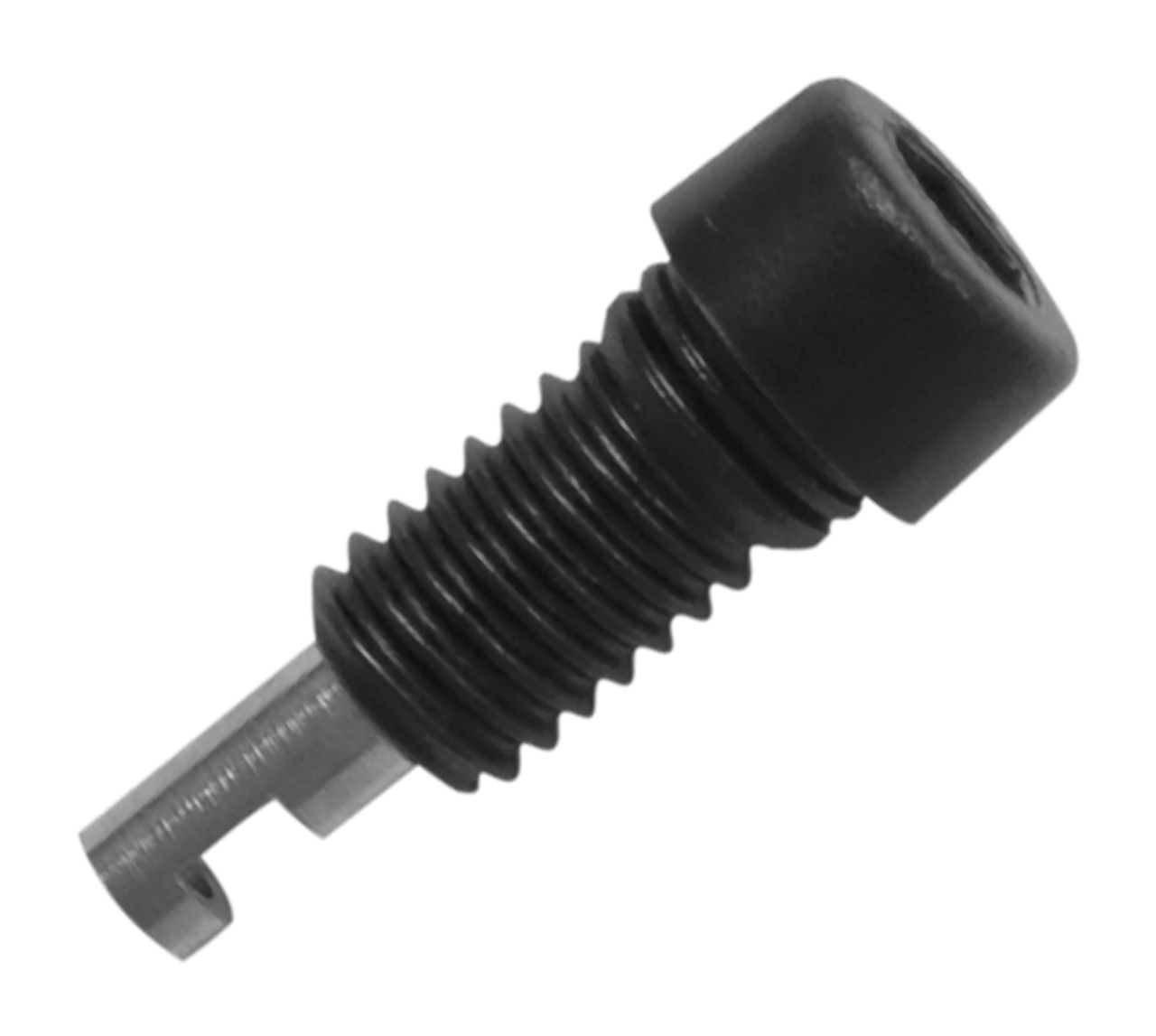

2 mm Insulated Push-in Jack for solder applications.
Materials:
- Body & spring: Brass, Ni coated
- Insulator: Polyamide (PA6.6)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

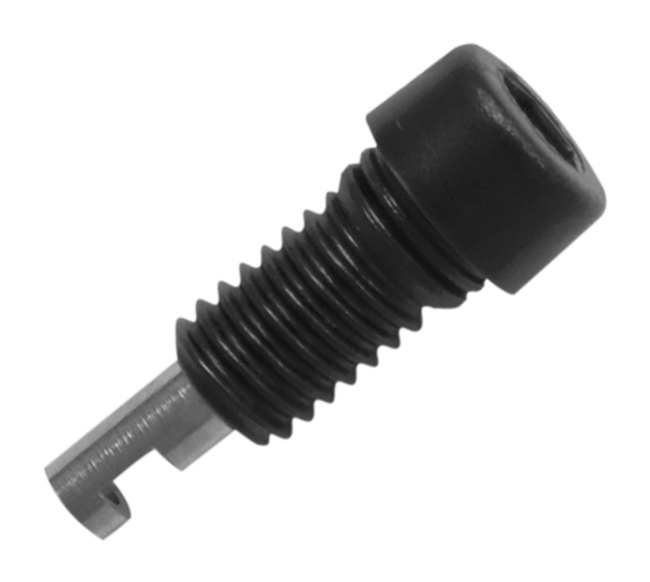

CT3104-0 | 2mm Insulated Jack - Pushin, Black | $1.15 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT3104-2 | 2mm Insulated Jack - Pushin, Red | $1.15 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10 A
- Max Voltage
- 1200 V AC/DC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
