Overview

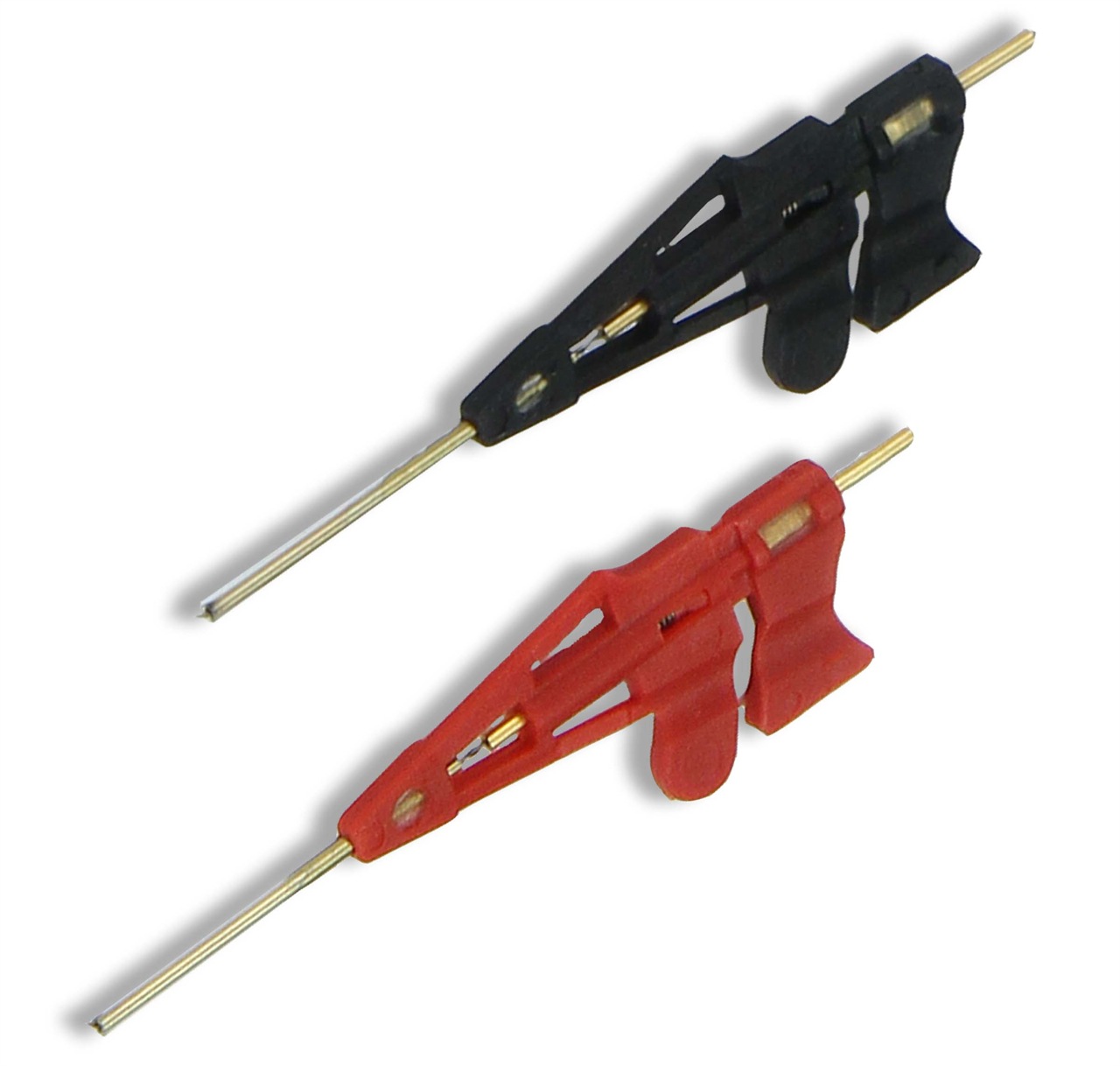

Pair of SMD MicroClip test clips for high density SMD testing. Interconnection pin is .031" (0.8mm) diameter.
- Material: Polyamide (Nylon) w/Stainless Steel Contacts
- Use MicroLeads for interconnecting the Micro Clip Test Clips to an Instrument.
- Pair of clips 1 Red and 1 Black
Kit Contents
Specifications
- Type
- MicroClip
- Rated Voltage
- 33 Vac / 70 Vdc
- Max Current
- 0.5 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
