CT3098-0
CT3098 Series
Active Catalog2mm DIY Plug

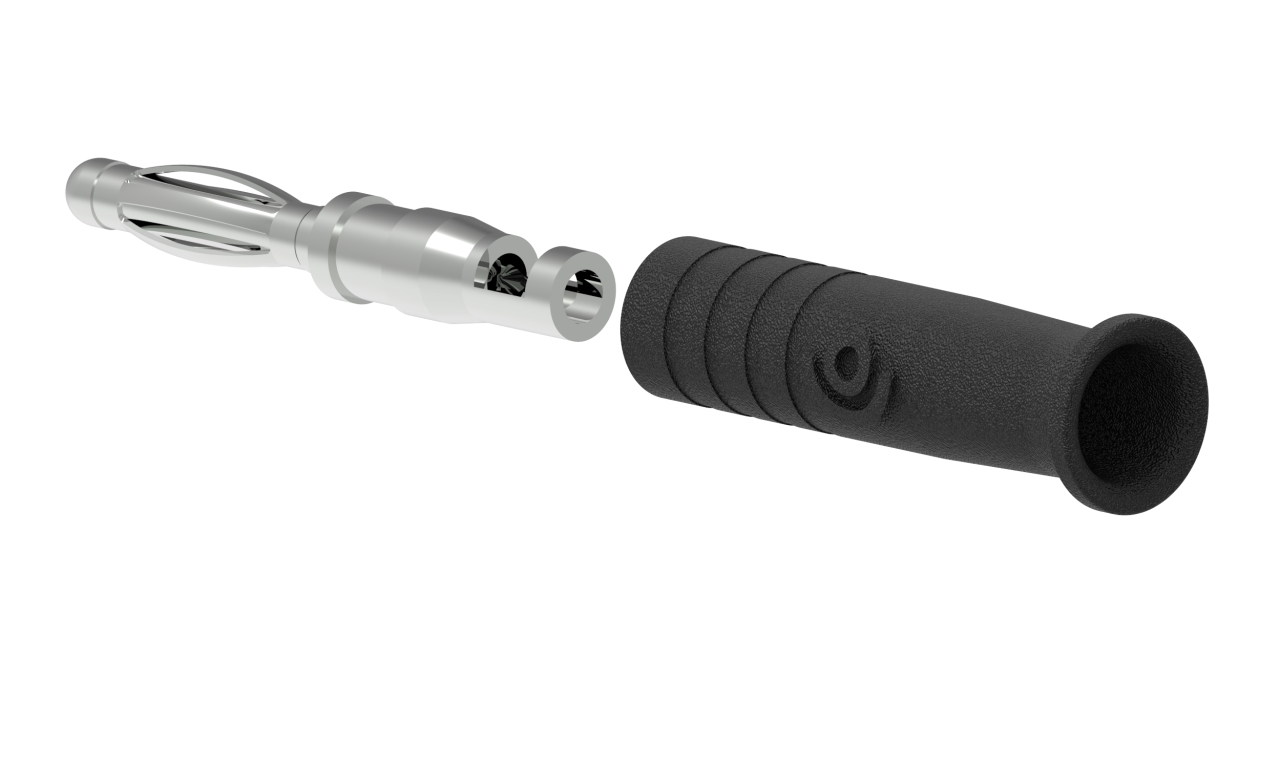

2 mm Banana Plug, Do It Yourself Solder - Press-fit Insl., Black
$1.501 Year Warranty
Where to Buy
Overview
2 mm Do-It-Yourself plug for solder and solder-less applications.
Materials:
- Body & spring: Brass, Ni coated
- Insulator: Polypropylene (PP)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3098-0 | 2mm Banana Plug, DIY Solder - Press-fit Insl., Black | $1.50 | Active Catalog | 1 Year | 2mm | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polypropylene | 10 | EA |
 |
CT3098-2 | 2mm Banana Plug, DIY Solder - Press-fit Insl., Red | $1.50 | Active Catalog | 1 Year | 2mm | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polypropylene | 10 | EA |
Specifications
- Type
- 2mm
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 10
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
