CT3096
CT3096 Series
Active CatalogMiniFlex Clip Lead to 4mm Jack, Pair

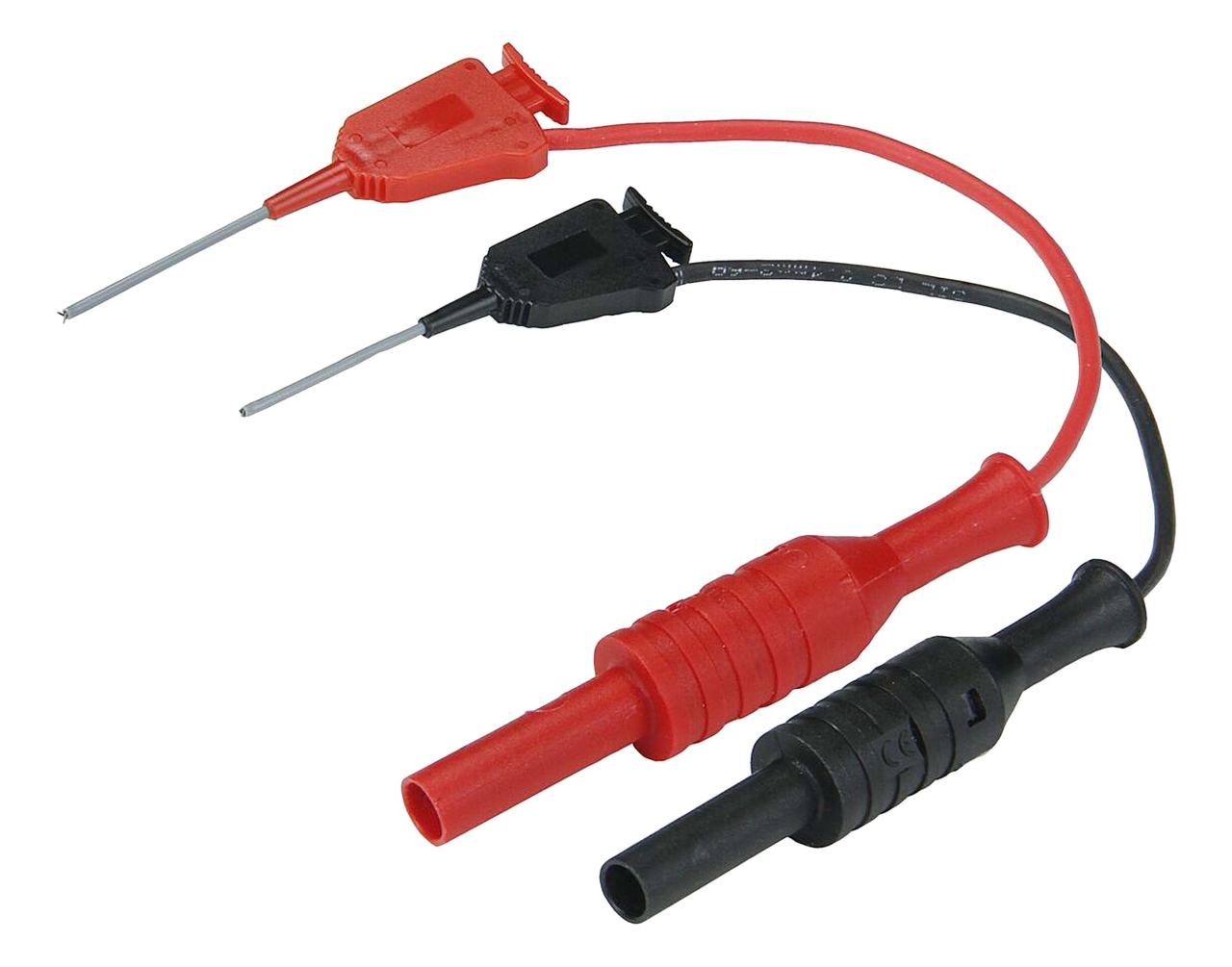

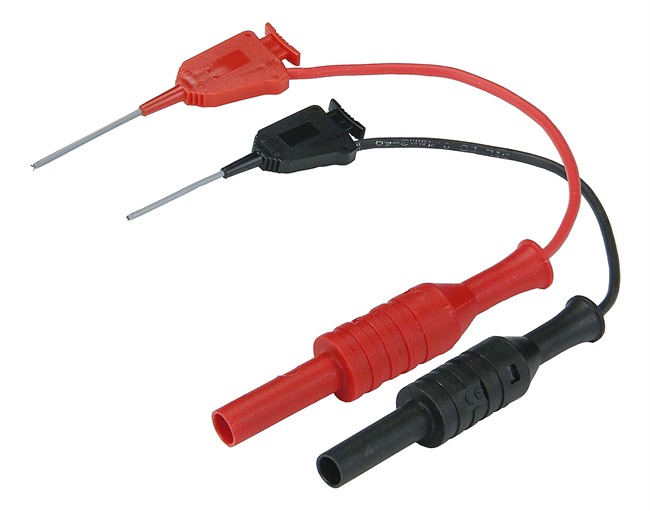

MiniFlex Clip Lead - SILIC 0.40, 10cm, Pair B/R
$64.001 Year Warranty
Where to Buy
Select Variant
Length
Overview
Connect to your MiniFlex clip to a 4mm Sheathed DMM lead. Very versatile test lead.
- Material: Polyamide (Nylon) w/Stainless Steel Contacts
- Highly flexible Silicone jacketed wire
- Available in black and red pair
Kit Contents
- (1) MiniFlex Clip to 4mm J - SILIC 0.40, 10cm, Black - CT2551-10-0
- (1) MiniFlex Clip to 4mm J - SILIC 0.40, 10cm, Red - CT2551-10-2
Specifications
- Type
- MiniFlexClip
- Connector A
- MiniFlexClip
- Connector B
- 4mm Jack, MiniFlex Clip
- Length
- 10 cm
- Color
- Black/Red Pair
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 1 A
- Wire Gauge
- 21 AWG
- Conductor Area
- 0.40 mm²
- Jacket Material
- Silicone
- OD
- 2.1mm (0.083")
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
