CT3075-0
CT3075 Series
Active Catalog2mm Panel Mount Sheathed Jack with Stud

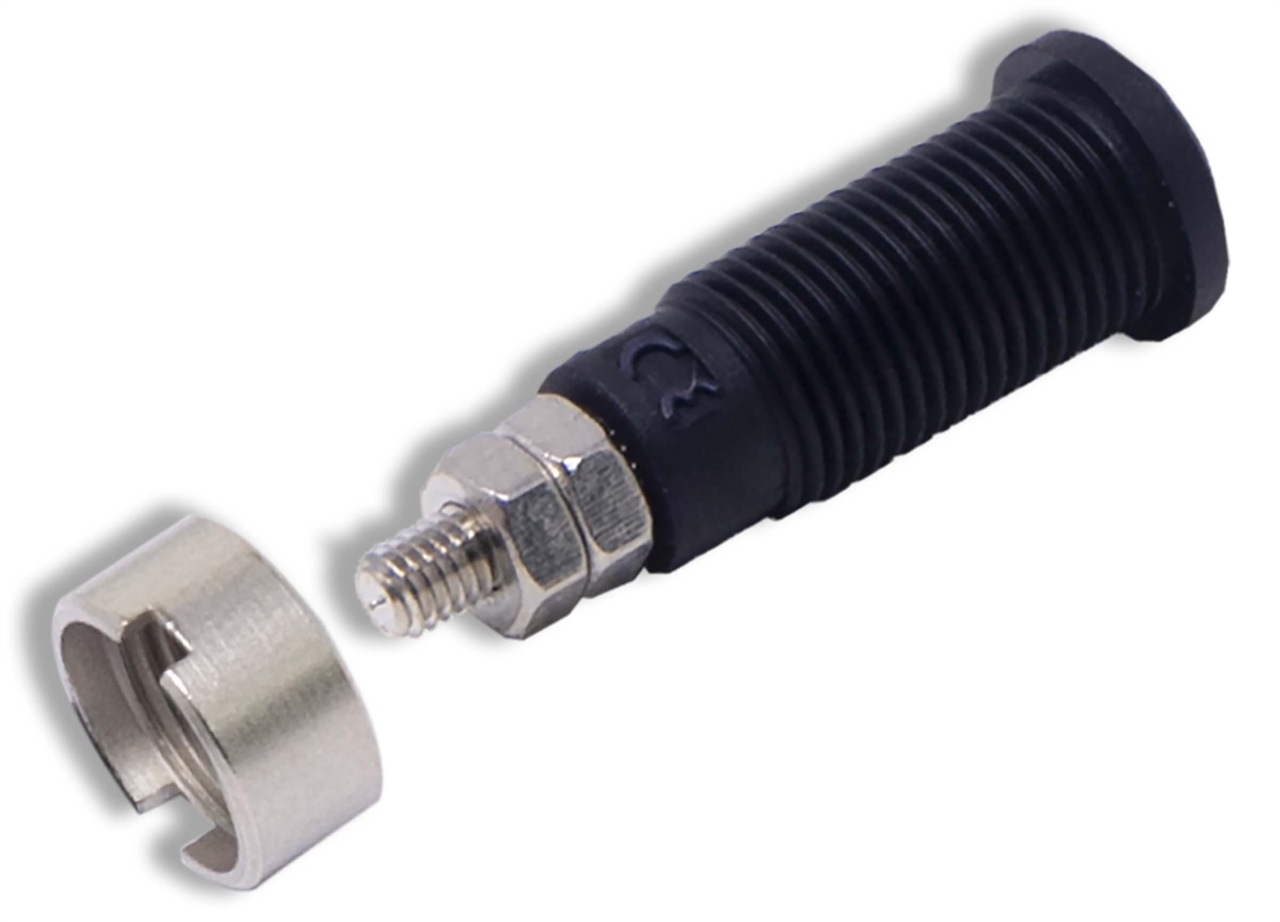

2 mm Safety Banana Jack, Stud - Panel, Black
$3.351 Year Warranty
Where to Buy
Overview
Sheathed 2mm Jack, with a stud
Materials:
- Body & spring: Brass, Ni coated
- Insulator: Polyamide (PA6.6)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3075-0 | 2mm Safety Jack, Stud - Panel, Black | $3.35 | Active Catalog | 1 Year | Panel Mount | 600 V CAT II | Black | Brass, Nickel Plated | Polyamide | 10 A | - | EA |
 |
CT3075-2 | 2mm Safety Jack, Stud - Panel, Red | $3.35 | Active Catalog | 1 Year | Panel Mount | 600 V CAT II | Red | Brass, Nickel Plated | Polyamide | 10 A | - | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 600 V CAT II
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10 A
- Max Voltage
- -
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- 3D Model3D Model
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
