CT3021-2
CT3021 Series
Active CatalogLarge Insulated Alligator Clip

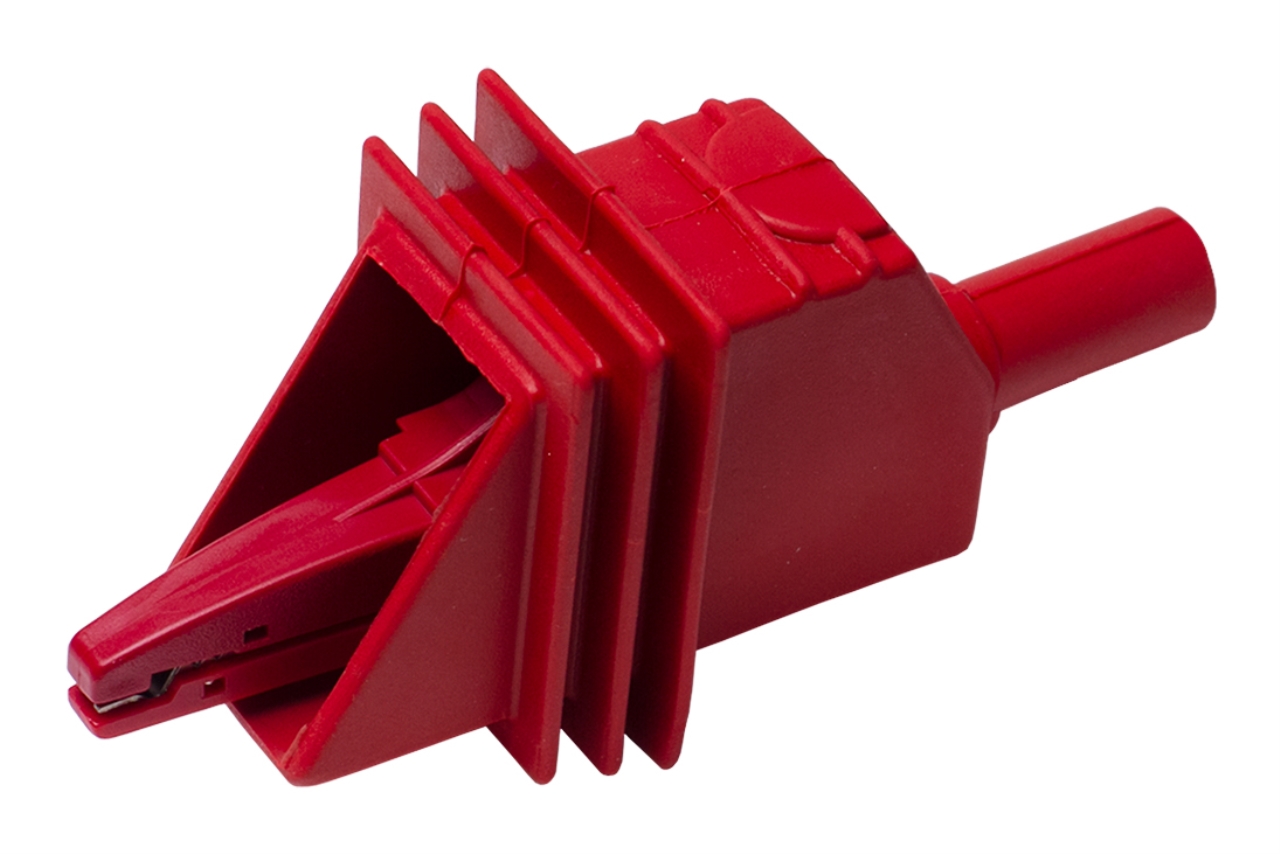

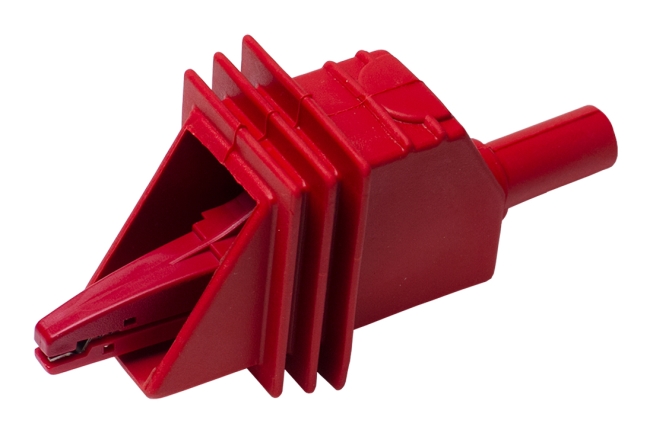

5kV Insulated Lg. Alligator Clip w/ 4mm Shth J, PVC, Red
$38.001 Year Warranty
Where to Buy
Overview
The CT3021 operates up to 5 kV when used in non-category environments with transient overvoltages up to 2 kV. This alligator clip is also rated to 1,000 V CAT IV.
For use only with Cal Test’s Long-Reach High Voltage Test Leads, CT3018 or CT3020. The CT3021 is a specially designed, fully insulated large alligator clip that opens to 24 mm and can accommodate terminals up to 16 mm in diameter.
- 1,000 V CAT IV, 5 kV non‐category with 2 kV transient overvoltage
- 20 A Max
- CE listed
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3021-0 | 5kV Insulated Lg. Alligator Clip w/ 4mm Shth J, PVC, Black | $38.00 | Active Catalog | 1 Year | Fully Insulated | Black | 1,000 V CAT IV | 20 A | EA |
 |
CT3021-2 | 5kV Insulated Lg. Alligator Clip w/ 4mm Shth J, PVC, Red | $38.00 | Active Catalog | 1 Year | Fully Insulated | Red | 1,000 V CAT IV | 20 A | EA |
Specifications
- Type
- Fully Insulated
- Color
- Red
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 20 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
