Product resources

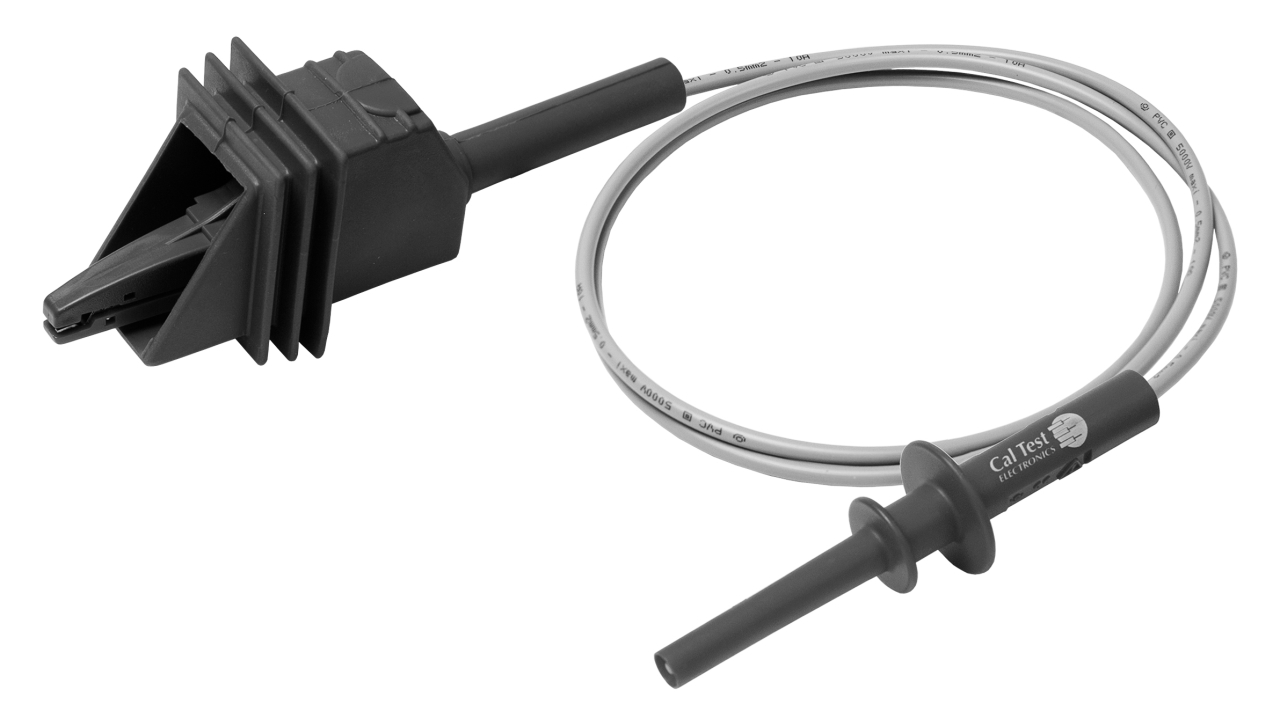

CT3018-150-0
CT3018 Series
Active CatalogBanana Plug Test Lead
5kV Insulated Lg Allig - 4mm Shth P, PVC, 150cm, Black
$57.001 Year Warranty
Where to Buy
Overview
With the highly insulated alligator clip and long-reach sheathed banana plug, the CT3018 operates up to 5 kV when used in non-category environments with transient overvoltages up to 2 kV. This test lead is also rated 1,000 V CAT IV.
The CT3020 comes with a specially designed 4 mm long-reach sheathed banana plug and a special high voltage, highly flexible test lead wire, which allows it to interface with the 5kV, 4 mm Sheathed Banana Jack Series.
- 1,000 V CAT IV, 5 kV non-category with 2 kV transient overvoltage
- 10 A Max
- CE listed
- RoHS 2 Compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Rated Voltage | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3018-100-0 | 5kV Insulated Lg Allig - 4mm Shth P, PVC, 100cm, Black | $55.00 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | Black | 1,000 V CAT IV | 10 A | EA |
 |
CT3018-100-2 | 5kV Insulated Lg Allig - 4mm Shth P, PVC, 100cm, Red | $55.00 | Active Catalog | 1 Year | Alligator | Alligator | 100 cm | Red | 1,000 V CAT IV | 10 A | EA |
 |
CT3018-150-0 | 5kV Insulated Lg Allig - 4mm Shth P, PVC, 150cm, Black | $57.00 | Active Catalog | 1 Year | Alligator | Alligator | 150 cm | Black | 1,000 V CAT IV | 10 A | EA |
 |
CT3018-150-2 | 5kV Insulated Lg Allig - 4mm Shth P, PVC, 150cm, Red | $57.00 | Active Catalog | 1 Year | Alligator | Alligator | 150 cm | Red | 1,000 V CAT IV | 10 A | EA |
Specifications
- Type
- Alligator
- Connector A
- Alligator
- Length
- 150 cm
- Color
- Black
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 10 A
- Jacket Material
- PVC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
