CT2989-5
CT2989 Series
Active CatalogBanana Plug

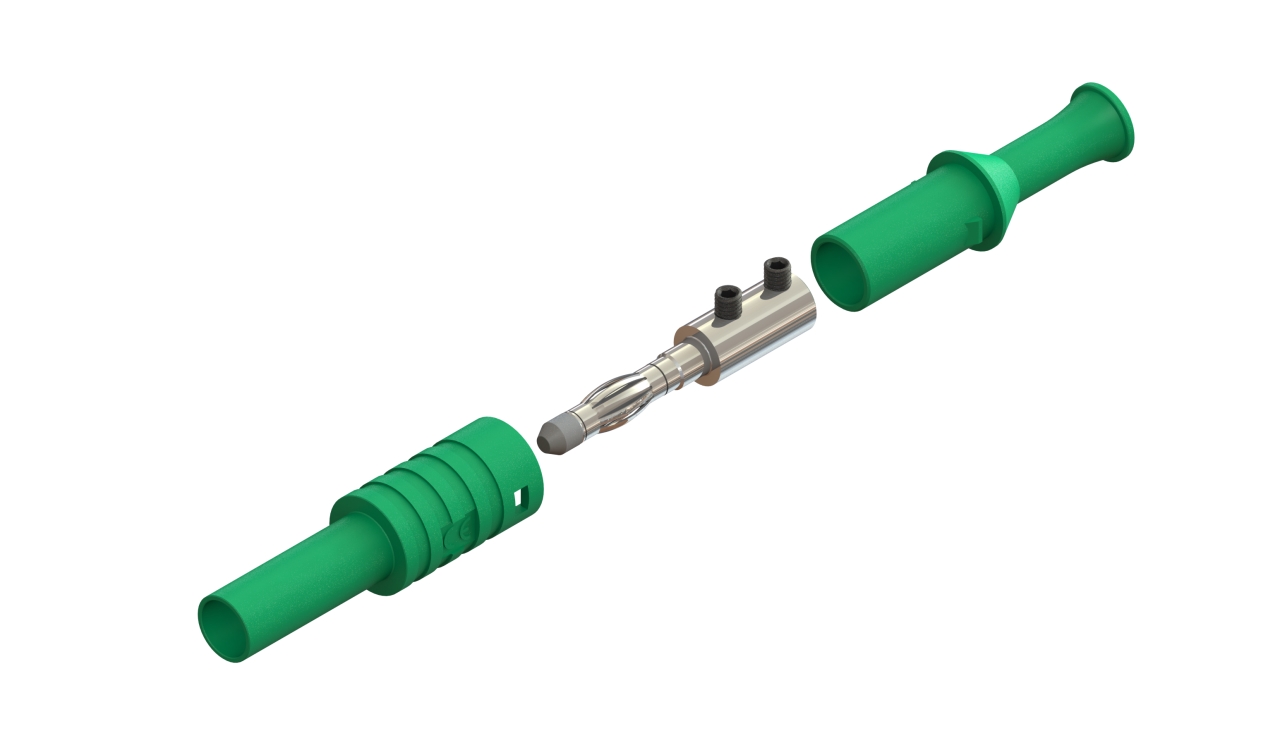

Do It Yourself, 4 mm Sheathed Banana Plug, Solderless - Green
$5.751 Year Warranty
Where to Buy
Overview
Individual, fully insulated 4 mm Do-it-Yourself (DIY) fixed sheathed banana plug allows you to build your own test leads that meet the latest safety standards. Both solder and solderless versions with easy snap together assembly.
CT2989-# - Solderless version
- Dual set screw connection
- Requires 1.5 mm allen wrench for assembly, CT2919
CT2989-S-# - Solder version
- Quick solder assembly
Features:
- IEC Voltage rating - 1000 V CAT III (*when using equally rated lead wire)
- Insulated tip on plug
- Three (3) piece assembly
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2989-0 | DIY 4mm Shth Plug, Solderless - Black | $5.75 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-2 | DIY 4mm Shth Plug, Solderless - Red | $5.75 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-4 | DIY 4mm Shth Plug, Solderless - Yellow | $5.75 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-5 | DIY 4mm Shth Plug, Solderless - Green | $5.75 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-6 | DIY 4mm Shth Plug, Solderless - Blue | $5.75 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-9 | DIY 4mm Shth Plug, Solderless - White | $6.25 | Special Order | 1 Year | Sheathed | 1000 V CAT III | White | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-S-0 | DIY 4mm Shth Plug, Solder - Black | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-S-2 | DIY 4mm Shth Plug, Solder - Red | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-S-4 | DIY 4mm Shth Plug, Solder - Yellow | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-S-5 | DIY 4mm Shth Plug, Solder - Green | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-S-6 | DIY 4mm Shth Plug, Solder - Blue | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2989-S-9 | DIY 4mm Shth Plug, Solder - White | $6.20 | Special Order | 1 Year | Sheathed | 1000 V CAT III | White | Brass, Nickel Plated | Polyamide | 36 | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 1000 V CAT III
- Color
- Green
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
