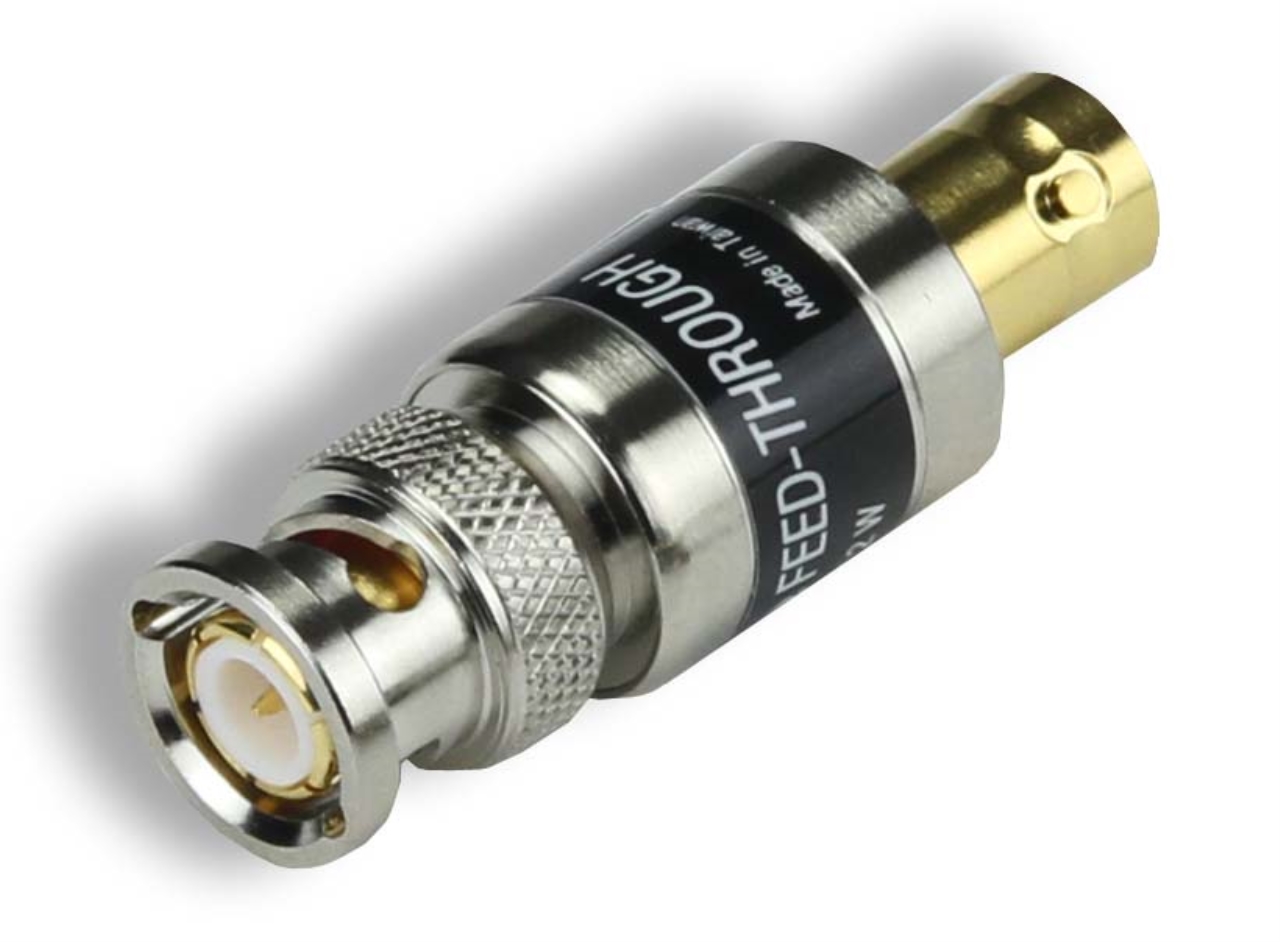

CT2944-93
CT2944 Series
Active CatalogCoaxial Terminator
BNC Feed-Thru Terminator - (m-f) 1GHz, 1W, 93 Ohm
$75.001 Year Warranty
Where to Buy
Overview
CT2944: BNC feed-thru terminator, male to female. Matches higher impedance devices to input impedance of the test equipment.
- BNC male to female
- Frequency: DC to 1 or 2 GHz
- Gold Plt. Center Contacts
* The CT2944-50 has been replaced by CT2944C-50 .
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector Grade | Average Power | Frequency Range | Impedance | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2944-75 | BNC Feed-Thru Terminator - (m-f) 1GHz, 1W, 75 Ohm | $75.00 | Active Catalog | 1 Year | Adapter, Jack to Plug | General Purpose | 1 W | DC to 1 GHz | 75 Ω | EA |
 |
CT2944-93 | BNC Feed-Thru Terminator - (m-f) 1GHz, 1W, 93 Ohm | $75.00 | Active Catalog | 1 Year | Adapter, Jack to Plug | General Purpose | 1 W | DC to 1 GHz | 93 Ω | EA |
Specifications
- Type
- Adapter, Jack to Plug
- Connector Grade
- General Purpose
- Average Power
- 1 W
- Frequency Range
- DC to 1 GHz
- Impedance
- 93 Ω
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Product Drawing
