Product resources

CT2915-1

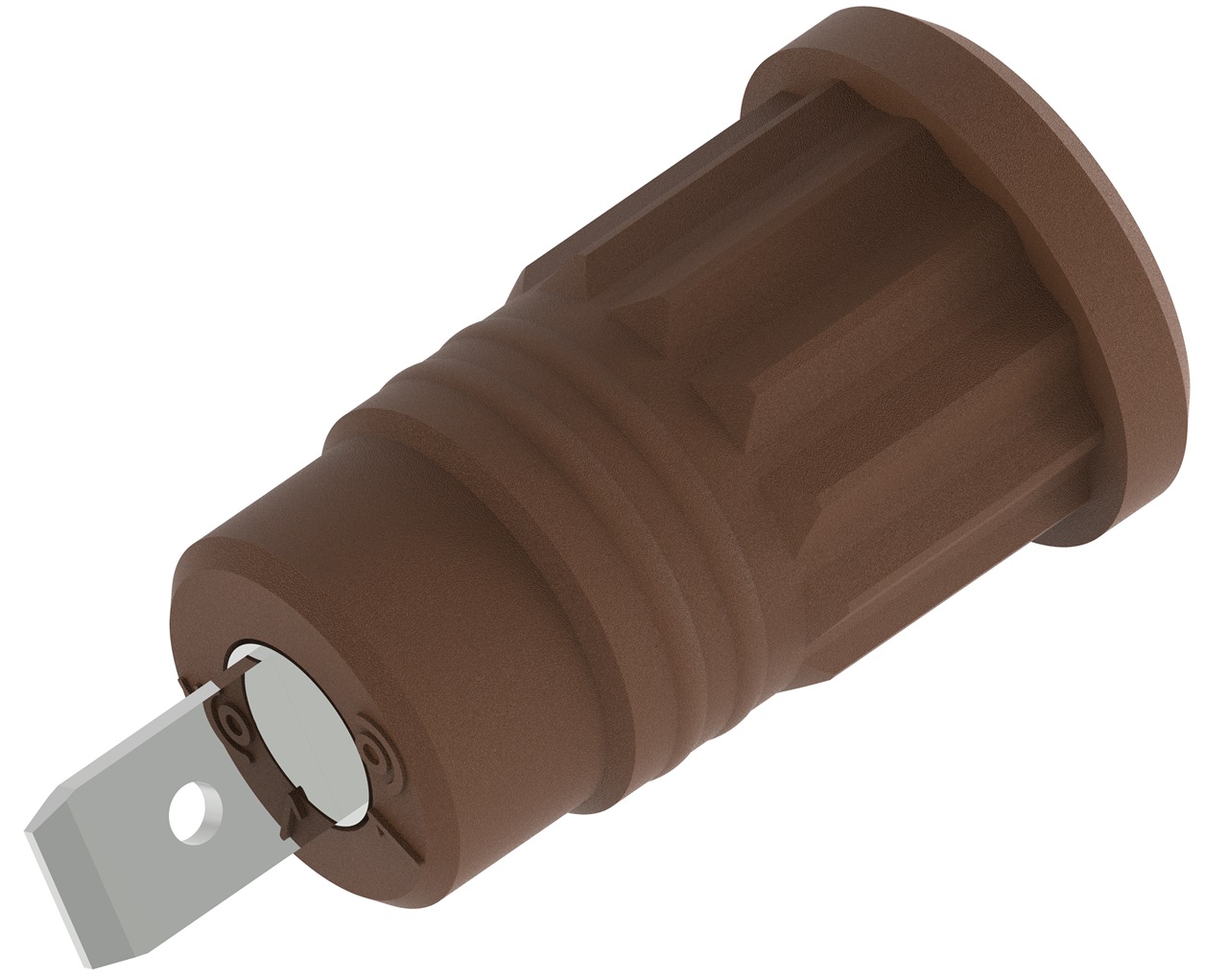

Name: CT2915-1 4mm Safety Jack, .188 Faston - Push-In, Brown
Brand: Cal Test Electronics
SKU: CT2915-1
Price: 2.75 USD
Availability: Discontinued

CT2915 Series

Discontinued

Banana Jack Panel Mount

4mm Safety Jack, .188 Faston - Push-In, Brown

1 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	45 in stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Select Variant

Color

Black Blue Brown Green Grey Red Violet White Yellow

Overview

Press fit 4 mm Sheathed Banana Jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV. Fast push-in assembly in either sheet metal or plastic panels.

Termination is with .188" (4.8mm) Faston^® termination.

Materials: Body: Polyamide (Nylon); Jack and Nut: Brass, Nickel Plt
Minimum Panel Thickness: Plastic .080" (2mm); Metal .060 (1.5mm)
Available in 9 colors

Models

Model	Description	MSRP	Status	Warranty	Type	Rated Voltage	Color	Contact Material	Insulation Material	Max Current	Max Voltage	UOM
CT2915-0	4mm Safety Jack, .188 Faston - Push-In, Black	$2.90	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Black	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-1	4mm Safety Jack, .188 Faston - Push-In, Brown		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Brown	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-2	4mm Safety Jack, .188 Faston - Push-In, Red	$2.90	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Red	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-4	4mm Safety Jack, .188 Faston - Push-In, Yellow	$2.90	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Yellow	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-5	4mm Safety Jack, .188 Faston - Push-In, Green	$2.90	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Green	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-6	4mm Safety Jack, .188 Faston - Push-In, Blue	$2.90	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Blue	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-7	4mm Safety Jack, .188 Faston - Push-In, Violet		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Violet	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-8	4mm Safety Jack, .188 Faston - Push-In, Gray		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Grey	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2915-9	4mm Safety Jack, .188 Faston - Push-In, White	$3.40	Special Order	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	White	Brass, Nickel Plated	Polyamide	36 A	-	EA
