CT2913-1

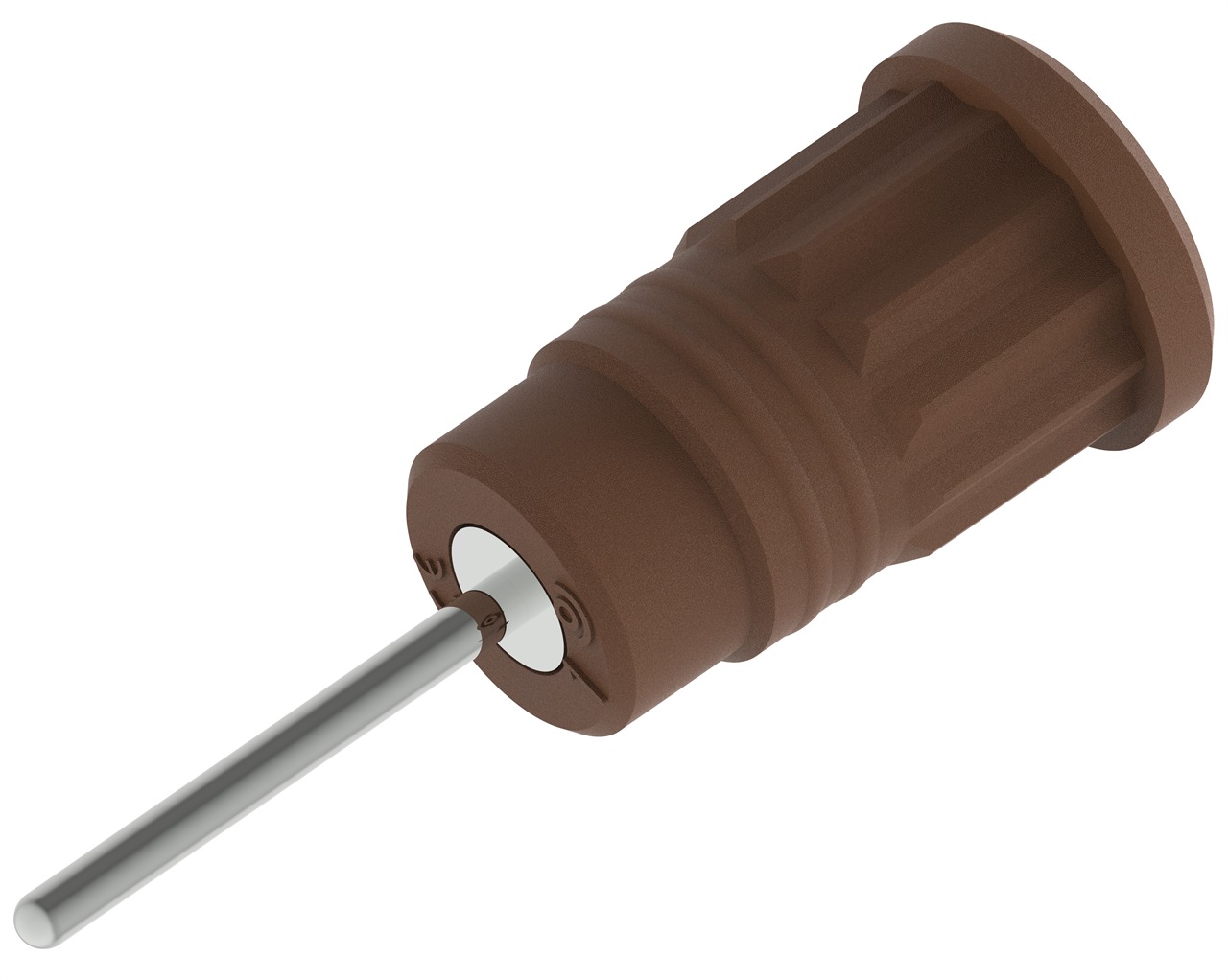

Name: CT2913-1 4mm Safety Jack, Long Pin - Push-In, Brown
Brand: Cal Test Electronics
SKU: CT2913-1
Price: 2.15 USD
Availability: Discontinued

CT2913 Series

Discontinued

Banana Jack Panel Mount

4mm Safety Jack, Long Pin - Push-In, Brown

1 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Select Variant

Color

Black Blue Brown Green Grey Red Violet White Yellow

Overview

Press fit 4 mm Banana Sheathed Jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV. Fast push-in assembly in either sheet metal or plastic panels.

Termination is with 1.9mm diameter x 21mm long pin for wire wrap or PCB insertion.

Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
Minimum Panel Thickness: Plastic .080" (2mm); Metal .060" (1.5mm)
Available in 9 colors

Models

Model	Description	MSRP	Status	Warranty	Type	Rated Voltage	Color	Contact Material	Insulation Material	Max Current	Max Voltage	UOM
CT2913-0	4mm Safety Jack, Long Pin - Push-In, Black	$2.25	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Black	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-1	4mm Safety Jack, Long Pin - Push-In, Brown		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Brown	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-2	4mm Safety Jack, Long Pin - Push-in, Red	$2.25	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Red	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-4	4mm Safety Jack, Long Pin - Push-In, Yellow	$2.25	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Yellow	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-5	4mm Safety Jack, Long Pin - Push-In, Green	$2.25	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Green	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-6	4mm Safety Jack, Long Pin - Push-In, Blue	$2.25	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Blue	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-7	4mm Safety Jack, Long Pin - Push-In, Violet		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Violet	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-8	4mm Safety Jack, Long Pin - Push-In, Gray	$2.25	Special Order	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Grey	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2913-9	4mm Safety Jack, Long Pin - Push-In, White	$2.75	Special Order	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	White	Brass, Nickel Plated	Polyamide	36 A	-	EA
