Product resources

CT2911-1

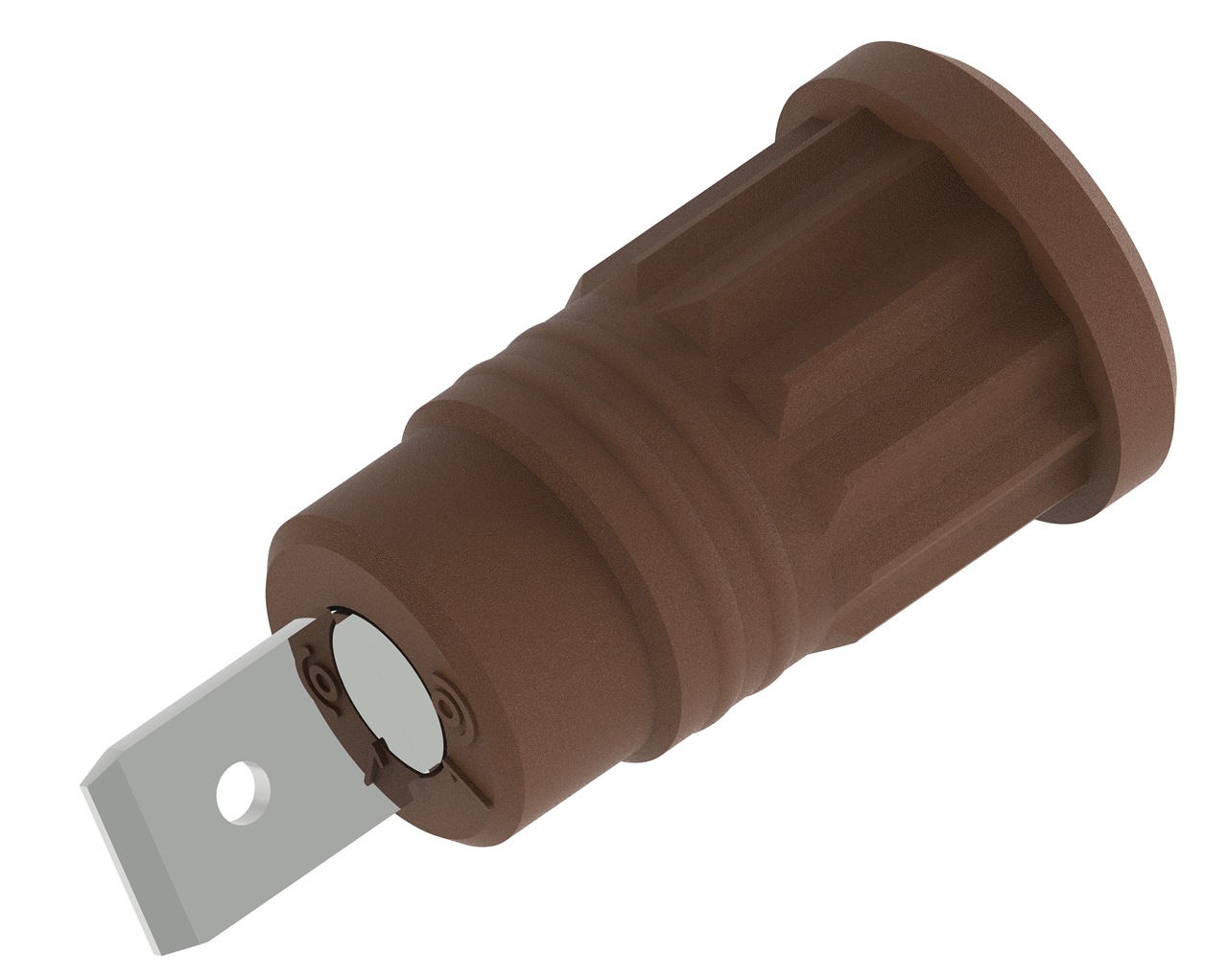

Name: CT2911-1 4mm Safety Jack, .25 Faston - Push-In, Brown
Brand: Cal Test Electronics
SKU: CT2911-1
Price: 2.55 USD
Availability: Discontinued

CT2911 Series

Discontinued

Banana Jack Panel Mount

4mm Safety Jack, .25 Faston - Push-In, Brown

1 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	12 in stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Select Variant

Color

Black Blue Brown Green Grey Red Violet White Yellow

Overview

4 mm Sheathed Banana Jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV. Fast Push-in assembly in either metal or plastic panels.

Termination is with a .25" (6.3mm) Faston^® termination.

Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
Minimum Panel Thickness: Plastic .080" (2mm); Metal .060" (1.5mm)
Available in 9 colors

Models

Model	Description	MSRP	Status	Warranty	Type	Rated Voltage	Color	Contact Material	Insulation Material	Max Current	Max Voltage	UOM
CT2911-0	4mm Safety Jack, .25 Faston - Push-in, Black	$2.65	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Black	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-1	4mm Safety Jack, .25 Faston - Push-In, Brown		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Brown	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-2	4mm Safety Jack, .25 Faston - Push-in, Red	$2.65	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Red	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-4	4mm Safety Jack, .25 Faston - Push-In, Yellow	$2.65	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Yellow	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-5	4mm Safety Jack, .25 Faston - Push-In, Green	$2.65	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Green	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-6	4mm Safety Jack, .25 Faston - Push-In, Blue	$2.65	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Blue	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-7	4mm Safety Jack, .25 Faston - Push-In, Violet		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Violet	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-8	4mm Safety Jack, .25 Faston - Push-In, Gray	$2.55	Special Order	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Grey	Brass, Nickel Plated	Polyamide	36 A	-	EA
CT2911-9	4mm Safety Jack, .25 Faston - Push-In, White		Discontinued	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	White	Brass, Nickel Plated	Polyamide	36 A	-	EA
