Overview

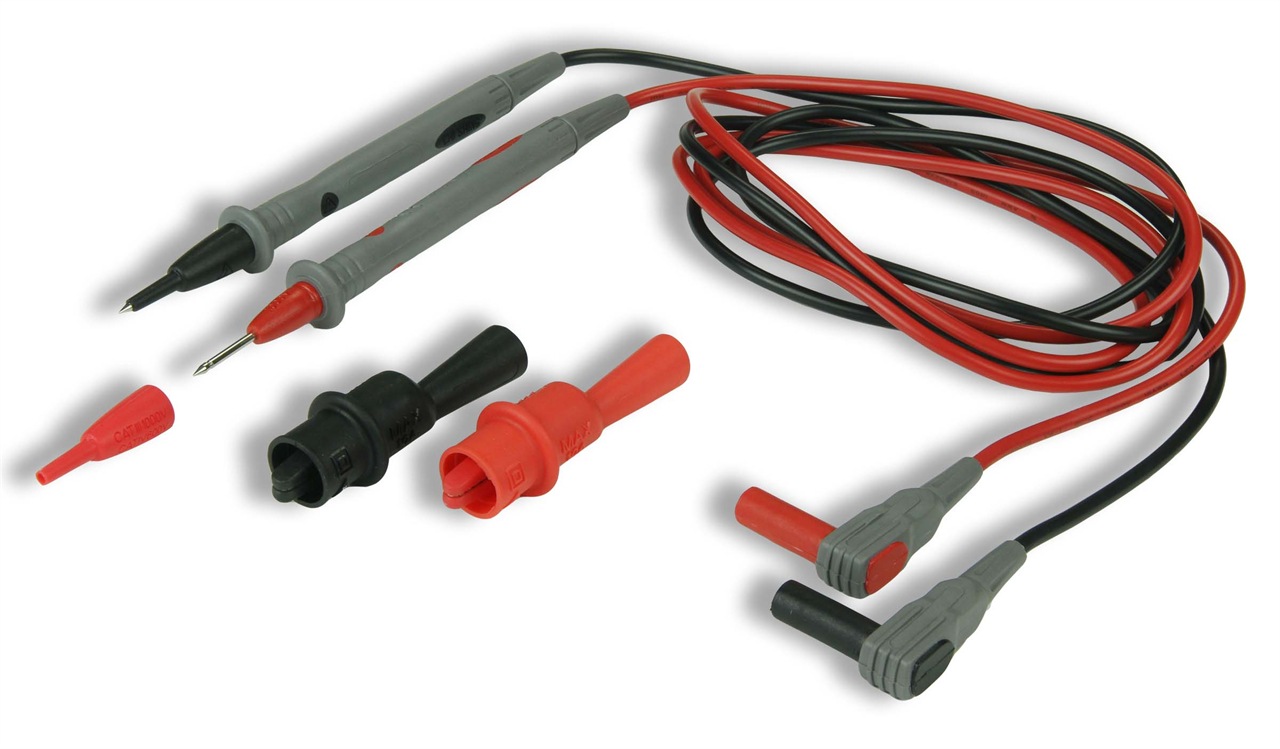

UL listed DMM probe set with 2 mm (0.080") diameter probe tip. Connector is a right-angle sheathed 4 mm banana plug. Set includes alligator clip pair featuring gold plated pin tip sockets. They mate easily onto the probe tips.
- Materials: Body: PVC/Nylon; Contact: Brass, Nickel Plt.
- Banana Contact: Phosphor Bronze, Nickel Plt.
- Alligator Clips: Steel, Nickel Plt.
Specifications
- Type
- DMM Probe
- Connector A
- DMM Probe
- Rated Voltage
- 1,000 V CAT III
- Max Current
- 12 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm²
- Jacket Material
- PVC
- OD
- 3.7mm (0.146")
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Datasheet
