CT2884-4-50

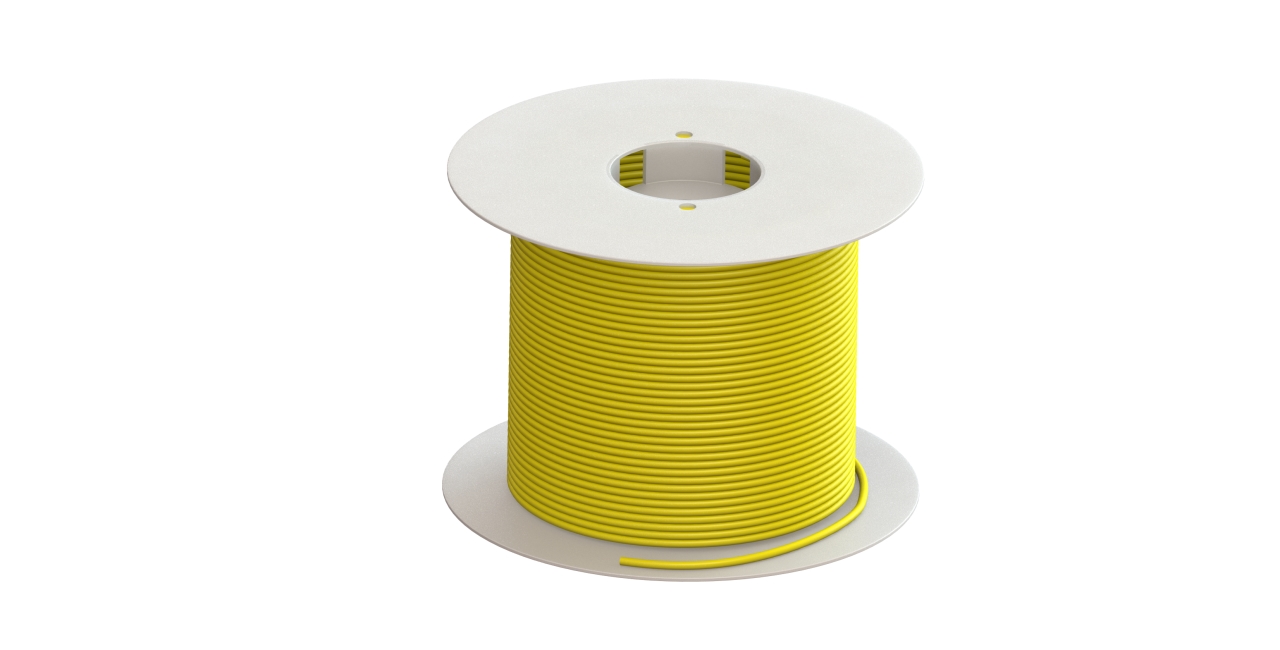

Name: CT2884-4-50 Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Yellow, 50m Spl
Brand: Cal Test Electronics
SKU: CT2884-4-50
Price: 265.0 USD
Availability: InStock

CT2884 Series

Active Catalog

Test Lead Wire

Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Yellow, 50m Spl

$265.001 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Select Variant

Length

10 m 100 m 50 m

Color

Black Blue Green Red White Yellow

Overview

Ideal test lead wire for building Do-It-Yourself (DIY) test leads, patch cords, and test fixtures. Silicone is the best test lead jacket material, combining high flexibility, even at low temperatures, with resistance to burns and chemicals. The jacket features a durable colored outer layer with an inner white layer for cut or wear visibility. The conductor is highly stranded soft bare copper for additional flexibility.

20 AWG (0.50 mm²) Silicone jacket, 10 A
Meets the safety requirements of IEC 61010-031 1000 V CAT IV.
Available in 3 Lengths, 10m, 50m & 100m
Available in 6 colors

Kit Contents

(0.5) Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Yellow, 100m Spl - CT2884-4-100

Models

Model	Description	MSRP	Status	Warranty	Length	Color	Rated Voltage	Max Current	Wire Gauge	Conductor Area	UOM
CT2884-0-10	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Black, 10m Pkg	$53.00	Active Catalog	1 Year	10 m	Black	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-0-100	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Black, 100m Spl	$530.00	Active Catalog	1 Year	100 m	Black	1000 V CAT IV	10	20 AWG	0.50 mm²
CT2884-0-50	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Black, 50m Spl	$265.00	Active Catalog	1 Year	50 m	Black	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-2-10	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Red, 10m Pkg	$53.00	Active Catalog	1 Year	10 m	Red	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-2-100	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Red, 100m Spl	$530.00	Active Catalog	1 Year	100 m	Red	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-2-50	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Red, 50m Spl	$265.00	Active Catalog	1 Year	50 m	Red	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-4-10	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Yellow, 10m Pkg	$53.00	Active Catalog	1 Year	10 m	Yellow	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-4-100	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Yellow, 100m Spl	$530.00	Active Catalog	1 Year	100 m	Yellow	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-4-50	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Yellow, 50m Spl	$265.00	Active Catalog	1 Year	50 m	Yellow	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-5-10	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Green, 10m Pkg	$53.00	Active Catalog	1 Year	10 m	Green	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-5-100	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Green, 100m Spl	$530.00	Active Catalog	1 Year	100 m	Green	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-5-50	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Green, 50m Spl	$265.00	Active Catalog	1 Year	50 m	Green	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-6-10	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Blue, 10m Pkg	$53.00	Active Catalog	1 Year	10 m	Blue	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-6-100	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Blue, 100m Spl	$530.00	Active Catalog	1 Year	100 m	Blue	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-6-50	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, Blue, 50m Spl	$265.00	Active Catalog	1 Year	50 m	Blue	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-9-10	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, White, 10m Pkg	$55.00	Active Catalog	1 Year	10 m	White	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-9-100	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, White, 100m Spl	$550.00	Special Order	1 Year	100 m	White	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
CT2884-9-50	Wire, SILIC, 130 BC 0.50, 2.7mm (.106")OD, White, 50m Spl		Discontinued	1 Year	50 m	White	1000 V CAT IV	10	20 AWG	0.50 mm²	EA
