Overview

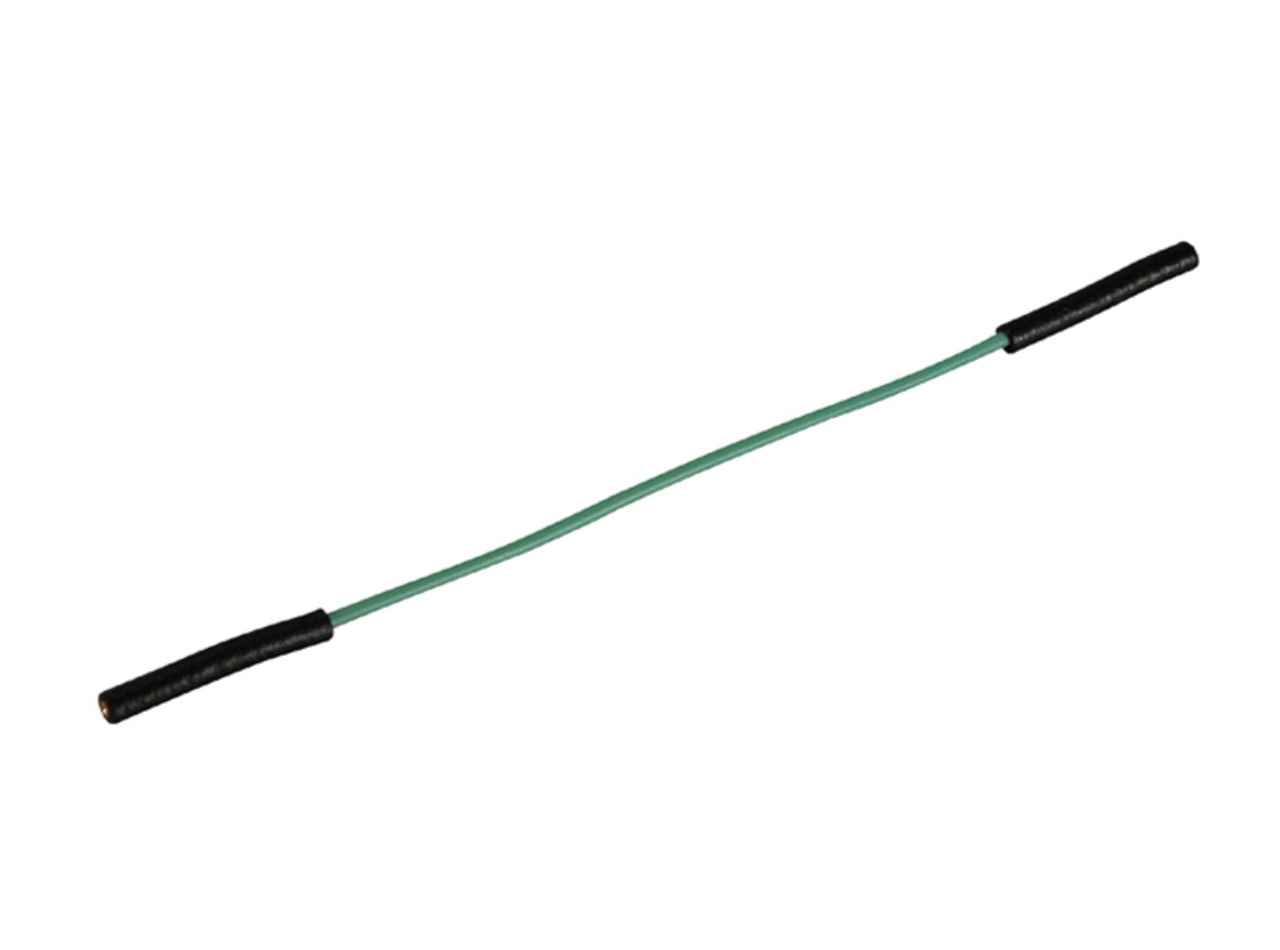

Individual lead for interconnecting Micro Clip Test Clips and MiniFlex Clips to instrument. 0.8mm (.031") female jack on both ends. Connect a MicroClip Test Clip to an oscilloscope tip.
- Highly flexible Silicone lead wire
- Material: Brass, Gold Plt.
Specifications
- Type
- MicroLead
- Connector A
- MicroLead
- Length
- 10 cm
- Color
- Black
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 2 A
- Wire Gauge
- 24 AWG
- Conductor Area
- 0.22 mm²
- Jacket Material
- Silicone
- OD
- 1.4mm (0.055")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
