Overview
Individual SMD MicroClip Test Clip for high density SMD testing. Interconnection pin is .031" (0.8 mm) diameter.
- Material: Polyamide (Nylon) w/Stainless Steel Contacts
- Use Micro Leads, .031" (0.8 mm), for interconnecting the MicroClip Test Clips to an instrument.
- Steel pincers open up to .010" (0.25 mm) and can be rotated by hand to desired attachment position
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2845-0 | MicroClip Test Clip - Black | $31.00 | Active Catalog | 1 Year | MicroClip | Black | 33 Vac / 70 Vdc | 0.5 A | -20° to +80° C | EA |
 |
CT2845-2 | MicroClip Test Clip - Red | $31.00 | Active Catalog | 1 Year | MicroClip | Red | 33 Vac / 70 Vdc | 0.5 A | -20° to +80° C | EA |
 |
CT2845-4 | MicroClip Test Clip - Yellow | $31.00 | Active Catalog | 1 Year | MicroClip | Yellow | 33 Vac / 70 Vdc | 0.5 A | -20° to +80° C | EA |
 |

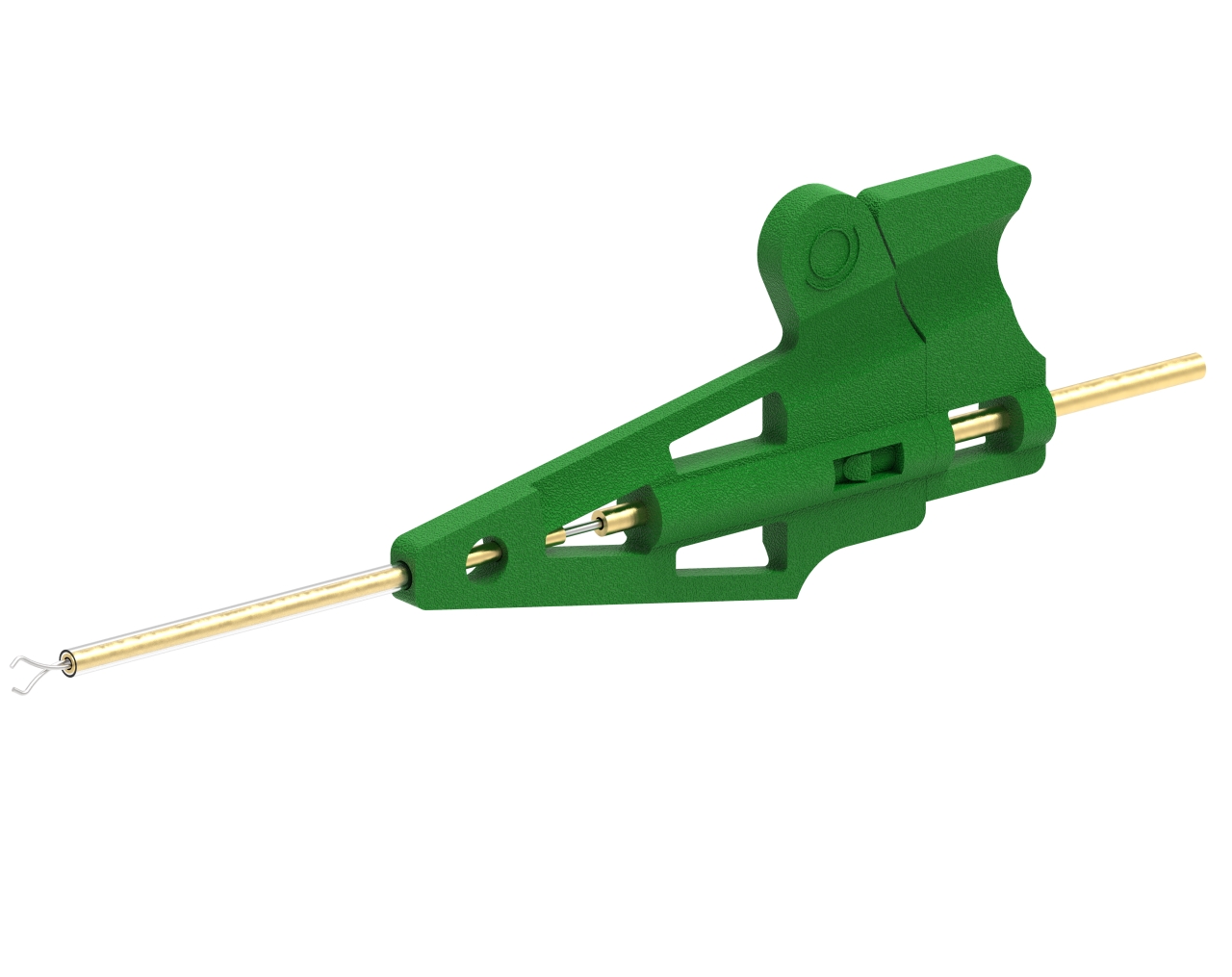

CT2845-5 | MicroClip Test Clip - Green | $31.00 | Active Catalog | 1 Year | MicroClip | Green | 33 Vac / 70 Vdc | 0.5 A | -20° to +80° C | EA |
 |
CT2845-6 | MicroClip Test Clip - Blue | $31.00 | Active Catalog | 1 Year | MicroClip | Blue | 33 Vac / 70 Vdc | 0.5 A | -20° to +80° C | EA |
 |
CT2845-9 | MicroClip Test Clip - White | $31.50 | Special Order | 1 Year | MicroClip | White | 33 Vac / 70 Vdc | 0.5 A | -20° to +80° C | EA |
Specifications
- Type
- MicroClip
- Color
- Green
- Rated Voltage
- 33 Vac / 70 Vdc
- Max Current
- 0.5 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
