CT2844A-9-50

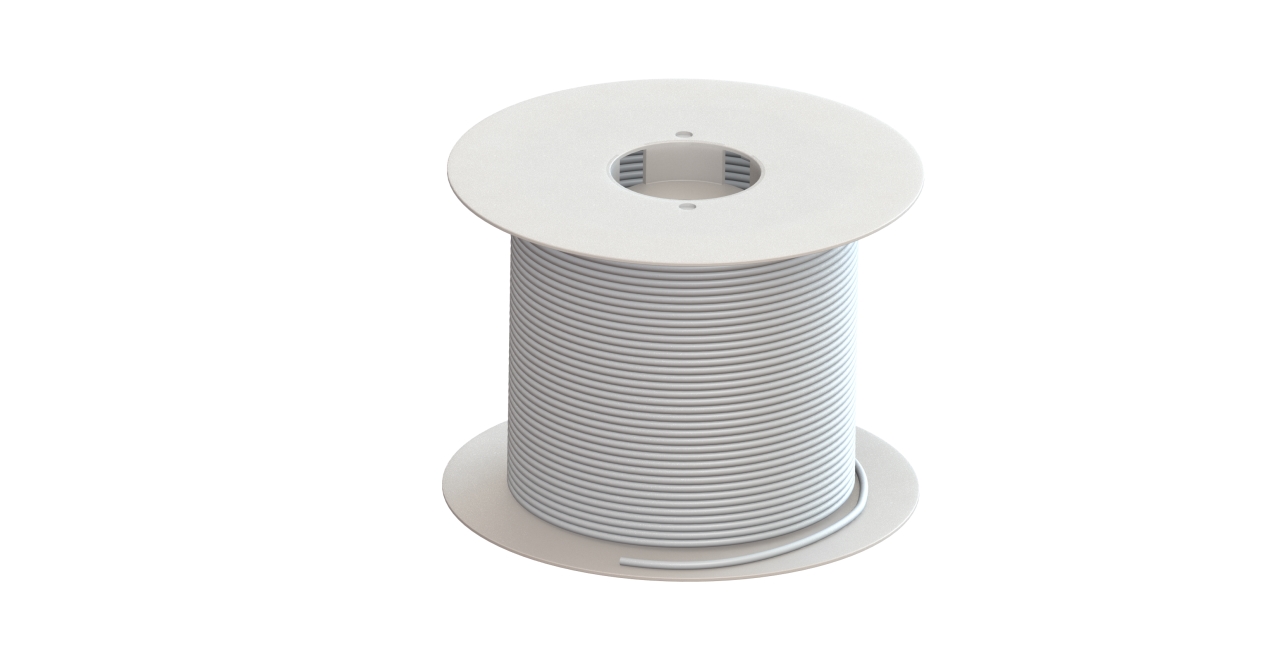

Name: CT2844A-9-50 Wire, SILIC, 651 BC 2.50, 4mm OD, White, 50m Spl
Brand: Cal Test Electronics
SKU: CT2844A-9-50
Price: 430.0 USD
Availability: InStock

CT2844A Series

Active Catalog

Test Lead Wire

Wire, SILIC, 651 BC 2.50, 4mm OD, White, 50m Spl

$430.001 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →

Select Variant

Length

10 m 100 m 50 m

Overview

Introducing the versatile CT2844A high-capacity lead wire from Cal Test Electronics: The ultimate test lead wire solution.

Discover the unparalleled flexibility and performance of the CT2844A. Available in three convenient lengths – 10m, 50m, and 100m; and in highly desirable Red and Black colors, this test lead wire is designed to meet your operational needs.

Experience the remarkable pliability of the CT2844A's silicone insulation and high stranded (651 strands) bare copper center conductor. The result is one of the most flexible test lead wires available in the market today.

True to its purpose, the CT2844A's silicone jacket boasts a thickness that surpasses standard hook-up wires, ensuring maximum durability, along with a white inner layer which acts as a wear indicator, allowing you to easily detect damage or wear.

Rest assured in high voltage or high current test situations, the CT2844A Series is certified to 1,000 V CAT IV. You can tackle even the most demanding tests with confidence, upgrade your testing experience with the Cal Test Electronics CT2844A, and let its superior flexibility and reliability power your projects to success.

Experience the Unmatched Benefits of the CT2844A:

13 AWG (2.50 mm²) bare copper wire
Double insulated silicone jacket
Highly flexible stranded conductor (651 x 0.07mm)
White inner layer damage and wear indicator
Higher temperature rating compared to PVC: +180°C vs. +80°C
36 A capacity
IEC rating: 1,000 V CAT IV
RoHS 2 compliant
One-year warranty

Kit Contents

(0.5) Wire, SILIC, 651 BC 2.50, 4mm OD, White, 100m Spl - CT2844A-9-100

Models

Model	Description	MSRP	Status	Warranty	Length	Color	Rated Voltage	Max Current	Wire Gauge	Conductor Area	UOM
CT2844A-0-10	Wire, SILIC, 651 BC 2.50, 4mm OD, Black, 10m Pkg	$86.00	Active Catalog	1 Year	10 m	Black	1000 V CAT IV	36	13 AWG	2.50 mm²	EA
CT2844A-0-100	Wire, SILIC, 651 BC 2.50, 4mm OD, Black, 100m Spl	$855.00	Active Catalog	1 Year	100 m	Black	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2844A-0-1000	Wire, SILIC, 651 BC 2.50, 4mm OD, Black, 1000m Spl	$8,570.00	Special Order	1 Year							EA
CT2844A-0-50	Wire, SILIC, 651 BC 2.50, 4mm OD, Black, 50m Spl	$430.00	Active Catalog	1 Year	50 m	Black	1000 V CAT IV	36	13 AWG	2.50 mm²	EA
CT2844A-2-10	Wire, SILIC, 651 BC 2.50, 4mm OD, Red, 10m Pkg	$86.00	Active Catalog	1 Year	10 m	Red	1000 V CAT IV	36	13 AWG	2.50 mm²	EA
CT2844A-2-100	Wire, SILIC, 651 BC 2.50, 4mm OD, Red, 100m Spl	$855.00	Active Catalog	1 Year	100 m	Red	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2844A-2-1000	Wire, SILIC, 651 BC 2.50, 4mm OD, Red, 1000m Spl	$8,570.00	Special Order	1 Year							EA
CT2844A-2-50	Wire, SILIC, 651 BC 2.50, 4mm OD, Red, 50m Spl	$430.00	Active Catalog	1 Year	50 m	Red	1000 V CAT IV	36	13 AWG	2.50 mm²	EA
CT2844A-4-10	Wire, SILIC, 651 BC 2.50, 4mm OD, Yellow, 10m Pkg	$86.00	Active Catalog	1 Year							EA
CT2844A-4-100	Wire, SILIC, 651 BC 2.50, 4mm OD, Yellow, 100m Spl	$855.00	Active Catalog	1 Year							EA
CT2844A-4-50	Wire, SILIC, 651 BC 2.50, 4mm OD, Yellow, 50m Spl	$430.00	Active Catalog	1 Year							EA
CT2844A-5-10	Wire, SILIC, 651 BC 2.50, 4mm OD, Green, 10m Pkg	$86.00	Active Catalog	1 Year							EA
CT2844A-5-100	Wire, SILIC, 651 BC 2.50, 4mm OD, Green, 100m Spl	$855.00	Active Catalog	1 Year							EA
CT2844A-5-50	Wire, SILIC, 651 BC 2.50, 4mm OD, Green, 50m Spl	$430.00	Active Catalog	1 Year							EA
CT2844A-6-10	Wire, SILIC, 651 BC 2.50, 4mm OD, Blue, 10m Pkg	$86.00	Active Catalog	1 Year							EA
CT2844A-6-100	Wire, SILIC, 651 BC 2.50, 4mm OD, Blue, 100m Spl	$855.00	Active Catalog	1 Year							EA
CT2844A-6-50	Wire, SILIC, 651 BC 2.50, 4mm OD, Blue, 50m Spl	$430.00	Active Catalog	1 Year							EA
CT2844A-9-10	Wire, SILIC, 651 BC 2.50, 4mm OD, White, 10m Pkg	$86.00	Active Catalog	1 Year							EA
CT2844A-9-100	Wire, SILIC, 651 BC 2.50, 4mm OD, White, 100m Spl	$855.00	Active Catalog	1 Year							EA
CT2844A-9-50	Wire, SILIC, 651 BC 2.50, 4mm OD, White, 50m Spl	$430.00	Active Catalog	1 Year							EA
