Overview

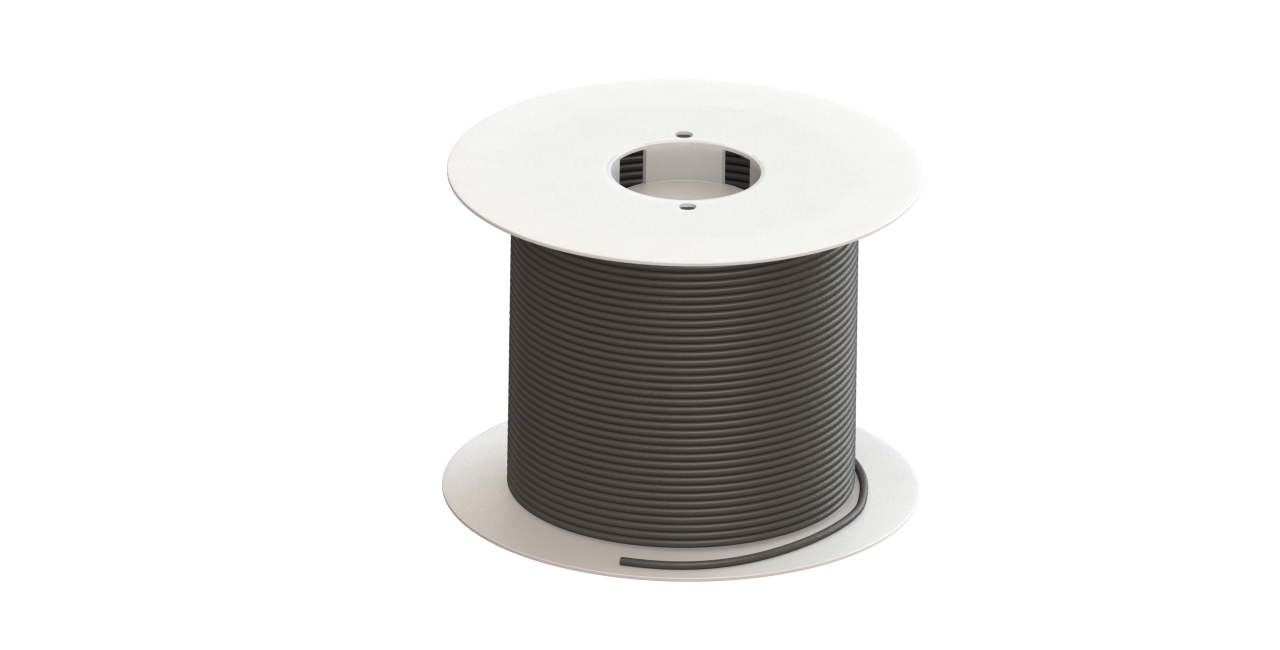

This PVC-jacketed test lead wire offers a cost-effective, high-quality solution for test leads and patch cords. It features a dual-layer PVC jacket with a durable colored outer layer and a white inner layer to provide clear visibility in case of cuts or wear. The conductor is made of highly stranded, soft bare copper, ensuring superior flexibility and performance.
Features:
- 18 AWG (0.75 mm2) PVC jacketed wire, rated for 12 A
- Certified to IEC 61010-031 safety standard, 1,000 V CAT IV
- Available in 10 m, 50 m, and 100 m lengths
- Offered in six color options
Kit Contents
- (0.5) Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Black 100m Spl - CT2837A-0-100
Models
| Image | Model | Description | MSRP | Status | Warranty | Length | Color | Rated Voltage | Max Current | Wire Gauge | Conductor Area | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2837A-0-10 | Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Black 10m Spl | $25.00 | Active Catalog | 1 Year | 10 m | Black | 1000 V CAT IV | 12 | 18 AWG | 0.75 mm² | EA |
 |
CT2837A-0-100 | Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Black 100m Spl | $250.00 | Active Catalog | 1 Year | 100 m | Black | 1000 V CAT IV | 12 | 18 AWG | 0.75 mm² | EA |
 |
CT2837A-0-50 | Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Black 50m Spl | $125.00 | Active Catalog | 1 Year | 50 m | Black | 1000 V CAT IV | 12 | 18 AWG | 0.75 mm² | EA |
 |
CT2837A-2-10 | Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Red, 10m Spl | $25.00 | Active Catalog | 1 Year | 10 m | Red | 1000 V CAT IV | 12 | 18 AWG | 0.75 mm² | |
 |
CT2837A-2-100 | Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Red, 100m Spl | $250.00 | Active Catalog | 1 Year | 100 m | Red | 1000 V CAT IV | 12 | 18 AWG | 0.75 mm² | |
 |
CT2837A-2-50 | Wire, PVC, 154 BC 0.75, 3.65mm (.144")OD, Red, 50m Spl | $125.00 | Active Catalog | 1 Year | 50 m | Red | 1000 V CAT IV | 12 | 18 AWG | 0.75 mm² |
Specifications
- Length
- 50 m
- Color
- Black
- Rated Voltage
- 1000 V CAT IV
- Max Current
- 12
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm²
- OD
- 3.65 mm (0.144")
- Stranding
- 154 x 0.08 mm
- Insulation Material
- PVC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Product Drawing
