Product resources

CT2837-9-10

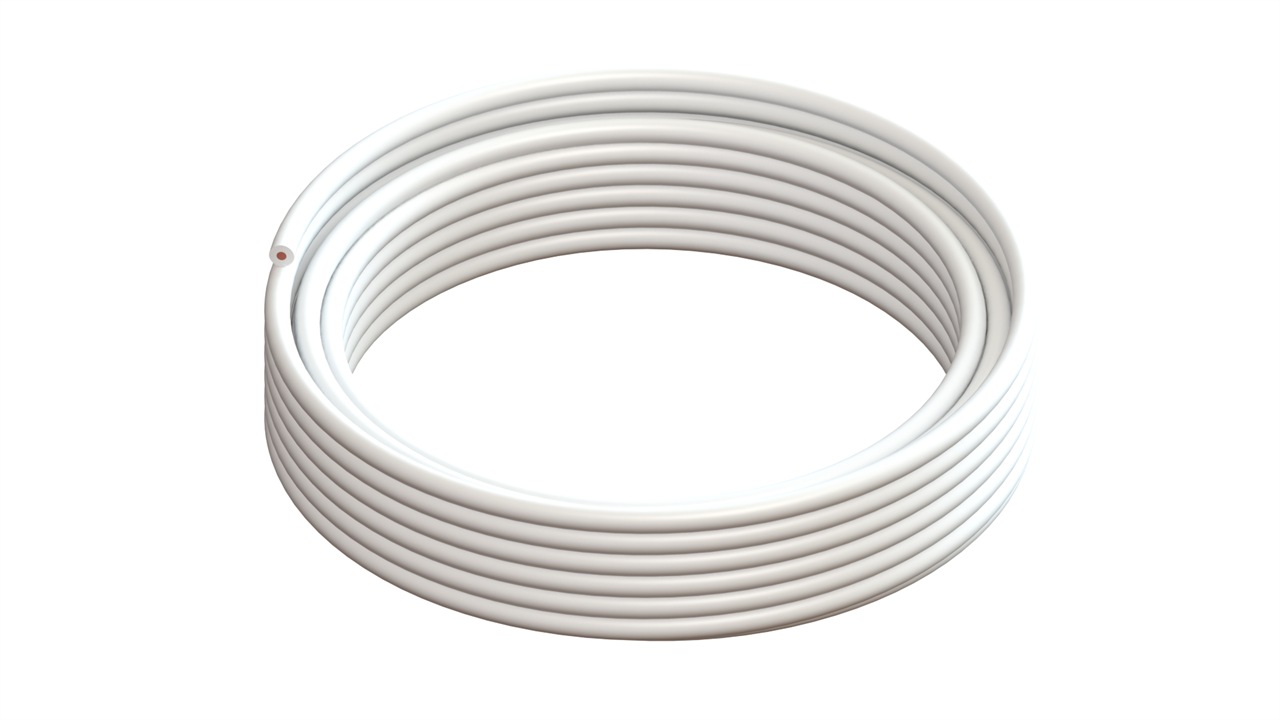

Name: CT2837-9-10 Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, White, 10m Pkg
Brand: Cal Test Electronics
SKU: CT2837-9-10
Price: 35.0 USD
Availability: Discontinued

CT2837 Series

Discontinued

Test Lead Wire

Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, White, 10m Pkg

1 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Select Variant

Length

10 m 100 m 50 m

Color

Black Blue Green Red White Yellow

Overview

PVC jacketed test lead wire is the choice for cost effective, high quality test leads and patch cords. The jacket features a durable colored outer layer with an inner white layer for cut or wear visibility. The conductor is highly stranded soft bare copper for additional flexibility.

18 AWG (0.75 mm²) PVC jacket, 12 A
Meets the safety requirements of IEC 61010-031 1000 V CAT IV.
Available in 3 Lengths, 10m, 50m & 100m
Available in 6 colors

Models

Model	Description	MSRP	Status	Warranty	Length	Color	Rated Voltage	Max Current	Wire Gauge	Conductor Area	UOM
CT2837-0-10	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Black 10m Pkg		Discontinued	1 Year	10 m	Black	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-0-100	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Black 100m Spl		Discontinued	1 Year	100 m	Black	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-0-50	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Black 50m Spl		Discontinued	1 Year	50 m	Black	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-2-10	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Red, 10m Pkg		Discontinued	1 Year	10 m	Red	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-2-100	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Red, 100m Spl		Discontinued	1 Year	100 m	Red	1000 V CAT IV	12	18 AWG	0.75 mm²
CT2837-2-50	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Red, 50m Spl		Discontinued	1 Year	50 m	Red	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-4-10	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Yellow, 10m Pkg		Discontinued	1 Year	10 m	Yellow	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-4-100	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Yellow, 100m Spl	$330.00	Active Catalog	1 Year	100 m	Yellow	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-4-50	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Yellow, 50m Spl		Discontinued	1 Year	50 m	Yellow	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-5-10	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Green, 10m Pkg		Discontinued	1 Year	10 m	Green	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-5-100	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Green, 100m Spl	$330.00	Active Catalog	1 Year	100 m	Green	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-5-50	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Green, 50m Spl		Discontinued	1 Year	50 m	Green	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-6-10	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Blue, 10m Pkg		Discontinued	1 Year	10 m	Blue	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-6-100	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Blue, 100m Spl	$330.00	Active Catalog	1 Year	100 m	Blue	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-6-50	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, Blue, 50 Spl		Discontinued	1 Year	50 m	Blue	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-9-10	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, White, 10m Pkg		Discontinued	1 Year	10 m	White	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
CT2837-9-100	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, White, 100m Spl		Discontinued	1 Year	100 m	White	1000 V CAT IV	12	18 AWG	0.75 mm²
CT2837-9-50	Wire, PVC, 195 BC 0.75, 3.7mm (.146")OD, White, 50m Spl		Discontinued	1 Year	50 m	White	1000 V CAT IV	12	18 AWG	0.75 mm²	EA
