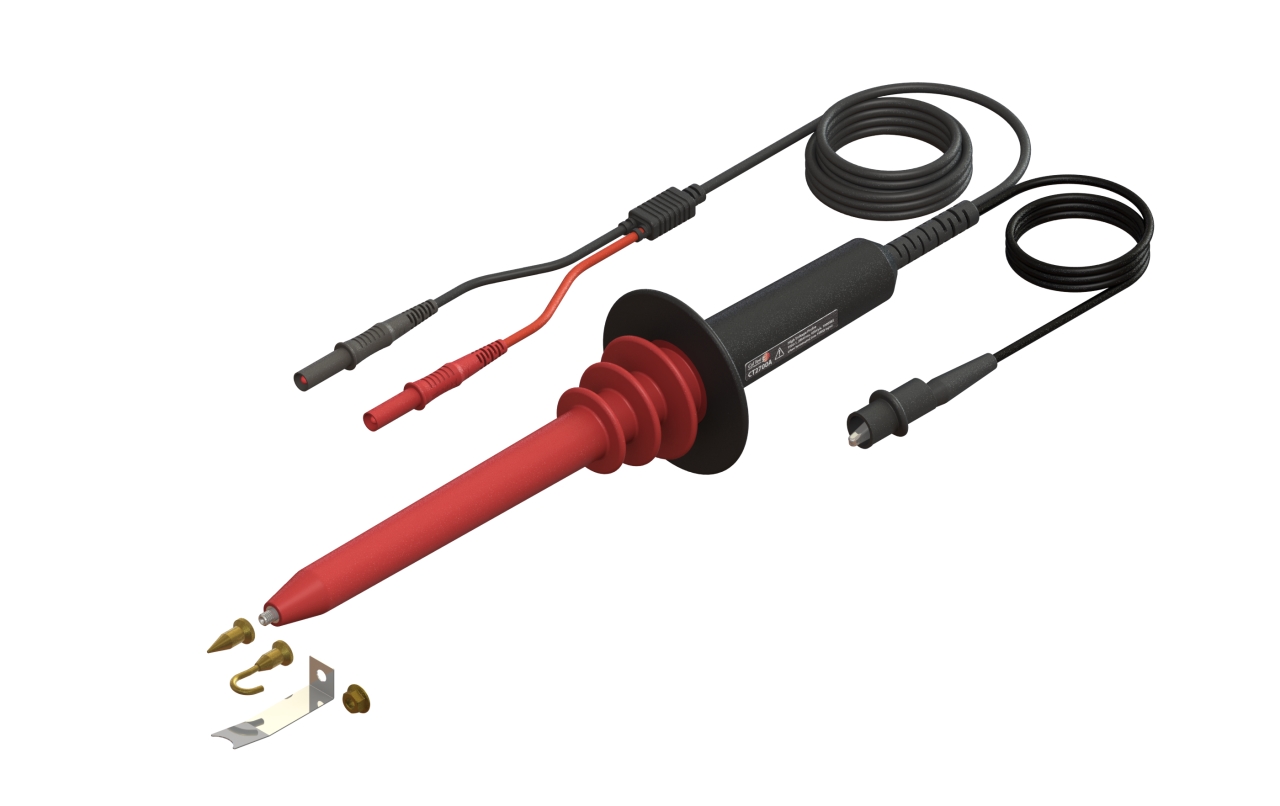

CT2700A

Cal Test Electronics introduces the CT2700A High Voltage DMM Probe, the successor to the CT2700. This probe is designed to be used with a digital multimeter having a 10 MΩ input impedance, enabling accurate measurement of voltages up to 40 kV DC (28 kV AC). The probe's 1,000x attenuation ratio simplifies readings, with 1 V displayed equating to 1000 V actual. With the integration of 4 mm fixed sheathed banana plugs, this probe adheres to the latest IEC 61010-031 international safety standard. Backed by 1-year warranty and RoHS 2 compliant, the CT2700A probe is the tool for your high voltage measurement needs. The Probe is intended for low-energy, non-category applications.

The CT2700A features:

• Divider Ratio: 1000:1
• Voltage Max: 40 kV (DC+ AC peak) or 28 kVrms AC
• Accuracy: ±1% to 20 kV DC
• Meter Impedance: 10 MΩ Minimum
• Input Impedance: 1000 MΩ
• RoHS 2 Compliant
• 1 year warranty for added peace of mind
