Product resources
CT2696C
CT2696C Series
Active CatalogDigital Multimeter Accessory Kit
General Purpose Handheld DMM Kit w/Right-Angle Plugs
$61.001 Year Warranty
Overview
This kit is an accumulation of the most popular accessories for use with a hand-held digital multimeter - DMM. Accessories come in a clear pouch for convenient storage and components are compatible with major manufacturer's multimeters.
- Meets IEC 61010-031 safety standard
- Caps on probes provide CAT III / CAT IV rating
- Sprung hooks snap-lock to probe bodies
- Flexible silicone jacketed test lead wire
- Right-angle 4mm sheath banana plug for meter connection
- RoHS 2
- Packaged in Clear PVC Storage Pouch

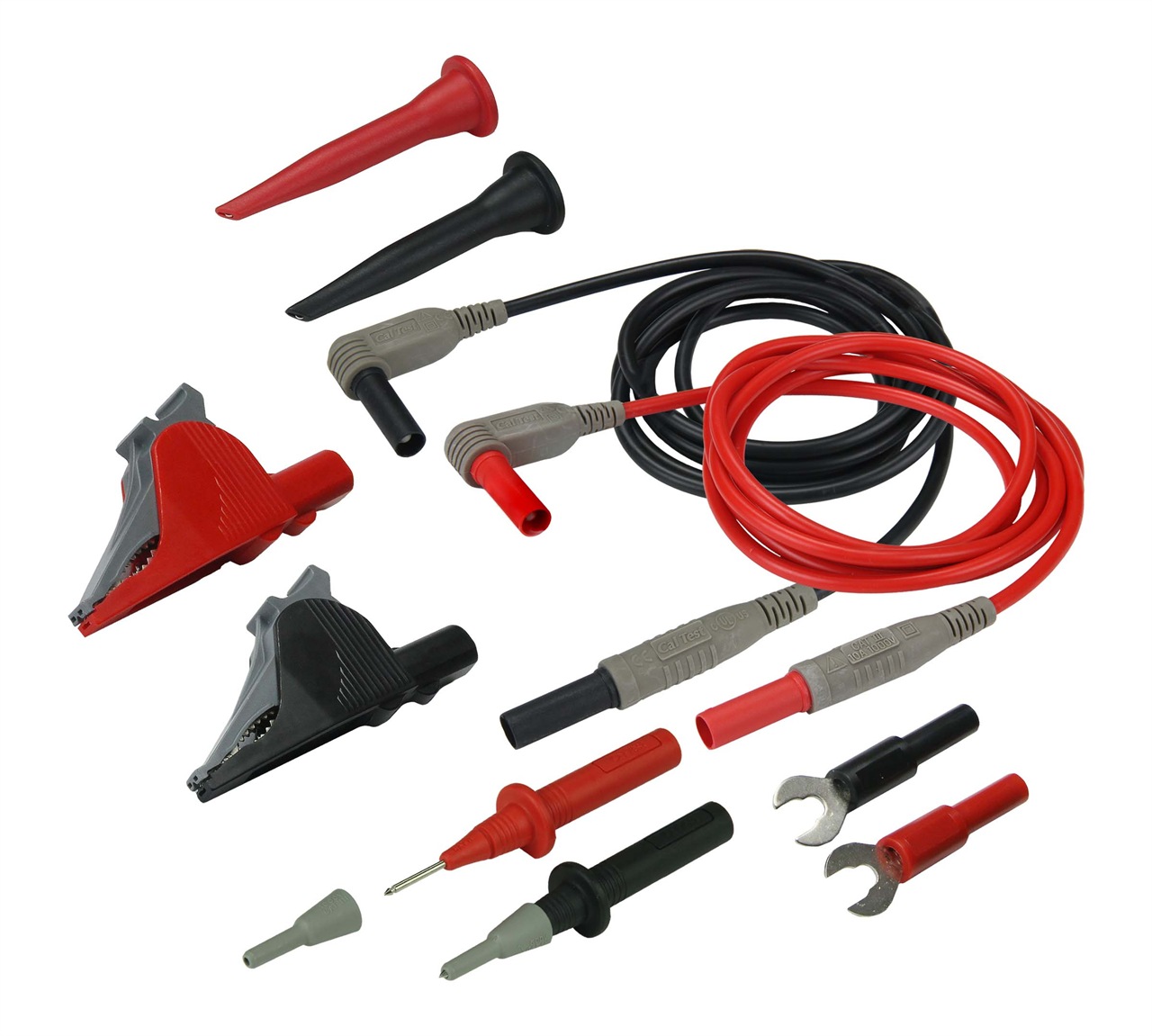

Kit contains:
-(2) Probe Body, 2mm Tip w/Safety Cap: (1) Black, (1) Red - (CT3975)
-(2) Adapter 6mm Spade 4mm Jack: (1) Black, (1) Red - (CT2661)
-(2) Sprung Hook: (1) Black, (1) Red - (CT3947)
-(2) Banana Test Lead Sheath Plug to Right-Angle Plug, Silicone Jacket, 150cm (60"): (1) Black, (1) Red - (CT3754-150)
-(2) Insulated Alligator Clip, Extra Large: (1) Black, (1) Red - (CT3286)
Kit Contents
- (1) Pouch, Clear Polyethylene - 451033-001
- (1) Adapter, 6mm Spade 4mm J - Black - CT2553-0
- (1) Adapter, 6mm Spade 4mm J - Red - CT2553-2
- (1) Insulated Alligator Clip, Ex-Large (Elephant Clip), Black - CT3251-0
- (1) Insulated Alligator Clip, Ex-Large (Elephant Clip), Red - CT3251-2
- (1) Lead, Shth P-Shth RaP - SILIC 0.82, 150cm, Black; CT UL - CT3753-150-0
- (1) Lead, Shth P-Shth RaP - SILIC 0.82, 150cm, Red; CT UL - CT3753-150-2
- (1) Sprung Hook Adapter, 3900B Series UL, B/R Pair - CT3947B
- (1) Probe Body w/Lock Cap, 3900B Series UL, B/R Pair - CT3975B
Specifications
- Type
- Digital Multimeter(DMM)
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Manual
Documents
- ManualManual
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
