CT2661

Name: CT2661 Adapter, 6mm Spade 4mm J - Pair (Black, Red)
Brand: Cal Test Electronics
SKU: CT2661
Price: 10.0 USD
Availability: InStock

CT2661 Series

Active Catalog

DMM Probe Spade Lug Adapter

Adapter, 6mm Spade 4mm J - Pair (Black, Red)

$10.001 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	46 in stock	Buy Now →
MOUSER ELECTRONICS	1 in stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Overview

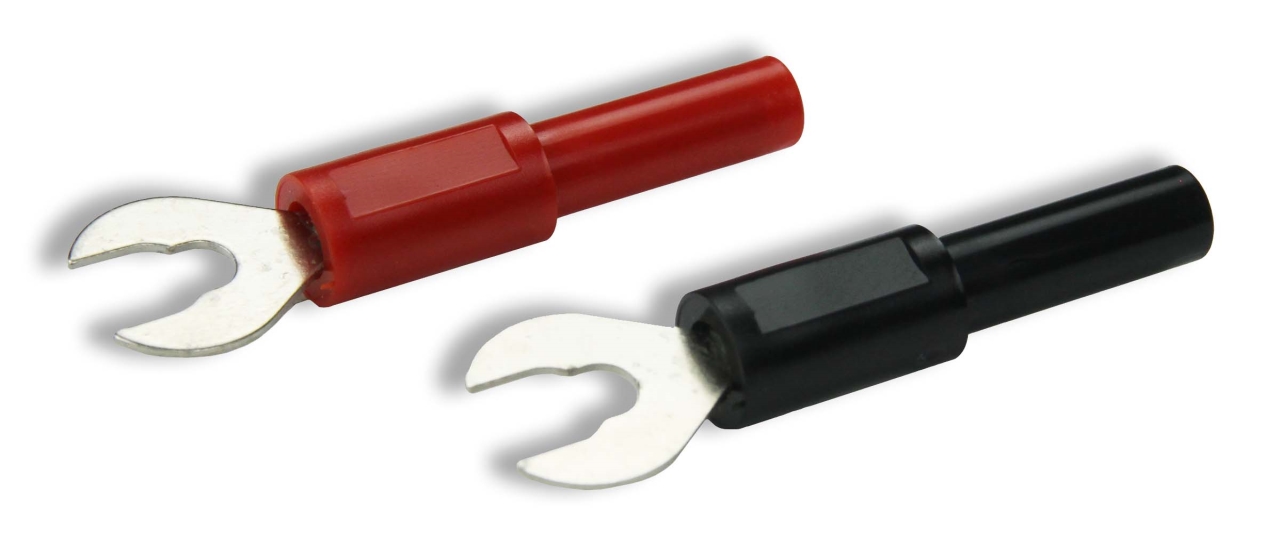

2 pieces of 6/4 mm Spade Lug to 4mm jack, pair Black and Red. Accepts 4 mm sheathed banana plugs. Use to connect to terminal or binding post.

Black and Red colors
Materials: Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.

Kit Contents

(1) Adapter, 6mm Spade 4mm J - Black - CT2553-0
(1) Adapter, 6mm Spade 4mm J - Red - CT2553-2

Specifications

Type: Digital Multimeter (DMM)
Rated Voltage: 30 Vac / 60 Vdc
Max Current: 36 A
Export Control Classification Number (ECCN): EAR99
REACH Compliance: Compliant
RoHS Compliance: RoHS 2 (2015/863/EU) Compliant
Schedule B Number: 8536.90.4000
Country of Origin: France
Lead Time: 84 days
See More Specifications: Datasheet
