Overview

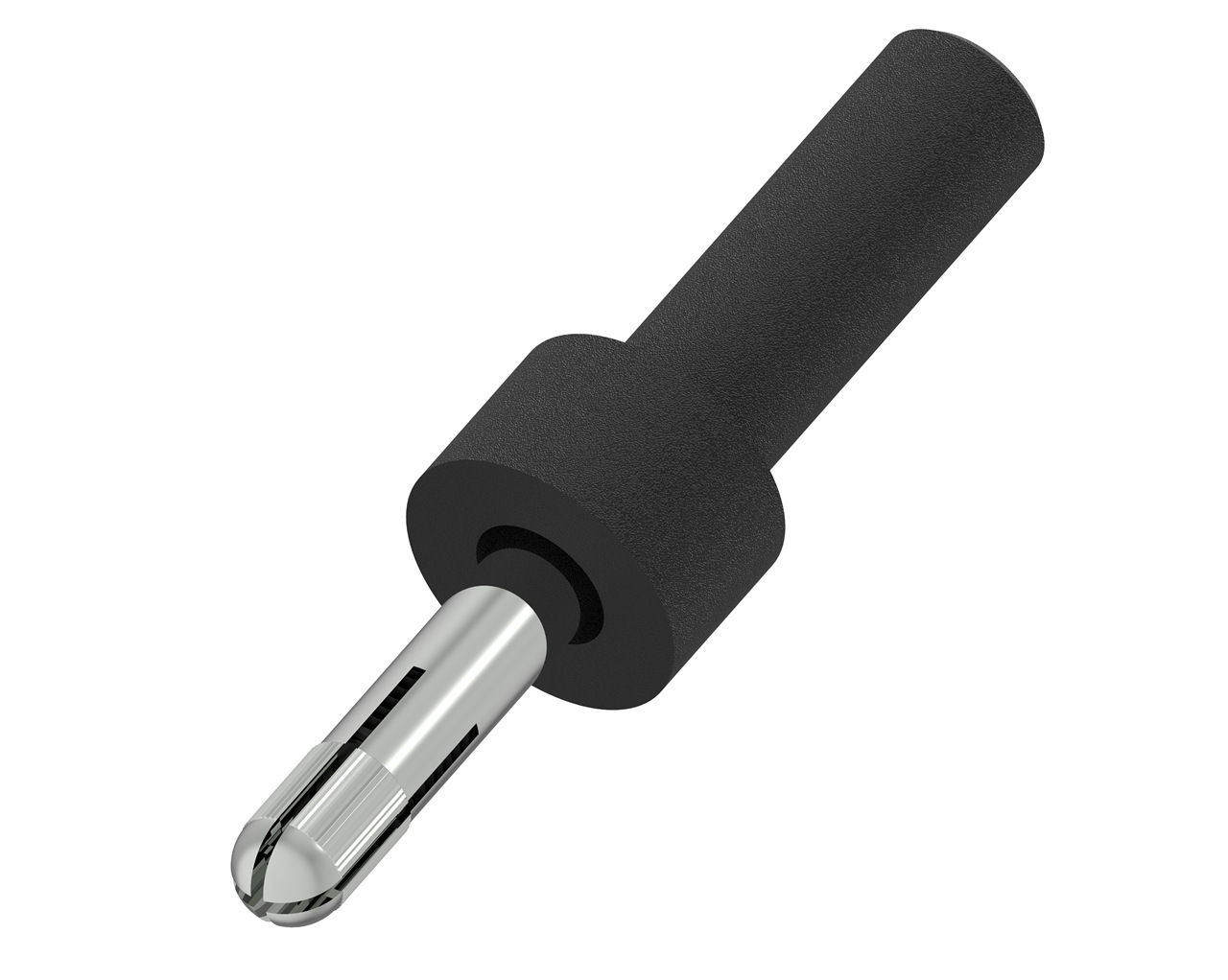

Turns a standard 4 mm banana jack into a Sheathed jack. The jack will now accept a sheathed 4 mm banana plug. Assemble with a 1.5 mm Allen wrench (CT2919) to provide a firm attachment. Lower voltage specification than CT2247.
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2575-0 | 4mm Slim Safety Adapter - Black | $4.20 | Active Catalog | 1 Year | Sheathed | 400 V CAT I | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT2575-2 | 4mm Slim Safety Adapter - Red | $4.20 | Active Catalog | 1 Year | Sheathed | 400 V CAT I | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 400 V CAT I
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
