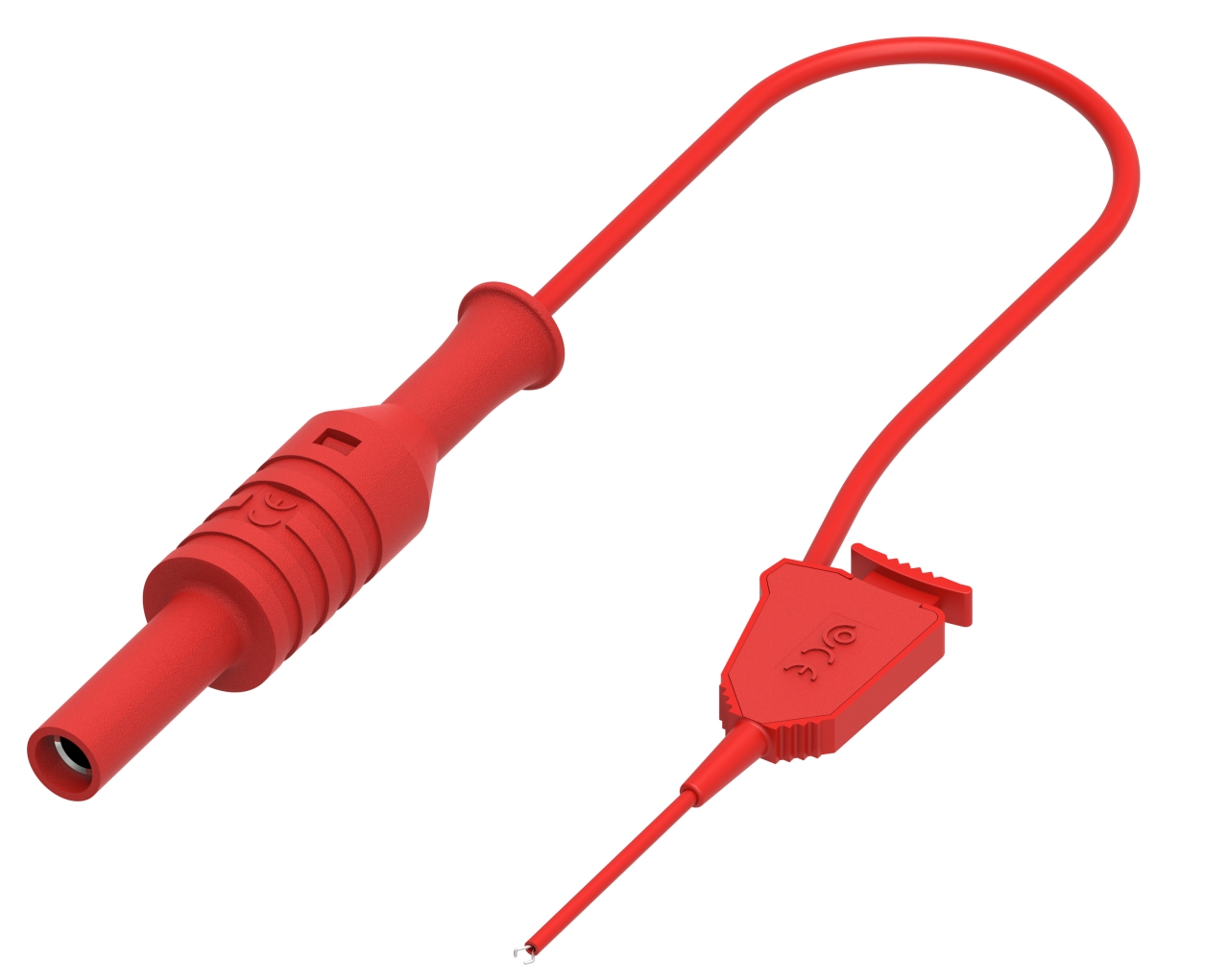

CT2551-50-2

Overview

Models

Image	Model	Description	MSRP	Status	Warranty	Type	Connector A	Connector B	Length	Color	Rated Voltage	Max Current	Wire Gauge	UOM
	CT2551-10-0	MiniFlex Clip to 4mm J - SILIC 0.40, 10cm, Black	$32.00	Active Catalog	1 Year	MiniFlexClip	MiniFlexClip	4mm Jack, MiniFlex Clip	10 cm	Black	33 VAC / 70 VDC	1 A	21 AWG	EA
	CT2551-10-2	MiniFlex Clip to 4mm J - SILIC 0.40, 10cm, Red	$32.00	Active Catalog	1 Year	MiniFlexClip	MiniFlexClip	4mm Jack, MiniFlex Clip	10 cm	Red	33 VAC / 70 VDC	1 A	21 AWG	EA
	CT2551-50-0	MiniFlex Clip to 4mm J - SILIC 0.40, 50cm, Black	$34.00	Active Catalog	1 Year	MiniFlexClip	MiniFlexClip	4mm Jack, MiniFlex Clip	50 cm	Black	33 VAC / 70 VDC	1 A	21 AWG	EA
	CT2551-50-2	MiniFlex Clip to 4mm J - SILIC 0.40, 50cm, Red	$34.00	Active Catalog	1 Year	MiniFlexClip	MiniFlexClip	4mm Jack, MiniFlex Clip	50 cm	Red	33 VAC / 70 VDC	1 A	21 AWG	EA

Specifications

Type

MiniFlexClip

Connector A

MiniFlexClip

Connector B

4mm Jack, MiniFlex Clip

Length

50 cm

Color

Red

Rated Voltage

33 VAC / 70 VDC

Max Current

1 A

Wire Gauge

21 AWG

Conductor Area

0.40 mm²

Jacket Material

Silicone

OD

2.1mm (0.083")

Operating Temperature

-20° to +80°C

Export Control Classification Number (ECCN)

EAR99

REACH Compliance

Compliant

RoHS Compliance

RoHS 2 (2015/863/EU) Compliant

Schedule B Number

9030.90.8010

Country of Origin

France

Lead Time

56 days

See More Specifications

Datasheet

Documents

• DatasheetDatasheet
• REACH StatementCompany Document
• RoHS DirectiveCompany Document
• PFAS - Certificate of ComplianceCompany Document
