Overview

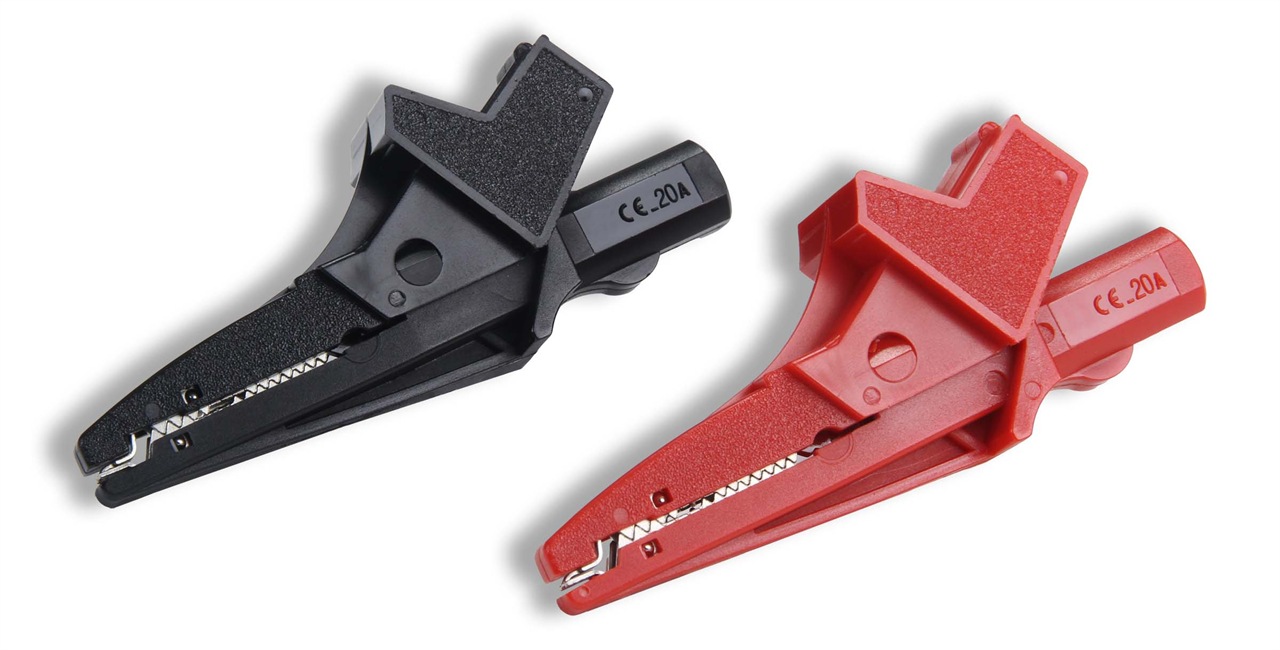

Fully insulated large jaw alligator clip pair, Black and Red, with safety 4mm jack. Jaw opens to 25 mm (0.96"). Meets IEC 61010-031 safety standards.
- Black and Red colors
- Materials: Body: Polypropylene; Contact: Brass, Nickel Plt.
- Sold individually as CT2392A
Kit Contents
Specifications
- Type
- Fully Insulated
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV
- Max Current
- 20 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
