CT2489
CT2401 Series
Active CatalogFlexible Hook Clip
Flex Hook Clip Set - B/R
$52.001 Year Warranty
Where to Buy
Overview

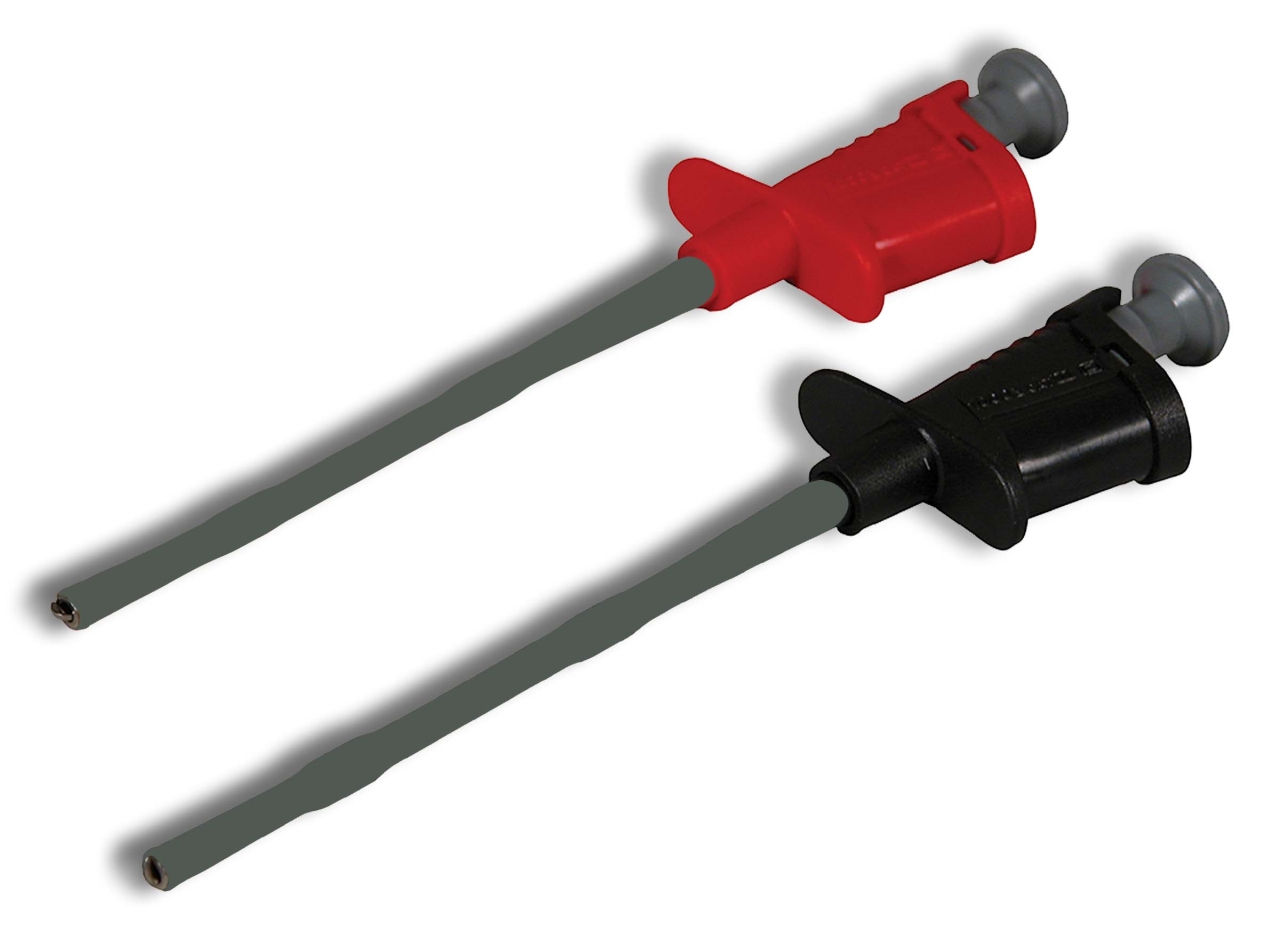

Flexible 6" Hook Clip with 4 mm Banana Jack Interconnect. Hook style contact can fit terminals to 5 mm (0.20") in diameter and can be rotated for easy connection. Flexible shaft bendable to 90 deg.
- Materials: Body: Polyamide (Nylon) and Santoprene; Contact: Brass, Nickel Plt.
Kit Contents
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2401-0 | Flex Hook Clip - Black | $26.00 | Active Catalog | 1 Year | Hook | Black | 1,000 V CAT III | 6 A | -20° to +80° C | EA |
 |
CT2401-2 | Flex Hook Clip - Red | $26.00 | Active Catalog | 1 Year | Hook | Red | 1,000 V CAT III | 6 A | -20° to +80° C | EA |
 |
CT2489 | Flex Hook Clip Set - B/R | $52.00 | Active Catalog | 1 Year | Hook | B/R Pair | 1,000 V CAT II | 6 A | -20° to +80° C | EA |
Specifications
- Type
- Hook
- Color
- B/R Pair
- Rated Voltage
- 1,000 V CAT II
- Max Current
- 6 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
