Product resources
Overview

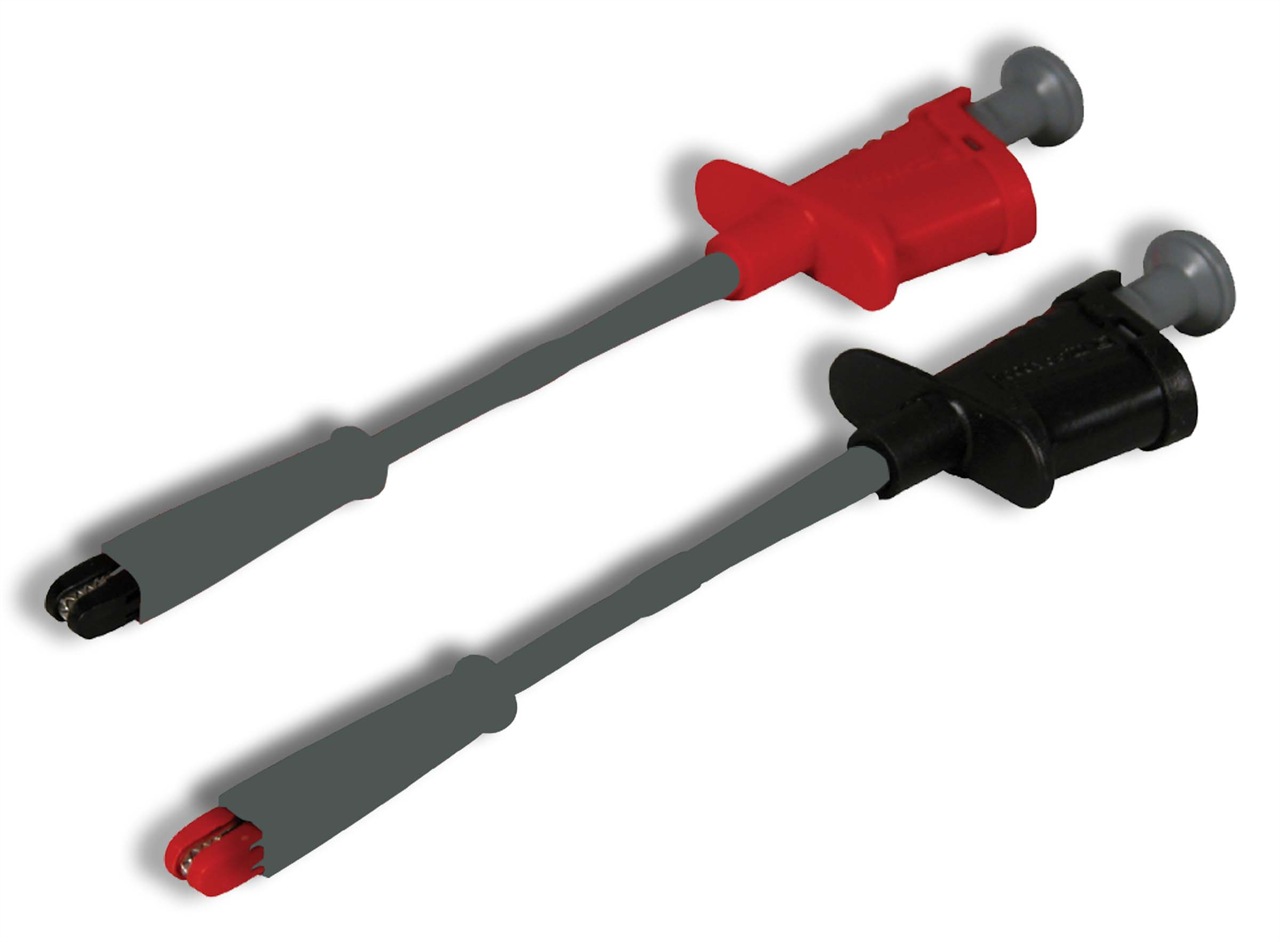

Alligator style contact can grasp terminals to 12.7 mm (0.50") in diameter overall length 6". Insulation on alligator contact protects against shorting. Alligator Clip includes 4 mm Banana Jack interconnect to Digital Multimeter.
- Black and Red colors
- Materials: Body: Polyamide (Nylon) and Santoprene; Contact: Brass, Nickel Plt.
Kit Contents
Specifications
- Type
- Alligator
- Color
- B/R Pair
- Rated Voltage
- 1,000 V CAT II
- Max Current
- 6 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
