CT2485
CT2485 Series

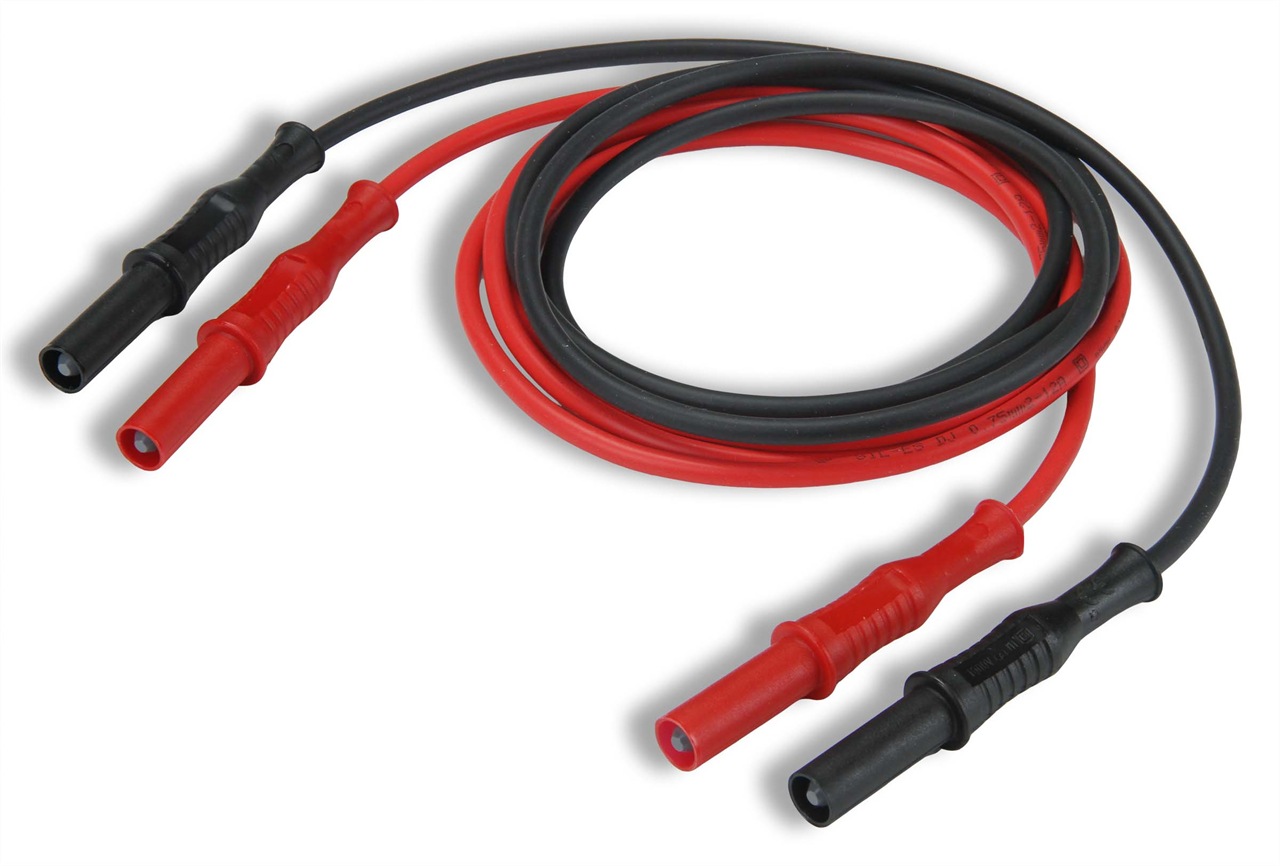

Active CatalogBanana Plug Test Lead Set
Lead Set, 4mm Shth P-P - SILIC 0.75, 150cm, B/R
$40.001 Year Warranty
Where to Buy
Select Variant
Length
Overview
Test lead pair, Black and Red. Straight to straight sheathed banana plugs for interconnecting instruments, probes and clips. Test Lead Wire is Silicone jacketed, 0.75 mm2 (18 AWG), length 150 cm (60").
- Rated to 1,000 V CAT IV
- Black and Red colors
- Silicone Jacket
- Safety plug tips (grey)
Kit Contents
- (1) Lead, 4mm Shth P-P - SILIC 0.75, 150cm, Black - CT2162-150-0
- (1) Lead, 4mm Shth P-P - SILIC 0.75, 150cm, Red - CT2162-150-2
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 150 cm (60")
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 12 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm²
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
