CT2405A
CT2405A Series
Active CatalogMiniPro Test Clip Lead, Set of 8
Leads, MiniPRO 8pc Kit - PVC 0.40, 100cm, 6 Colors
$66.001 Year Warranty
Where to Buy
Select Variant
Length
Overview

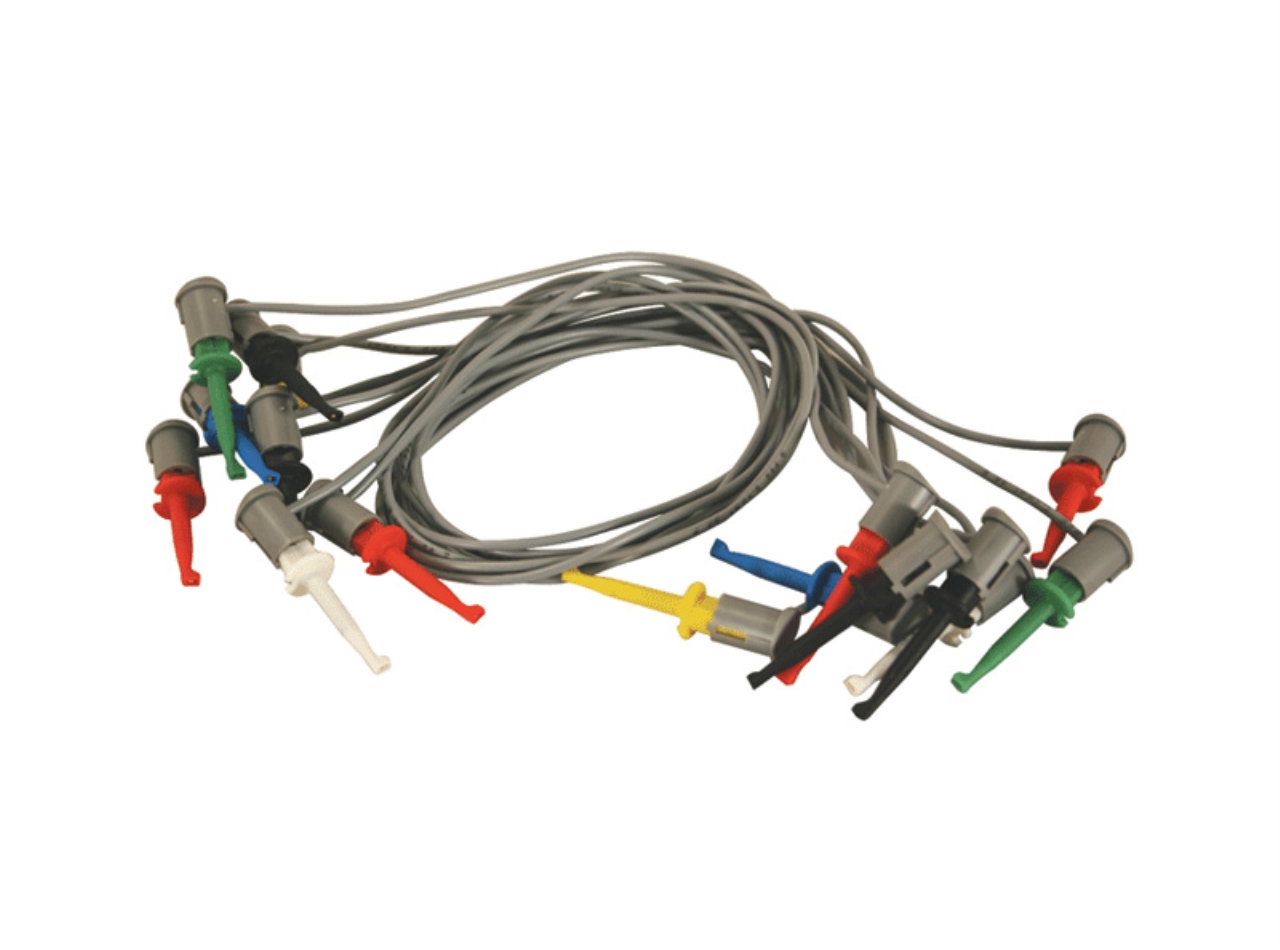

Eight (8) piece MiniPro test clip lead set. 8 leads in 6 colors. Leads are 50cm long. Convenient for all types of testing needs.
- Material: Body: Polyamide (Nylon); Contact: BeCu equivalent, Gold Plt
- Kit Consists of: 2 Black, 2 Red, 1 Yellow, 1 Green, 1 Blue, 1 White
Specifications
- Type
- Surface Mount Device (SMD)
- Connector A
- Surface Mount Device (SMD)
- Connector B
- MiniPro Test Clip
- Length
- 100 cm
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 6 A
- Max Voltage
- 150 V
- Wire Gauge
- 21 AWG
- Conductor Area
- 0.40 mm²
- Jacket Material
- PVC
- OD
- 2.0mm (0.079")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
