Product resources
Overview
Pincer style contact can grasp terminals up to 4 mm (0.16") in diameter and can be rotated for easy connection. Flexible shaft bendable to 90 deg. and 4 mm Banana Jack interconnect
- Materials: Body: Polyamide (Nylon) and Santoprene; Contact: Brass, Nickel Plt.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

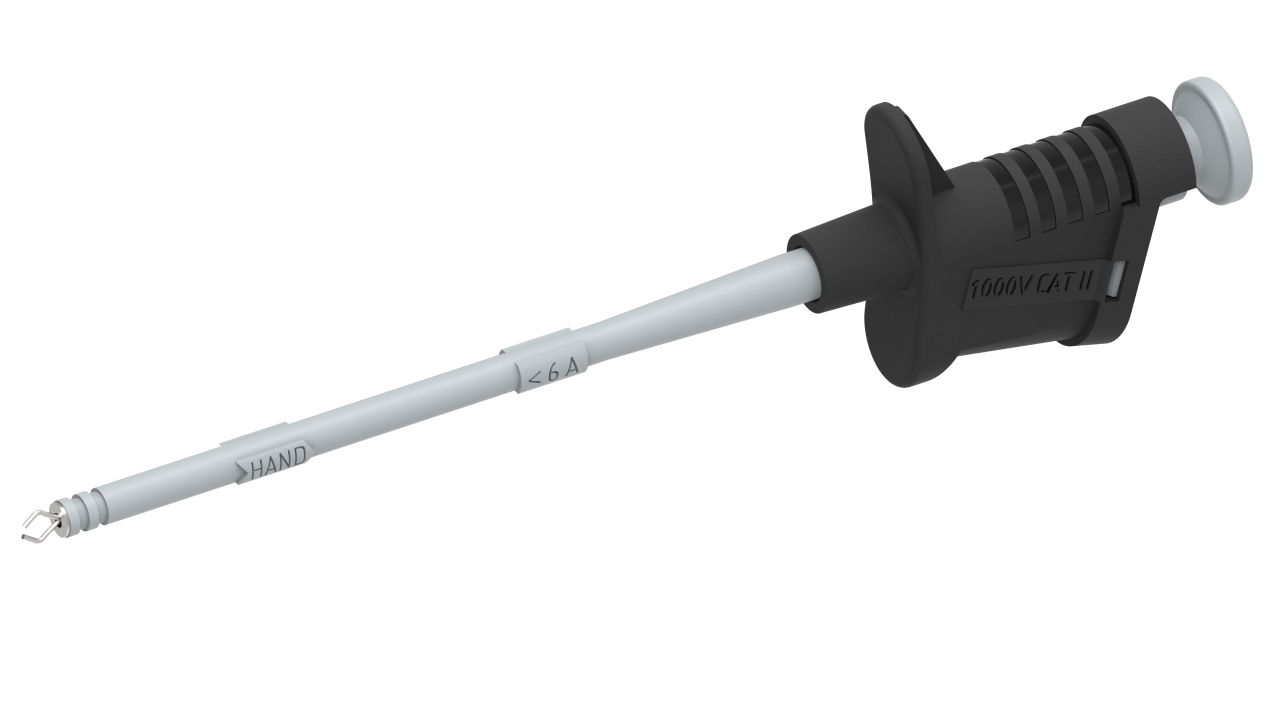

CT2399-0 | Flexible Pincer Clip - Black | $21.00 | Active Catalog | 1 Year | Flexible Pincer | Black | 1,000 V CAT II | 6 A | -20° to +80° C | EA |
 |
CT2399-2 | Flexible Pincer Clip - Red | $21.00 | Active Catalog | 1 Year | Flexible Pincer | Red | 1,000 V CAT II | 6 A | -20° to +80° C | EA |
Specifications
- Type
- Flexible Pincer
- Color
- Black
- Rated Voltage
- 1,000 V CAT II
- Max Current
- 6 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
