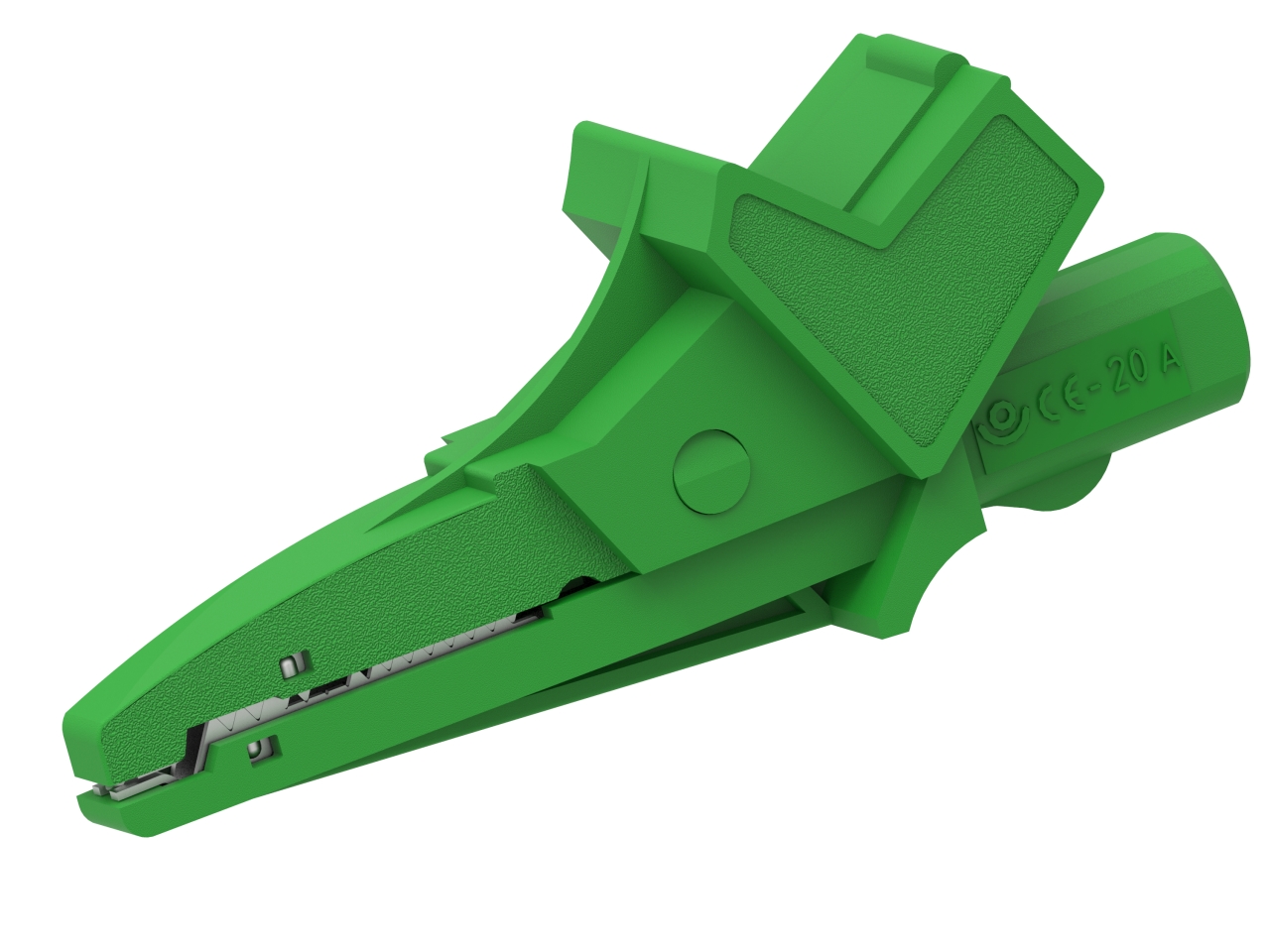

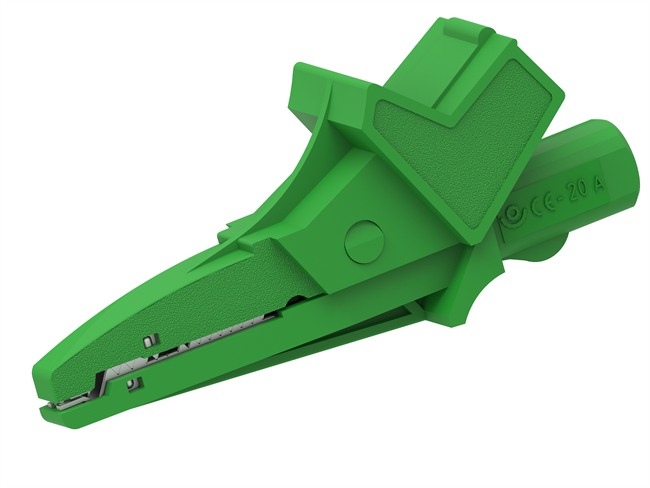

CT2392A-5

Overview

Models

Image	Model	Description	MSRP	Status	Warranty	Type	Color	Rated Voltage	Max Current	Operating Temperature	UOM
	CT2392A-0	Insulated Alligator, Large - Black	$9.35	Active Catalog	1 Year	Fully Insulated	Black	1,000 V CAT III / 600 V CAT IV	20 A	-20° to +80° C	EA
	CT2392A-2	Insulated Alligator, Large - Red	$9.35	Active Catalog	1 Year	Fully Insulated	Red	1,000 V CAT III / 600 V CAT IV	20 A	-20° to +80° C	EA
	CT2392A-4	Insulated Alligator, Large - Yellow	$9.35	Active Catalog	1 Year	Fully Insulated	Yellow	1,000 V CAT III / 600 V CAT IV	20 A	-20° to +80° C	EA
	CT2392A-5	Insulated Alligator, Large - Green	$9.35	Active Catalog	1 Year	Fully Insulated	Green	1,000 V CAT III / 600 V CAT IV	20 A	-20° to +80° C	EA
	CT2392A-6	Insulated Alligator, Large - Blue	$9.35	Active Catalog	1 Year	Fully Insulated	Blue	1,000 V CAT III / 600 V CAT IV	20 A	-20° to +80° C	EA
	CT2392A-9	Insulated Alligator, Large - White	$9.85	Special Order	1 Year	Fully Insulated	White	1,000 V CAT III / 600 V CAT IV	20 A	-20° to +80° C	EA

Specifications

Type

Fully Insulated

Color

Green

Rated Voltage

1,000 V CAT III / 600 V CAT IV

Max Current

20 A

Operating Temperature

-20° to +80° C

Export Control Classification Number (ECCN)

EAR99

REACH Compliance

Compliant

RoHS Compliance

RoHS 2 (2015/863/EU) Compliant

Schedule B Number

8536.90.4000

Country of Origin

France

Lead Time

56 days

See More Specifications

Product Drawing

Documents

• Product DrawingProduct Drawing
• REACH StatementCompany Document
• RoHS DirectiveCompany Document
• PFAS - Certificate of ComplianceCompany Document
