CT2268
CT2268 Series
Active Catalog4mm Digital Multimeter Probe
Modular Probe Kit - Basic, 2 Tips
$21.001 Year Warranty
Where to Buy
Checking distributor stock…
Overview

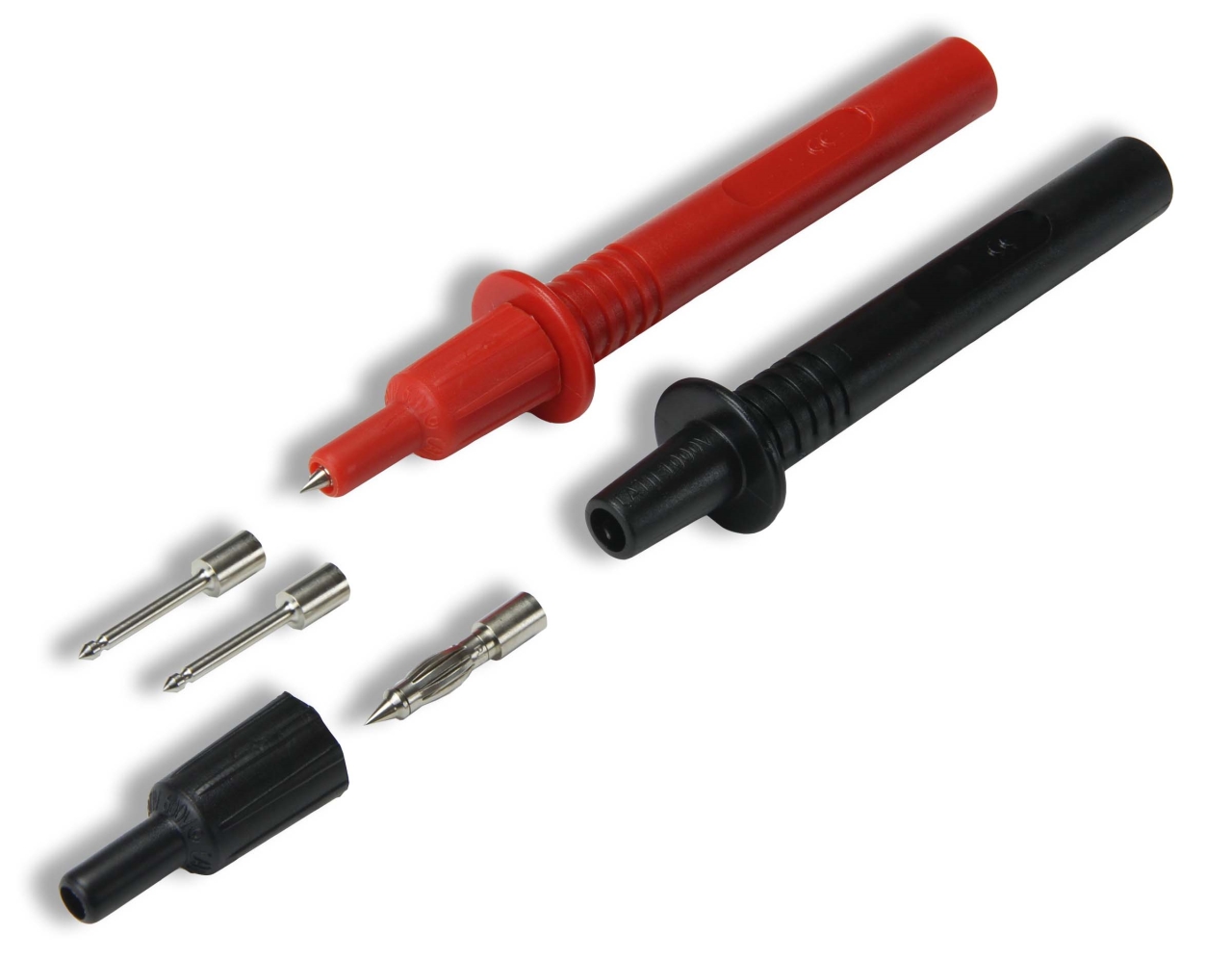

This DMM probe set combines the versatility of 2mm (.080") diameter smooth tips and 4mm banana plug tips into one probe set. Set comes as a pair Black and Red probe bodies together.
- Standard size probe bodies
- Black and Red pair
- Tip: Brass, Nickel plated
- Contact: (banana plug) BeCu, Nickel plated
- IC tip covers included (banana plug contacts) grey
Model CT2576-# Insulated Probe Sprung Hooks works with these probe bodies (banana plug contacts).
Attention: Per IEC 61010-031 Edition 1.1 2008-06, the probe rating is now 1000 V CAT II (was CAT III).
Specifications
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 16 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
