Overview
CT2248 Series insulated 4mm banana jack splices are designed to connect two sheathed banana plugs together. The series features durable nylon bodies, nickel-plated brass contacts, 36 A current rating, and 1000 V CAT III safety rating for DMM probe and test lead applications.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2248-0 | Insulated Splice, 4mm J - Black | $4.85 | Active Catalog | 1 Year | Splice | 1000 V CAT III | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |

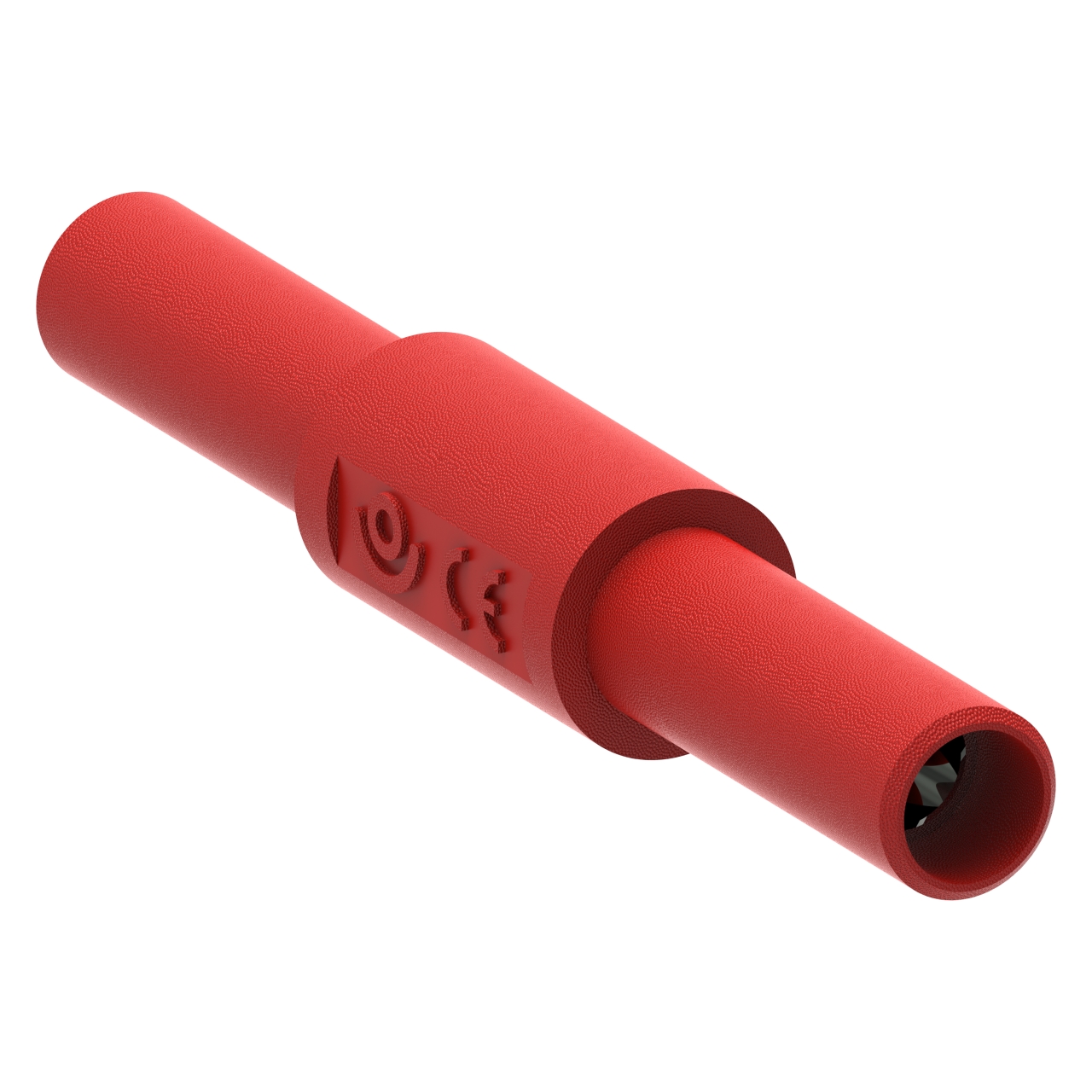

CT2248-2 | Insulated Splice, 4mm J - Red | $4.85 | Active Catalog | 1 Year | Splice | 1000 V CAT III | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
Specifications
- Type
- Splice
- Rated Voltage
- 1000 V CAT III
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
