Overview

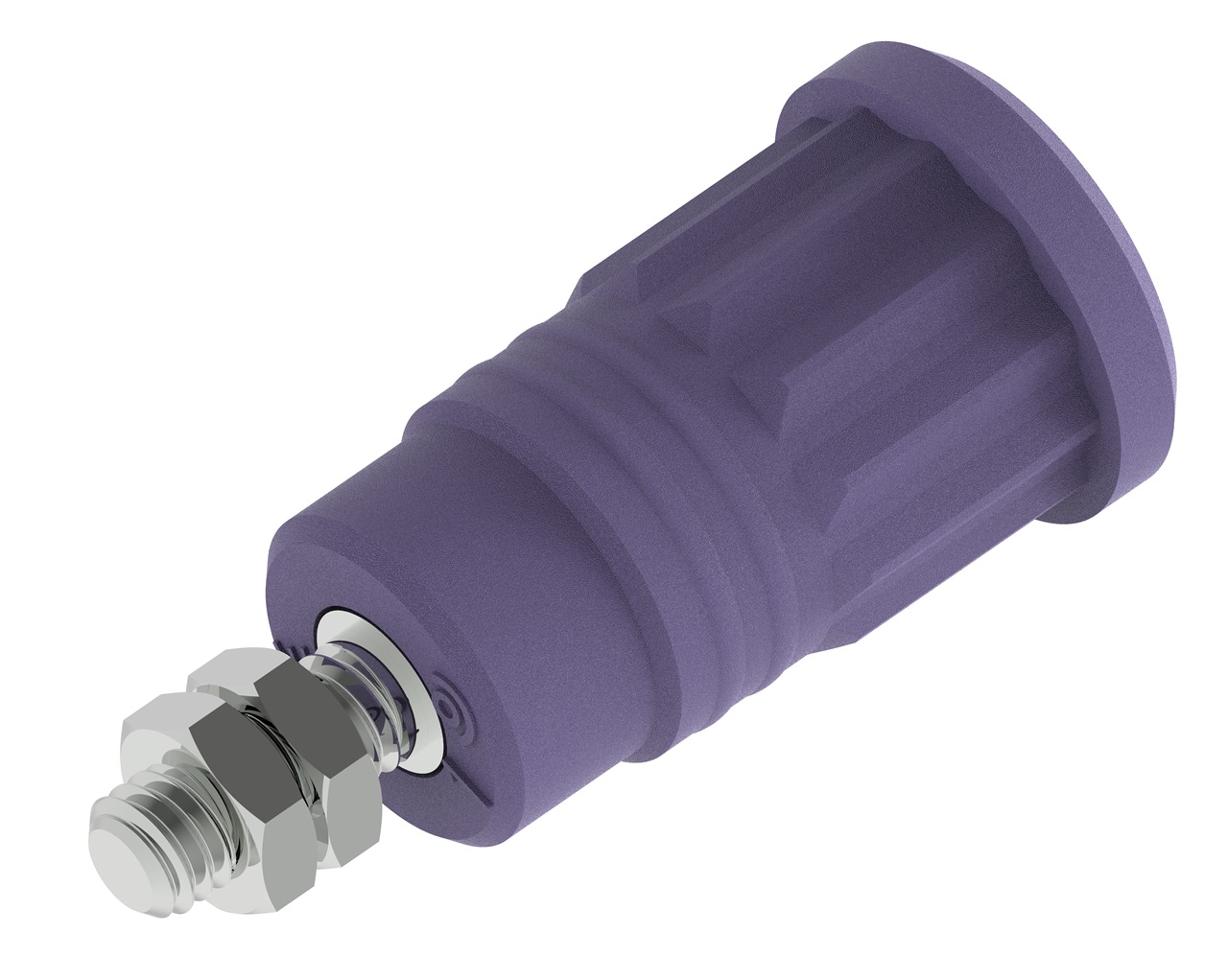

4 mm Sheathed Banana Jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV. Fast Push-in assembly in either metal or plastic panels.
Termination is with M4 threaded stud with 2 hex nuts.
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
- Minimum Panel Thickness: Plastic .080" (2mm); Metal .060" (1.5mm)
- Available in 9 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2243-0 | 4mm Safety Jack, M4 Stud - Push-In, Black | $3.00 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT2243-1 | 4mm Safety Jack, M4 Stud - Push-In, Brown | Discontinued | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Brown | Brass, Nickel Plated | Polyamide | 36 A | - | EA | |
 |
CT2243-2 | 4mm Safety Jack, M4 Stud - Push-in, Red | $3.00 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT2243-4 | 4mm Safety Jack, M4 Stud - Push-In, Yellow | $3.00 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Yellow | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT2243-5 | 4mm Safety Jack, M4 Stud - Push-In, Green | $3.00 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Green | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT2243-6 | 4mm Safety Jack, M4 Stud - Push-In, Blue | $3.00 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Blue | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT2243-7 | 4mm Safety Jack, M4 Stud - Push-In, Violet | Discontinued | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Violet | Brass, Nickel Plated | Polyamide | 36 A | - | EA | |
 |
CT2243-8 | 4mm Safety Jack, M4 Stud - Push-In, Gray | Discontinued | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Grey | Brass, Nickel Plated | Polyamide | 36 A | - | EA | |
 |
CT2243-9 | 4mm Safety Jack, M4 Stud - Push-In, White | $3.50 | Special Order | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | White | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 1000 V CAT III / 600 V CAT IV
- Color
- Violet
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
