Overview
Standard 4 mm binding post. Body of post grounds directly to mounting panel.
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2234-0 | 4mm Binding Post, UnIns - Black | $6.20 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 36 A | 1,200 V AC/DC | EA |
 |

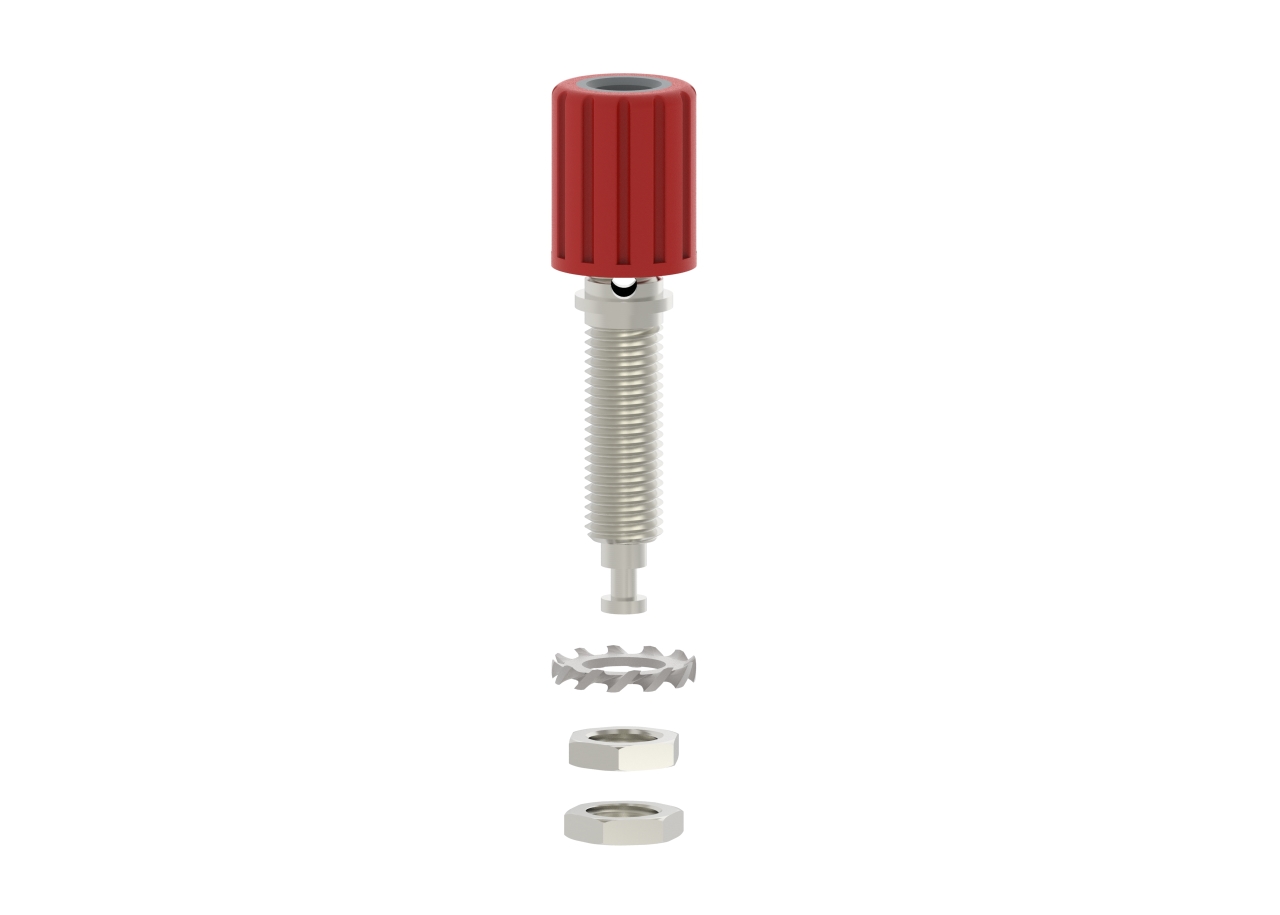

CT2234-2 | 4mm Binding Post, UnIns - Red | $6.20 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 36 A | 1,200 V AC/DC | EA |
Specifications
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- 1,200 V AC/DC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
