CT2232-0
CT2232 Series
Active CatalogBinding Post Panel Mount

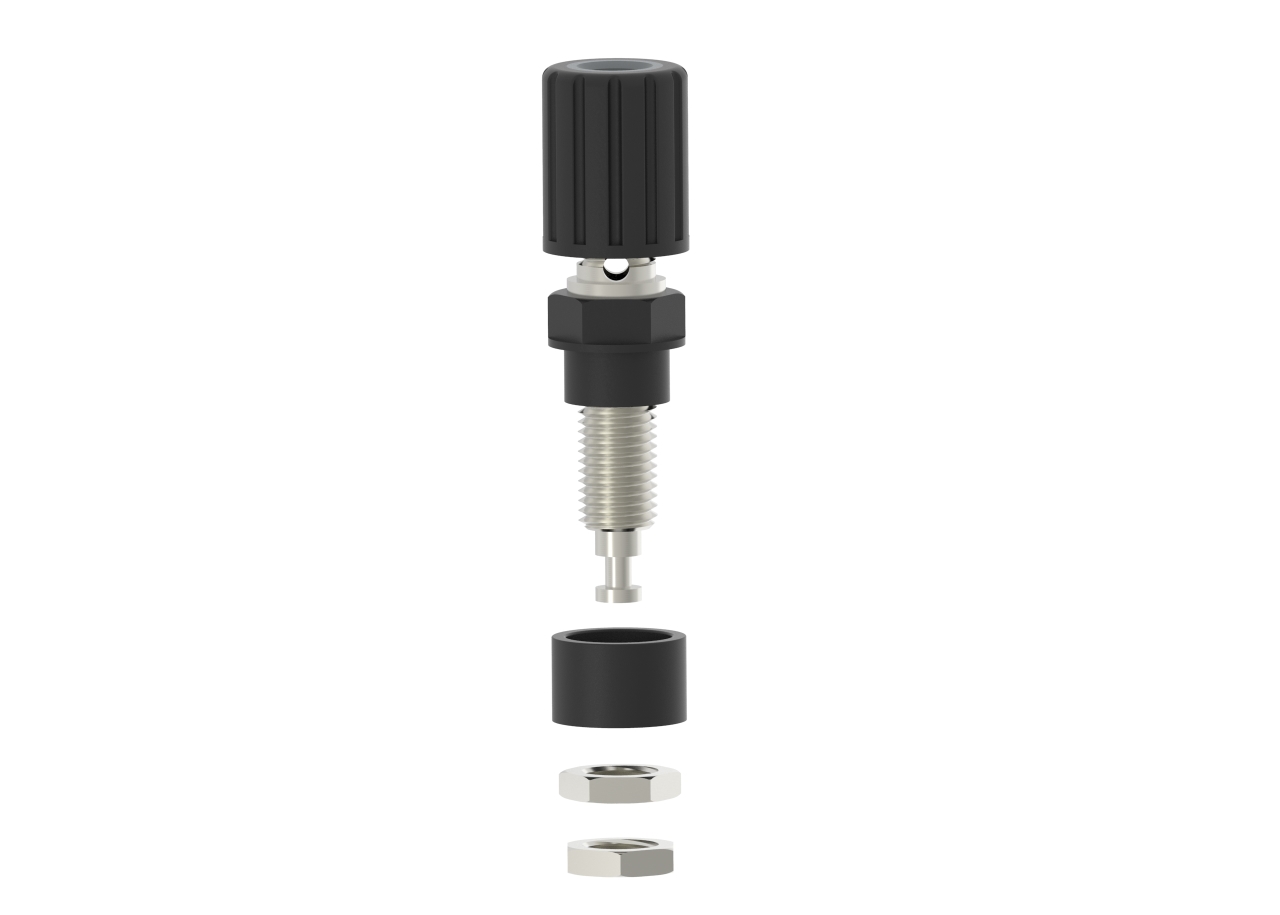

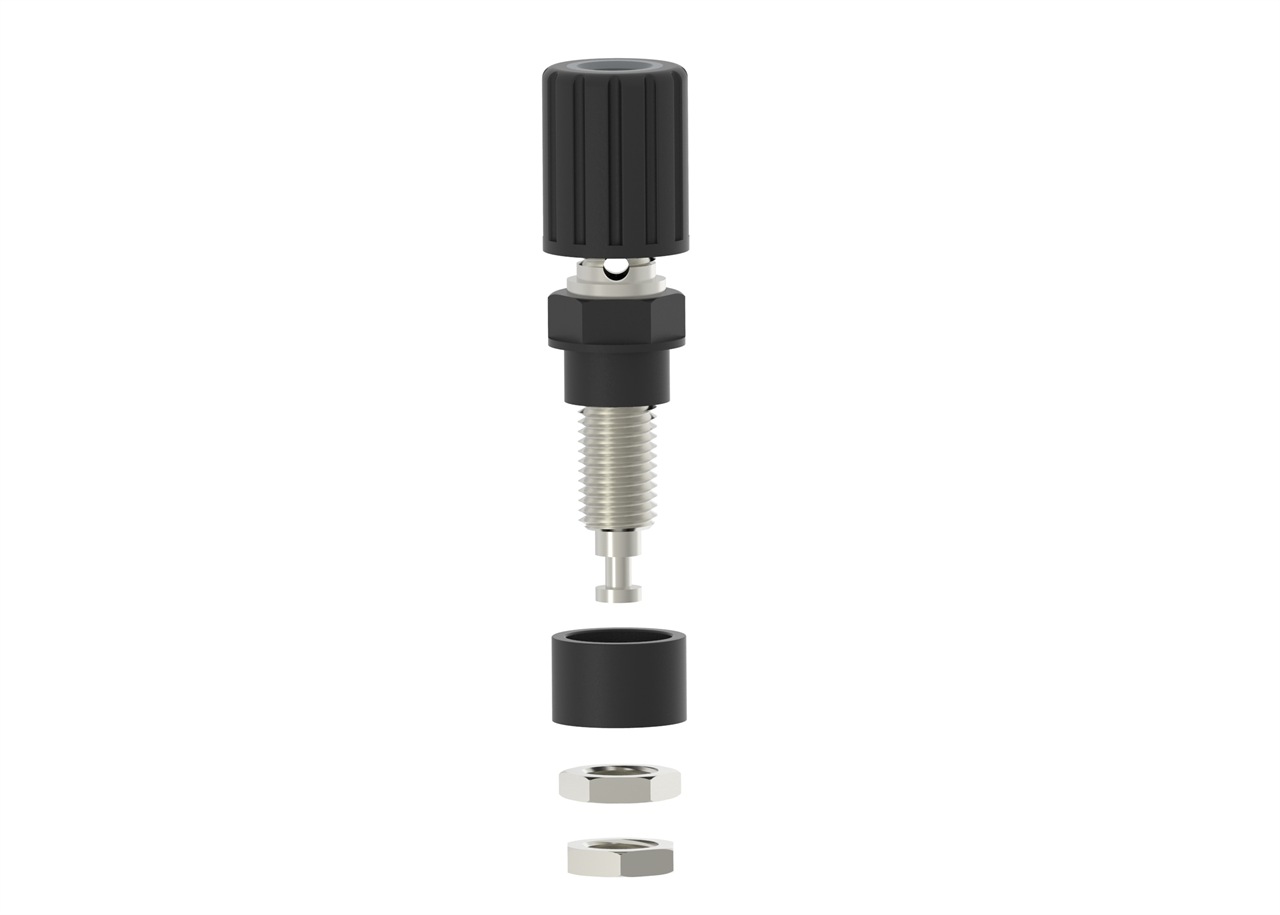

4mm Binding Post - Black
$7.951 Year Warranty
Where to Buy
Overview
Standard 4 mm insulated binding post, panel mount. Make connections five different ways.
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2232-0 | 4mm Binding Post - Black | $7.95 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | 36 A | 1,200 V AC/DC | EA |
 |
CT2232-2 | 4mm Binding Post - Red | $7.95 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | 36 A | 1,200 V AC/DC | EA |
 |
CT2232-4 | 4mm Binding Post - Yellow | $7.95 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | 36 A | 1,200 V AC/DC | EA |
 |
CT2232-5 | 4mm Binding Post - Green | $7.95 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | 36 A | 1,200 V AC/DC | EA |
 |
CT2232-6 | 4mm Binding Post - Blue | $7.95 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | 36 A | 1,200 V AC/DC | EA |
 |
CT2232-9 | 4mm Binding Post - White | $8.45 | Special Order | 1 Year | 30 VAC / 60 VDC | White | Brass, Nickel Plated | 36 A | 1,200 V AC/DC | EA |
Specifications
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Max Current
- 36 A
- Max Voltage
- 1,200 V AC/DC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
